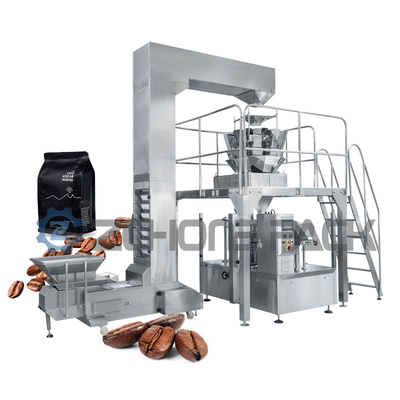

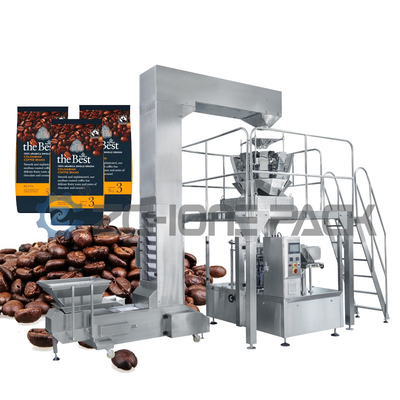

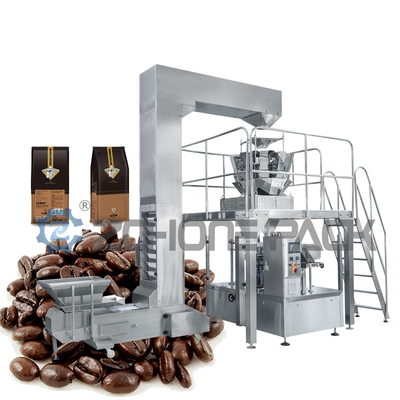

Stainless steel Multi - Station Coffee Packing Machine 1kg Coffee Product Filling Machine

Place of Origin Guangdong,China
Brand Name ZCHONE PACK
Certification ISO,CE
Model Number ZC-X8300
Minimum Order Quantity 1set
Price $18,000~$36,900
Packaging Details Standard export wooden case packaging
Delivery Time 15 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1set/15day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Multifunctional Packaging Machine Product Name Multi-station Packaging Machine With Multi-head Scale
Material Stainless Steel Warranty Period 1 Year
After Warranty Service1 Video Technical SupportOnline Support After Warranty Service2 Field Maintenance And Repair Service
Highlight

Stainless Steel Coffee Packing Machine

,

1kg Bag Coffee Packing Machine

You can tick the products you need and communicate with us in the message board.
Packing Machine Type
Granule Packing Machine
Liquid Packing Machine
Powder Packing Machine
Stand-Up Pouch Packing Machine
Vertical Packing Machine
Horizontal Packing Machine
Tea Bag Machine
Coffee Bean Packing Machine
Horizontal Packing Machine
Leave a Message
Packing Machine Type
Product Description

Coffee Packaging Machine Coffee Product Filling Machine

Machine Specification:

Item ZC-X8200 ZC-X8250 ZC-X8300
Packing speed MAX 60 bags/min,depending on the quality of the packaging film,packaging materials packaging weight etc.
Bag size (L)100-300mm (W)70-200mm (L)100-350mm (W)130-250mm (L)150-450mm (W)200-300mm
Bag type Pre-mede bags,Stand-up bag,four-side sealed bag,three-side sealed bag,special-shaped bag
Weighing range 10g-1kg 10g-2kg 10g-3kg

Measurement

accuracy

*≤±0.5~1%, depending on the measuring equipment & materials.
Maximum bag width 200mm 250mm 300mm
Gas consumption 0.8Mpa 0.3m3/min (Supply by user)
Total Powder/Voltage 2.5KW 380V 50/60Hz 2.5KW 380V 50/60Hz 3.7KW 380V 50/60Hz
Air compressor Not less than 1CBM
Dimension L1900*W1400*H1450 L1900*W1400*H1450 L2000*W1500*H1550
Machine Weight 1300kg 1400kg 1500kg
Work flow Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→ Auxiliary→Exhaust→Heat sealing→Forming and output products.

(We can provide you with exclusive packaging machine customization services according to your needs! Of course,If you need, we can also provide you with customized bag service)



An eight-station coffee packaging machine is a piece of equipment used for packaging coffee into various forms such as bags or capsules. The machine typically consists of eight stations that perform different functions during the packaging process, such as filling, sealing, and labeling.



Here is a brief overview of how an eight-station coffee packaging machine works:



Coffee beans or grounds are loaded into a hopper at the beginning of the process.



The beans or grounds are then weighed and measured using an electronic scale.



The measured coffee is then funneled into individual packaging units, such as bags or capsules.



The packaging units are then sealed using a heat sealer or other sealing method.



If necessary, the packaging units are then labeled with information such as the coffee blend, roast date, and origin.



The finished packaged coffee is then collected and prepared for shipment or distribution.



The use of an eight-station coffee packaging machine can help to increase efficiency and consistency in the coffee packaging process. By automating many of the steps involved in packaging coffee, manufacturers can produce a higher volume of product in a shorter amount of time, while also ensuring that each package is filled accurately and sealed securely.
