Eight Station Granule Packaging Machine Accurate Weighing 10 Head Combination Scale
Place of Origin | guangdong |
---|---|
Brand Name | ZCHONE PACK |
Certification | ISO,CE |
Model Number | Multi-Function Packaging Machine |
Minimum Order Quantity | 1sets |
Price | $18000 |
Packaging Details | Standard export wooden case packaging |
Delivery Time | 15 |
Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability | 1/sets/15 |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xType | Multi-Function Packaging Machine | Driven Type | Pneumatic |
---|---|---|---|
Place Of Origin | Guangdong, China | Warranty Of Core Components | 1 Year |
Main Function | Weighing Filling Sealing | Applicable Industries | Manufacturing Plant, Food & Beverage Factory, Other |
Function | FILLING, Labeling, Sealing | Packaging Type | Stand-up Pouch, Bags, Pouch |
Voltage | 110V 220V 380V 50hz/60hz | Core Components | Motor, Pressure Vessel, PLC, Gear, Bearing, Engine, Gearbox |
Highlight | Eight Station Granule Packaging Machine,Granule Packaging Machine Accurate Weighing,PLC Granule Packaging Machine |
Packing Machine Type | |
---|---|
Granule Packing Machine | |
Liquid Packing Machine | |
Powder Packing Machine | |
Stand-Up Pouch Packing Machine | |
Vertical Packing Machine | |
Horizontal Packing Machine | |
Tea Bag Machine | |
Coffee Bean Packing Machine | |
Horizontal Packing Machine |

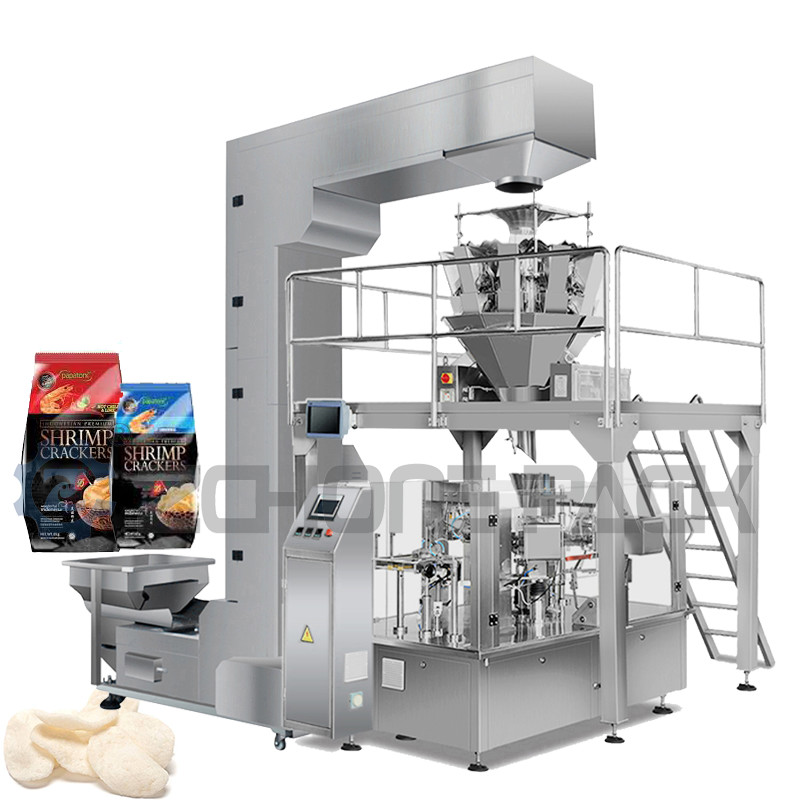

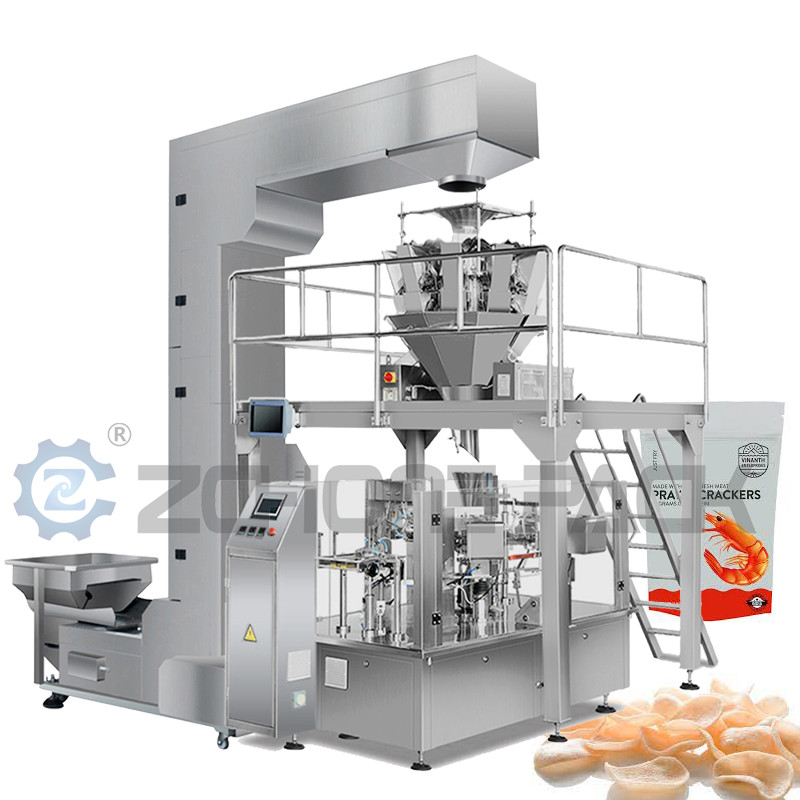

Accurate weighing 10-head combination scale eight-station packaging machine
Machine Specification:
Item | ZC-X8200 | ZC-X8250 | ZC-X8300 |
Packing speed | MAX 60 bags/min,depending on the quality of the packaging film,packaging materials packaging weight etc. | ||
Bag size | (L)100-300mm (W)70-200mm | (L)100-350mm (W)130-250mm | (L)150-450mm (W)200-300mm |
Bag type | Pre-mede bags,Stand-up bag,four-side sealed bag,three-side sealed bag,special-shaped bag | ||
Weighing range | 10g-1kg | 10g-2kg | 10g-3kg |
Measurement accuracy |
*≤±0.5~1%, depending on the measuring equipment & materials. | ||
Maximum bag width | 200mm | 250mm | 300mm |
Gas consumption | 0.8Mpa 0.3m3/min (Supply by user) | ||
Total Powder/Voltage | 2.5KW 380V 50/60Hz | 2.5KW 380V 50/60Hz | 3.7KW 380V 50/60Hz |
Air compressor | Not less than 1CBM | ||
Dimension | L1900*W1400*H1450 | L1900*W1400*H1450 | L2000*W1500*H1550 |
Machine Weight | 1300kg | 1400kg | 1500kg |
Work flow | Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→ Auxiliary→Exhaust→Heat sealing→Forming and output products. | ||
Applicable scope | Granular type: crystal monosodium glutamate, granular drug, capsule, seeds, chemicals, sugar, chicken essence, melon seeds, nut, pesticide, fertilizer, etc |
(We can provide you with exclusive packaging machine customization services according to your needs! Of course,If you need, we can also provide you with customized bag service)
The eight-station packaging machine is an efficient automatic packaging equipment, which can quickly pack products into packaging bags with consistent specifications, and can realize metering and weighing during the packaging process.

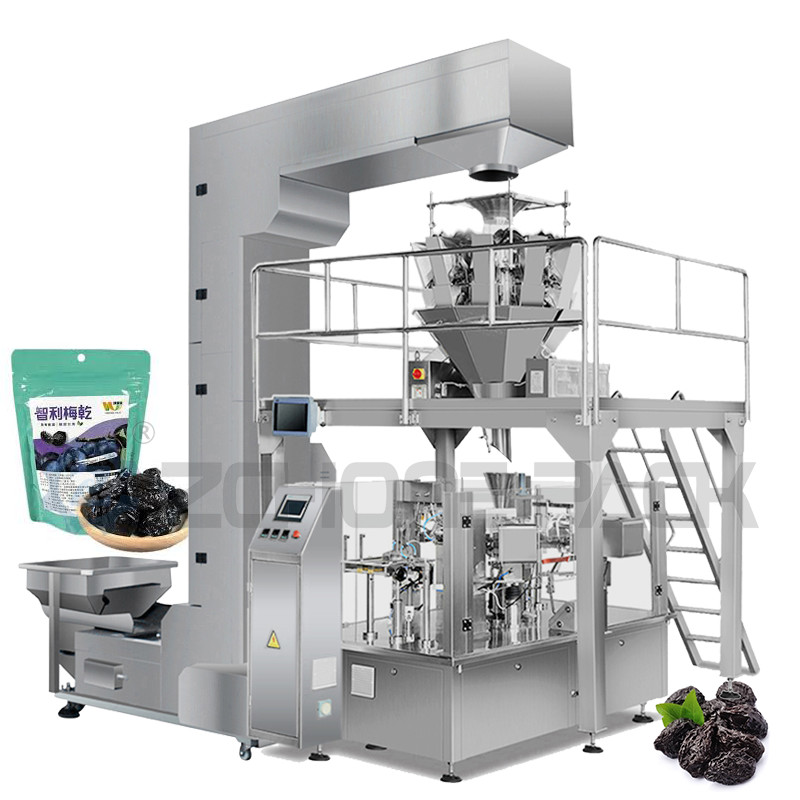

First, we need to put the prune pellets into the hopper of the packaging machine. The 10-head combination scale configured on the packaging machine can automatically measure and weigh according to the preset weight to ensure that the number and weight of prunes in each bag are the same. In this way, after the packaging is completed, we can get a batch of prune granule packaging bags with uniform quality and specifications.
Secondly, the eight-station packaging machine can pack 8 packaging bags at the same time, which greatly improves the packaging efficiency. During the packaging process, we can freely set the size and shape of the packaging bag as needed to meet different needs.
In addition, the eight-station packaging machine also has functions such as automatic waste discharge and automatic alarm to ensure the smooth and safe packaging process. If there is an abnormal situation, the packaging machine will automatically stop and send an alarm so that the problem can be dealt with in time.
In general, the eight-station packaging machine is a very practical automatic packaging equipment, which can greatly improve packaging efficiency and product quality, and can be set freely according to different needs. In terms of packaging prune granules, the eight-station packaging machine equipped with 10 combined scales can realize measurement and weighing, which perfectly meets our needs.
