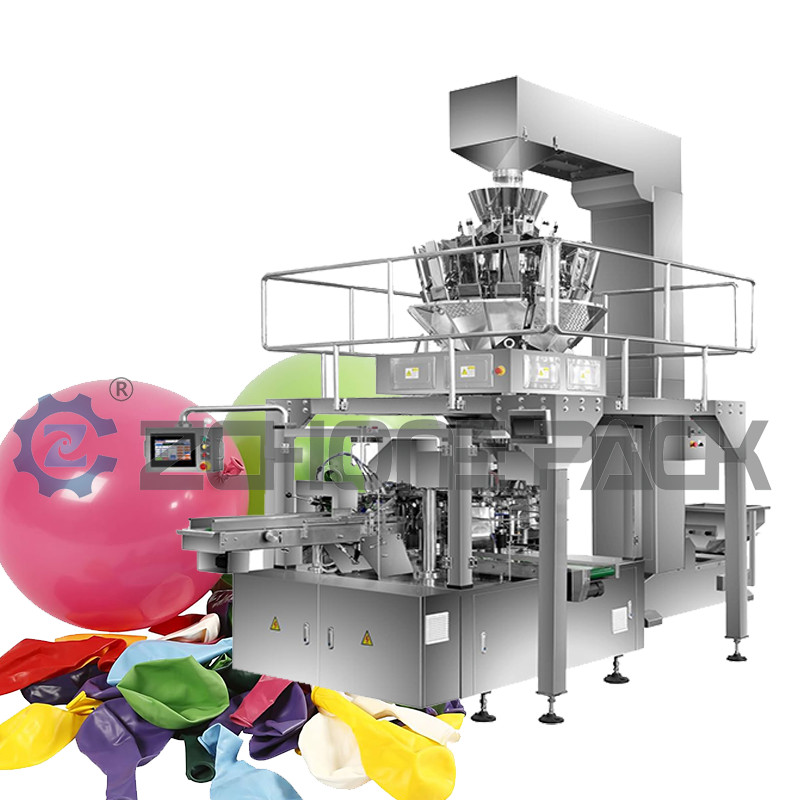

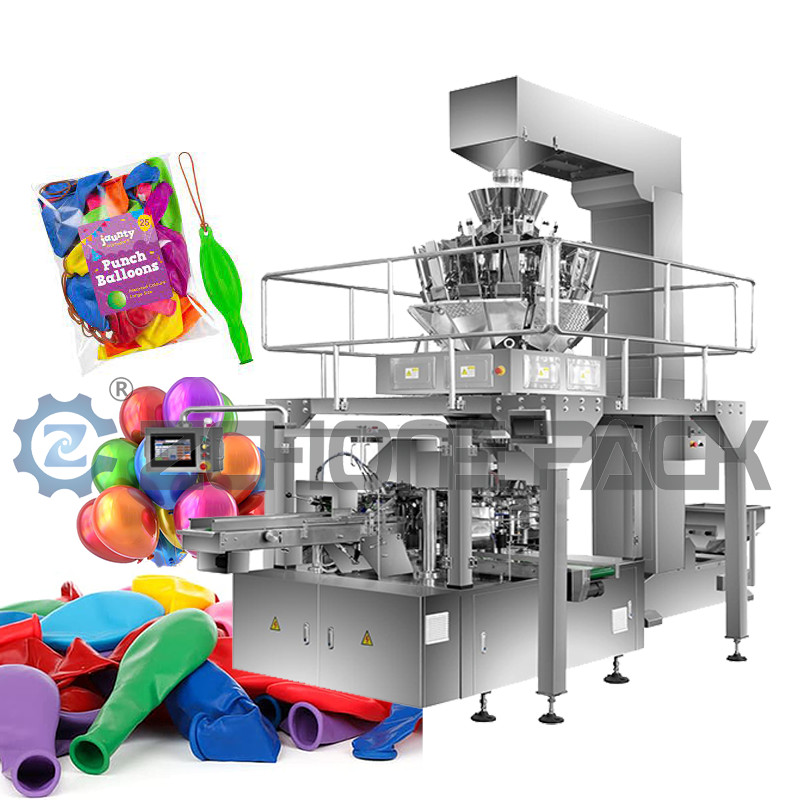

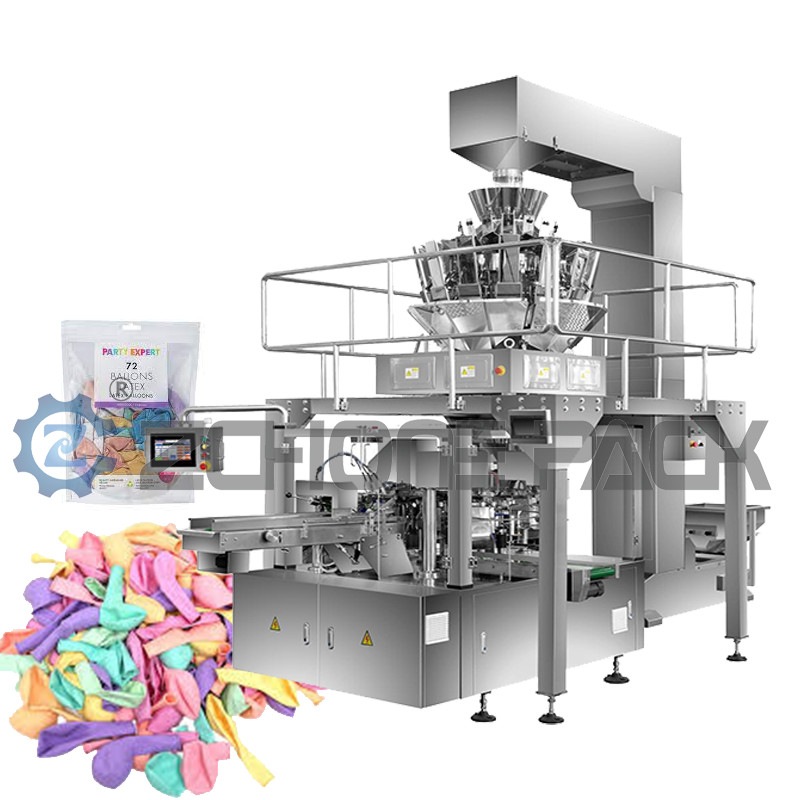

High Speed Balloon Packaging Machine Multi Station Quantitative Automatic

  • High Speed Balloon Packaging Machine Multi Station Quantitative Automatic
  • High Speed Balloon Packaging Machine Multi Station Quantitative Automatic
  • High Speed Balloon Packaging Machine Multi Station Quantitative Automatic
  • High Speed Balloon Packaging Machine Multi Station Quantitative Automatic
Place of Origin Guangdong,China
Brand Name ZCHONE PACK
Certification ISO，CE
Model Number ZC-X8200
Minimum Order Quantity 1set
Price $18000
Packaging Details Standard export wooden case packaging
Delivery Time 15
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1/sets/15day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Pet Cat Litter Packing Machine Automatic Grade Automatic
Application Cat Litter, Cat Food, Dog Food, Fish Feed And Other Particulate Matter Packaging Type Bags,Pouch
Dimension(L*W*H) L1900*W1400*H1450 Voltage 220V 380V 50/60HZ
Highlight

Multi Station Balloon Packaging Machine

,

Automatic Balloon Packaging Machine
You can tick the products you need and communicate with us in the message board.
Packing Machine Type
Granule Packing Machine
Liquid Packing Machine
Powder Packing Machine
Stand-Up Pouch Packing Machine
Vertical Packing Machine
Horizontal Packing Machine
Tea Bag Machine
Coffee Bean Packing Machine
Horizontal Packing Machine
Leave a Message
Packing Machine Type
Product Description

Balloon Packaging Machine High-Speed Multi-Station Quantitative Automatic Packaging



The multi-station balloon packaging machine can be designed to automatically and quantitatively pack uninflated balloons into packaging bags. The following is the general workflow and features of this packaging machine:



Balloon supply: A multi-station balloon packer obtains uninflated balloons from a storage area or supply system. These balloons can be supplied to the working station of the packaging machine one by one through conveyor belts, vibrators or other devices.



Balloon filling: At each work station, the machine will automatically place an uninflated balloon into the position of the bag to be packed. Usually, the machine will precisely control the number of balloons to achieve quantitative packaging.



Bag supply: The multi-station balloon packaging machine is also connected to a bag supply system. Bags are automatically fed to each work station, ready to receive balloons.



Bag sealing: After the balloon enters the bag, the machine will seal and seal the bag. Heat sealing, lamination or other sealing techniques may be used, depending on the material and design of the bag.



Detection and Rejection: Multi-station balloon packaging machines are often equipped with detection systems to detect abnormalities during the packaging process. If problems are found, the machine can automatically reject or alarm to ensure packaging quality.



Conveying and discharge: The completed packaging bags will be conveyed to the outlet through conveyor belts or other means, and can then be discharged onto packaging boxes or pallets for storage and transportation.



Machine Specification:

Item ZC-X8200 ZC-X8250 ZC-X8300
Packing speed MAX 60 bags/min,depending on the quality of the packaging film,packaging materials packaging weight etc.
Bag size (L)100-300mm (W)70-200mm (L)100-350mm (W)130-250mm (L)150-450mm (W)200-300mm
Bag type Pre-mede bags,Stand-up bag,four-side sealed bag,three-side sealed bag,special-shaped bag
Weighing range 10g-1kg 10g-2kg 10g-3kg

Measurement

accuracy

 *≤±0.5~1%, depending on the measuring equipment & materials.
Maximum bag width 200mm 250mm 300mm
Gas consumption 0.8Mpa 0.3m3/min (Supply by user)
Total Powder/Voltage 2.5KW 380V 50/60Hz 2.5KW 380V 50/60Hz 3.7KW 380V 50/60Hz
Air compressor Not less than 1CBM
Dimension L1900*W1400*H1450 L1900*W1400*H1450 L2000*W1500*H1550
Machine Weight 1300kg 1400kg 1500kg
Work flow Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→ Auxiliary→Exhaust→Heat sealing→Forming and output products.
Applicable scope Granular type: crystal monosodium glutamate, granular drug, capsule, seeds, chemicals, sugar, chicken essence, melon seeds, nut, pesticide, fertilizer, etc

(We can provide you with exclusive customized services according to your needs!)



High Speed Balloon Packaging Machine Multi Station Quantitative Automatic 0

High Speed Balloon Packaging Machine Multi Station Quantitative Automatic 1



The packaging process includes bag loading - coding - bag opening - blanking 1 (vibration) - blanking 2 (secondary blanking/dust removal) - cleaning - sealing 1 (exhaust) - sealing 2 - output.
