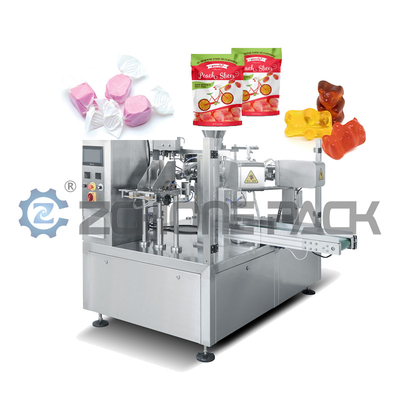

Sweet Way Of Automated Production The Working Principle And Functions Of Candy Packaging Machines

  • Sweet Way Of Automated Production The Working Principle And Functions Of Candy Packaging Machines
  • Sweet Way Of Automated Production The Working Principle And Functions Of Candy Packaging Machines
  • Sweet Way Of Automated Production The Working Principle And Functions Of Candy Packaging Machines
Place of Origin Guangdong，China
Brand Name ZCHONE PACK
Certification ISO，CE
Model Number ZC-8200
Minimum Order Quantity 1set
Price $18000
Packaging Details Standard export wooden case packaging
Delivery Time 15
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1/sets/15day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Automatic Packaging Machine Product Name Food Granule Multi-station Packaging Machine
Dimension(L*W*H) L1900*W1400*H1450 Weight (KG) 1300
Voltage 110V 220V 380V 50hz/60hz Production Capacity 20bag/min, 50bag/min, 30bag/min
Highlight

Automated Production Candy Packaging Machines

,

Automated Production Packaging Machines
You can tick the products you need and communicate with us in the message board.
Packing Machine Type
Granule Packing Machine
Liquid Packing Machine
Powder Packing Machine
Stand-Up Pouch Packing Machine
Vertical Packing Machine
Horizontal Packing Machine
Tea Bag Machine
Coffee Bean Packing Machine
Horizontal Packing Machine
Leave a Message
Packing Machine Type
Product Description

Automatic Packaging Machine Vacuum Packaging Equipment Packaging Machine Manufacturer

Machine Specification:

Item ZC-X8200 ZC-X8250 ZC-X8300
Packing speed MAX 60 bags/min,depending on the quality of the packaging film,packaging materials packaging weight etc.
Bag size (L)100-300mm (W)70-200mm (L)100-350mm (W)130-250mm (L)150-450mm (W)200-300mm
Bag type Pre-mede bags,Stand-up bag,four-side sealed bag,three-side sealed bag,special-shaped bag
Weighing range 10g-1kg 10g-2kg 10g-3kg

Measurement

accuracy

 *≤±0.5~1%, depending on the measuring equipment & materials.
Maximum bag width 200mm 250mm 300mm
Gas consumption 0.8Mpa 0.3m3/min (Supply by user)
Total Powder/Voltage 2.5KW 380V 50/60Hz 2.5KW 380V 50/60Hz 3.7KW 380V 50/60Hz
Air compressor Not less than 1CBM
Dimension L1900*W1400*H1450 L1900*W1400*H1450 L2000*W1500*H1550
Machine Weight 1300kg 1400kg 1500kg
Work flow Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→ Auxiliary→Exhaust→Heat sealing→Forming and output products.
Applicable scope Granular type: crystal monosodium glutamate, granular drug, capsule, seeds, chemicals, sugar, chicken essence, melon seeds, nut, pesticide, fertilizer, etc

(We can provide you with exclusive customized services according to your needs!)

A candy packaging machine is a machine used to automatically package candy. It is often used to individually package candies into individual packages for easier sales and distribution.



The working principle of the candy packaging machine usually includes the following steps:



Candy Supply: Candy is usually supplied to the packaging machine in the form of a supply chain. They can be supplied to the machine via a conveyor system or other automated supply mechanism.



Distribution and positioning: The candy packaging machine distributes the candies into the appropriate locations for packaging. This may involve grouping candies individually or in predetermined combinations.



Encapsulation: Candy packaging machines use automated systems to place candies on packaging materials and encapsulate them into the appropriate form, such as bags, boxes, or wrappers.



Sealing and Cutting: Once the candy is placed on the wrapper, the candy wrapper closes the wrapper using heat sealing or other sealing methods to ensure the candy stays fresh and sealed. The machine may then cut the packaging material as needed to form individual packaging units.



Arrangement and sorting: Completely packaged candies are usually arranged and sorted by conveyor belts or other devices for subsequent packaging or distribution.

Sweet Way Of Automated Production The Working Principle And Functions Of Candy Packaging Machines 0
