Balloon Packaging Machine Multifunctional Granule Bagging Machine Fully Automatic
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Automatic Packaging Machine | Product Name | Food Granule Multi-station Packaging Machine |
|---|---|---|---|
| Dimension(L*W*H) | L1900*W1400*H1450 | Weight (KG) | 1300 |
| Voltage | 110V 220V 380V 50hz/60hz | Production Capacity | 20bag/min, 50bag/min, 30bag/min |
| Highlight | Fully Automatic Granule Bagging Machine,Balloon Packaging Machine,Multifunctional Granule Bagging Machine |
||
You can tick the products you need and communicate with us in the message board.
| Packing Machine Type | |
|---|---|
| Granule Packing Machine | |
| Liquid Packing Machine | |
| Powder Packing Machine | |
| Stand-Up Pouch Packing Machine | |
| Vertical Packing Machine | |
| Horizontal Packing Machine | |
| Tea Bag Machine | |
| Coffee Bean Packing Machine | |
| Horizontal Packing Machine |
Product Description

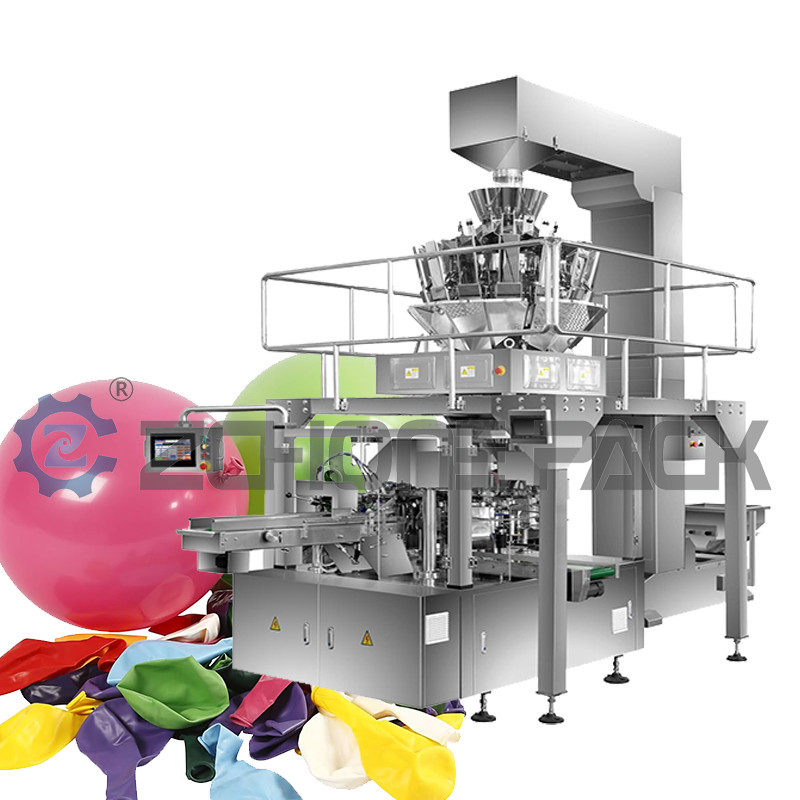

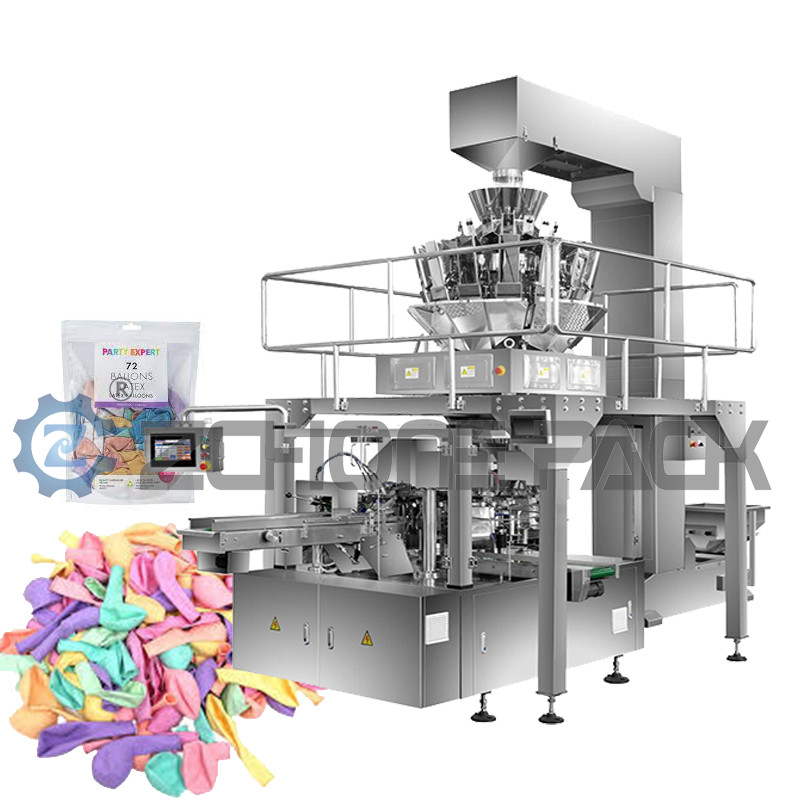

Balloon Packaging Machine Multifunctional Granule Bagging Machine Fully Automatic
The balloon packaging machine is a machine specially used for packaging balloons. It is commonly used in the commercial balloon manufacturing and sales industry. The main function of the balloon packaging machine is to automatically pack balloons into packaging bags and seal the packaging bags.
Balloon packaging machines usually have the following characteristics and working principles:
Automatic filling: The balloon packaging machine can automatically receive balloons from the feeding scale and put them into packaging bags. This is usually achieved using a conveyor system paired with a combination scale, which accurately dose the balloons into the bags.
Seal the bag: Once the balloon is placed in the bag, the balloon packaging machine automatically seals the bag. This is usually done by heat sealing or other sealing techniques to ensure that the bag has a secure seal.
Versatility: Some balloon packaging machines can also offer multiple functions, such as automatic counting, metering, and labeling. These features make it easier for operators to manage and track the number of packed balloons.
Automated control: Balloon packaging machines usually have automated control systems that can monitor and control the balloon filling and packaging process. These systems ensure operational accuracy and efficiency and reduce the need for manual intervention.
The use of balloon packaging machines can improve the efficiency of balloon manufacturing and sales, reduce the workload of manual operations, and ensure that the balloons will not be damaged or leaked during packaging and transportation. It is particularly useful in large-scale balloon production and sales.
Machine Specification:
| Item | ZC-X8200 | ZC-X8250 | ZC-X8300 |
| Packing speed | MAX 60 bags/min,depending on the quality of the packaging film,packaging materials packaging weight etc. | ||
| Bag size | (L)100-300mm (W)70-200mm | (L)100-350mm (W)130-250mm | (L)150-450mm (W)200-300mm |
| Bag type | Pre-mede bags,Stand-up bag,four-side sealed bag,three-side sealed bag,special-shaped bag | ||
| Weighing range | 10g-1kg | 10g-2kg | 10g-3kg |
|
Measurement accuracy |
*≤±0.5~1%, depending on the measuring equipment & materials. | ||
| Maximum bag width | 200mm | 250mm | 300mm |
| Gas consumption | 0.8Mpa 0.3m3/min (Supply by user) | ||
| Total Powder/Voltage | 2.5KW 380V 50/60Hz | 2.5KW 380V 50/60Hz | 3.7KW 380V 50/60Hz |
| Air compressor | Not less than 1CBM | ||
| Dimension | L1900*W1400*H1450 | L1900*W1400*H1450 | L2000*W1500*H1550 |
| Machine Weight | 1300kg | 1400kg | 1500kg |
| Work flow | Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→ Auxiliary→Exhaust→Heat sealing→Forming and output products. | ||
| Applicable scope | Granular type: crystal monosodium glutamate, granular drug, capsule, seeds, chemicals, sugar, chicken essence, melon seeds, nut, pesticide, fertilizer, etc | ||
(We can provide you with exclusive customized services according to your needs!)
