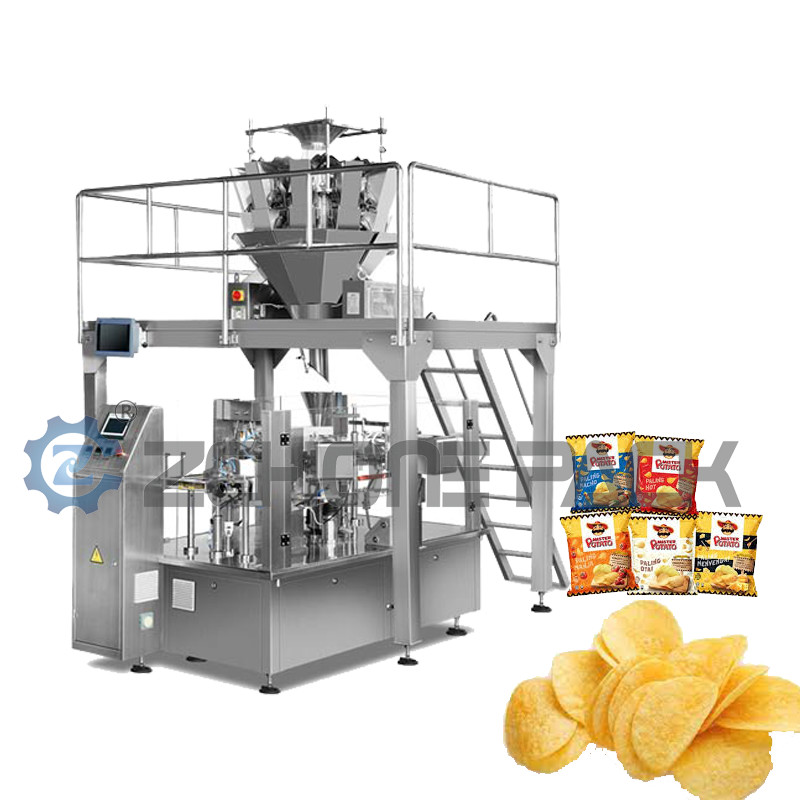

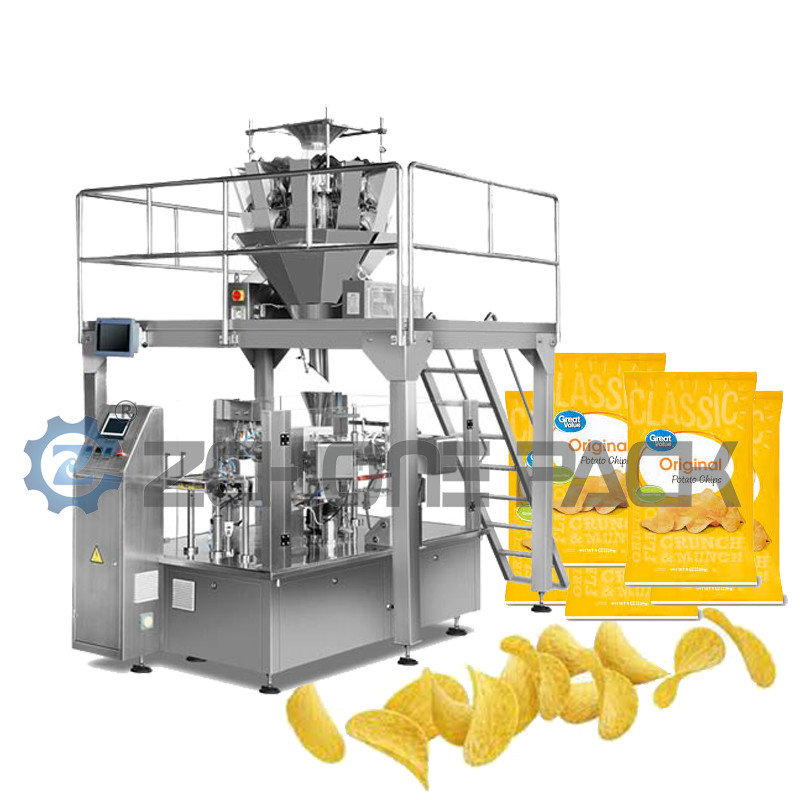

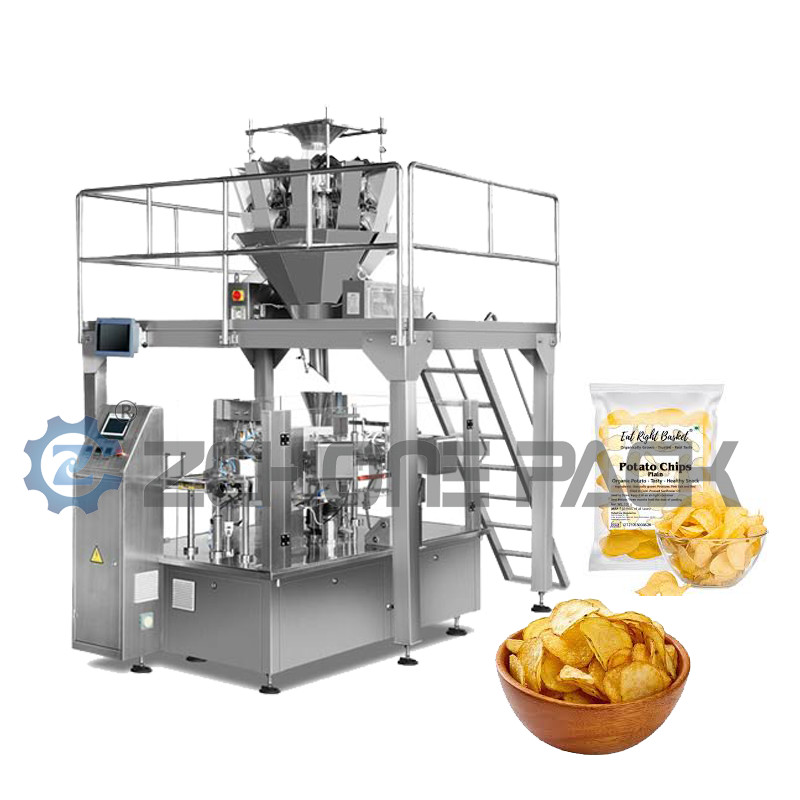

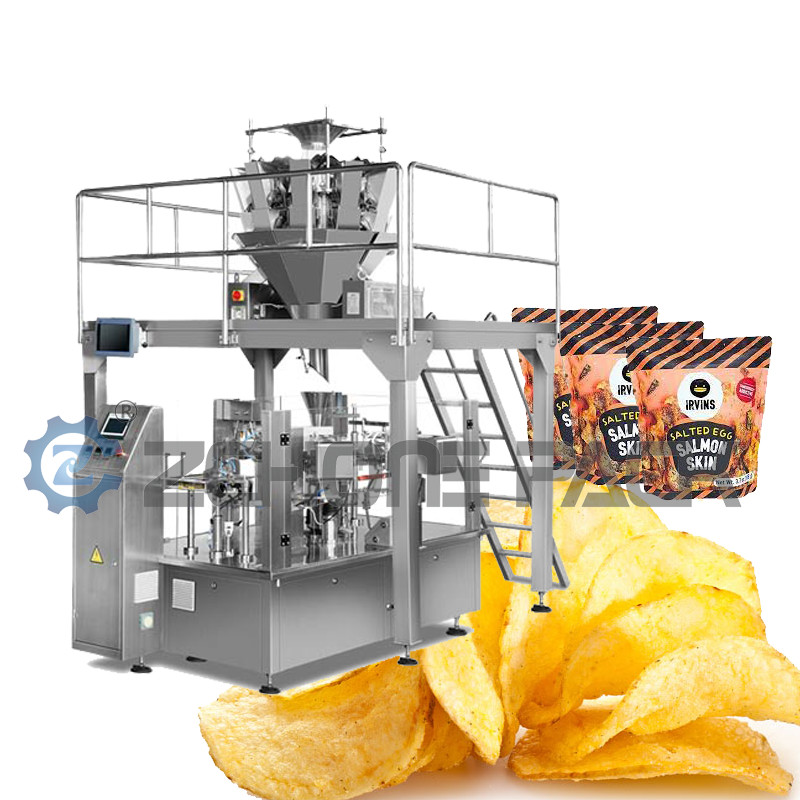

Food Automatic Packaging Machine Snacks Potato Chips French Fries Automatic Bagging Machine

Place of Origin Guangdong,China
Brand Name ZCHONE PACK
Certification ISO,CE
Model Number ZC-8200
Minimum Order Quantity 1set
Price $18000
Packaging Details Standard export wooden case packaging
Delivery Time 15
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1/sets/15day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Automatic Packaging Machine Product Name Food Granule Multi-station Packaging Machine
Dimension(L*W*H) L1900*W1400*H1450 Weight (KG) 1300
Voltage 110V 220V 380V 50hz/60hz Production Capacity 20bag/min, 50bag/min, 30bag/min
You can tick the products you need and communicate with us in the message board.
Packing Machine Type
Granule Packing Machine
Liquid Packing Machine
Powder Packing Machine
Stand-Up Pouch Packing Machine
Vertical Packing Machine
Horizontal Packing Machine
Tea Bag Machine
Coffee Bean Packing Machine
Horizontal Packing Machine
Leave a Message
Packing Machine Type
Product Description

Food Automatic Packaging Machine Snacks Potato Chips French Fries Automatic Bagging Machine





Potato chips and puffed food packaging machine is a device used to automatically package potato chips and other puffed foods. These machines are commonly used in food processing plants and food packaging industries to improve production efficiency and ensure product hygiene and quality.



The working principle of potato chip puffed food packaging machine usually includes the following steps:



Weighing and filling: First, portions of potato chips or puffed food are accurately weighed and placed into the packaging machine's feeding system.



Packaging material supply: The packaging machine provides appropriate packaging materials such as plastic film rolls or bags.



Sealing: After the potato chips or puffed food are placed in the packaging material, the packaging machine will automatically seal, usually using heat sealing technology to ensure that the packaging bag is sealed.



Label and date printing: The packaging machine can also use inkjet or thermal transfer printing technology to print the necessary information such as the product's label and production date on the packaging bag.



Packaging inspection: During the entire packaging process, the packaging machine will conduct some inspections, such as metal detection, gas detection, etc., to ensure the safety and quality of the product.



Potato chip puffed food packaging machines are typically highly automated, capable of processing large volumes of product at high speeds while maintaining consistent packaging quality and hygiene standards. These machines are widely used in the food processing industry to meet the market demand for potato chips and puffed food.



Machine Specification:

Item ZC-X8200 ZC-X8250 ZC-X8300
Packing speed MAX 60 bags/min,depending on the quality of the packaging film,packaging materials packaging weight etc.
Bag size (L)100-300mm (W)70-200mm (L)100-350mm (W)130-250mm (L)150-450mm (W)200-300mm
Bag type Pre-mede bags,Stand-up bag,four-side sealed bag,three-side sealed bag,special-shaped bag
Weighing range 10g-1kg 10g-2kg 10g-3kg

Measurement

accuracy

*≤±0.5~1%, depending on the measuring equipment & materials.
Maximum bag width 200mm 250mm 300mm
Gas consumption 0.8Mpa 0.3m3/min (Supply by user)
Total Powder/Voltage 2.5KW 380V 50/60Hz 2.5KW 380V 50/60Hz 3.7KW 380V 50/60Hz
Air compressor Not less than 1CBM
Dimension L1900*W1400*H1450 L1900*W1400*H1450 L2000*W1500*H1550
Machine Weight 1300kg 1400kg 1500kg
Work flow Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→ Auxiliary→Exhaust→Heat sealing→Forming and output products.
Applicable scope Granular type: crystal monosodium glutamate, granular drug, capsule, seeds, chemicals, sugar, chicken essence, melon seeds, nut, pesticide, fertilizer, etc

(We can provide you with exclusive customized services according to your needs!)
