Flower Tea Health Tea Herbs Tonic Jujube Berries Wolfberry Figs Luo Han Guo Lotus Seed Lily Packaging Machine

Place of Origin Guangdong,China
Brand Name ZCHONE PACK
Certification ISO,CE
Model Number ZC-8200
Minimum Order Quantity 1set
Price $36900
Packaging Details Standard export wooden case packaging
Delivery Time 15
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1/sets/15day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Automatic Packaging Machine Product Name Food Granule Multi-station Packaging Machine
Dimension(L*W*H) L1900*W1400*H1450 Weight (KG) 1300
Voltage 110V 220V 380V 50hz/60hz Production Capacity 20bag/min, 50bag/min, 30bag/min
You can tick the products you need and communicate with us in the message board.
Packing Machine Type
Granule Packing Machine
Liquid Packing Machine
Powder Packing Machine
Stand-Up Pouch Packing Machine
Vertical Packing Machine
Horizontal Packing Machine
Tea Bag Machine
Coffee Bean Packing Machine
Horizontal Packing Machine
Leave a Message
Packing Machine Type
Product Description

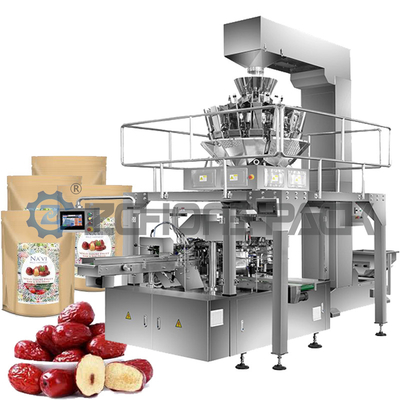

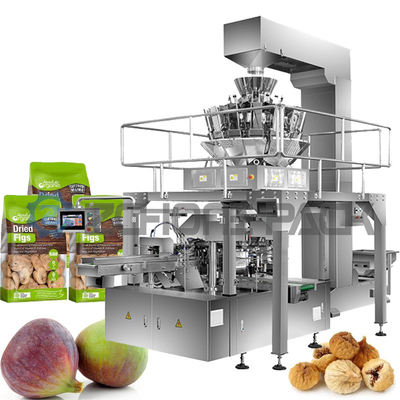

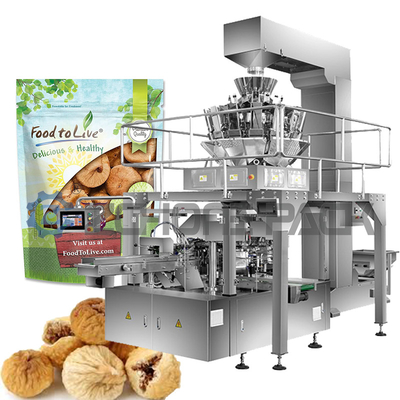

Flower Tea Health Tea Herbs Tonic Jujube Berries Wolfberry Figs Luo Han Guo Lotus Seed Lily Packaging Machine



The eight-station fig packaging machine is a device used to automatically package figs. The following is a general description of the eight-station packaging machine:



Function: The eight-station packaging machine is designed to automate the fig packaging process. It can complete tasks such as weighing, packaging, sealing, etc.



Packaging process: First, the figs will be transported to the feeding port of the packaging machine.



Eight-station: This packaging machine has eight working positions, each of which can perform different packaging tasks at the same time. This increases production efficiency and reduces packaging time.



Weighing: The packaging machine can be equipped with a multi-head combination scale for automatic weighing



Packaging and sealing: The weighed figs will be placed in pre-prepared bags, and then the machine will seal them to ensure the freshness of the product.



Automation: An eight-station packaging machine is an automated device that uses sensors, electric devices, and computational control systems to perform a variety of packaging tasks. It operates according to preset parameters and is able to accommodate different specifications and sizes of figs.



Efficiency and production capacity: The eight-station packaging machine has high packaging efficiency and production capacity. It can handle large quantities of figs and complete the packaging process in a short time, improving production efficiency and reducing labor costs.



It should be noted that the above description is based on the general working principle of an eight-station packaging machine. Actual devices may vary, and specific specifications and features may vary by manufacturer and model.



Machine Specification:

Item ZC-X8200 ZC-X8250 ZC-X8300
Packing speed MAX 60 bags/min,depending on the quality of the packaging film,packaging materials packaging weight etc.
Bag size (L)100-300mm (W)70-200mm (L)100-350mm (W)130-250mm (L)150-450mm (W)200-300mm
Bag type Pre-mede bags,Stand-up bag,four-side sealed bag,three-side sealed bag,special-shaped bag
Weighing range 10g-1kg 10g-2kg 10g-3kg

Measurement

accuracy

*≤±0.5~1%, depending on the measuring equipment & materials.
Maximum bag width 200mm 250mm 300mm
Gas consumption 0.8Mpa 0.3m3/min (Supply by user)
Total Powder/Voltage 2.5KW 380V 50/60Hz 2.5KW 380V 50/60Hz 3.7KW 380V 50/60Hz
Air compressor Not less than 1CBM
Dimension L1900*W1400*H1450 L1900*W1400*H1450 L2000*W1500*H1550
Machine Weight 1300kg 1400kg 1500kg
Work flow Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→ Auxiliary→Exhaust→Heat sealing→Forming and output products.
Applicable scope Granular type: crystal monosodium glutamate, granular drug, capsule, seeds, chemicals, sugar, chicken essence, melon seeds, nut, pesticide, fertilizer, etc

(We can provide you with exclusive customized services according to your needs!)
