xType | Automatic Packaging Machine | Product Name | Food Granule Multi-station Packaging Machine |
---|---|---|---|
Dimension(L*W*H) | L1900*W1400*H1450 | Weight (KG) | 1300 |
Voltage | 110V 220V 380V 50hz/60hz | Production Capacity | 20bag/min, 50bag/min, 30bag/min |
Highlight | Food Grade Bowl Elevator,Wild Vegetable Packing Machine,304 Stainless Steel Bowl Elevator |
Packing Machine Type | |
---|---|
Granule Packing Machine | |
Liquid Packing Machine | |
Powder Packing Machine | |
Stand-Up Pouch Packing Machine | |
Vertical Packing Machine | |
Horizontal Packing Machine | |
Tea Bag Machine | |
Coffee Bean Packing Machine | |
Horizontal Packing Machine |

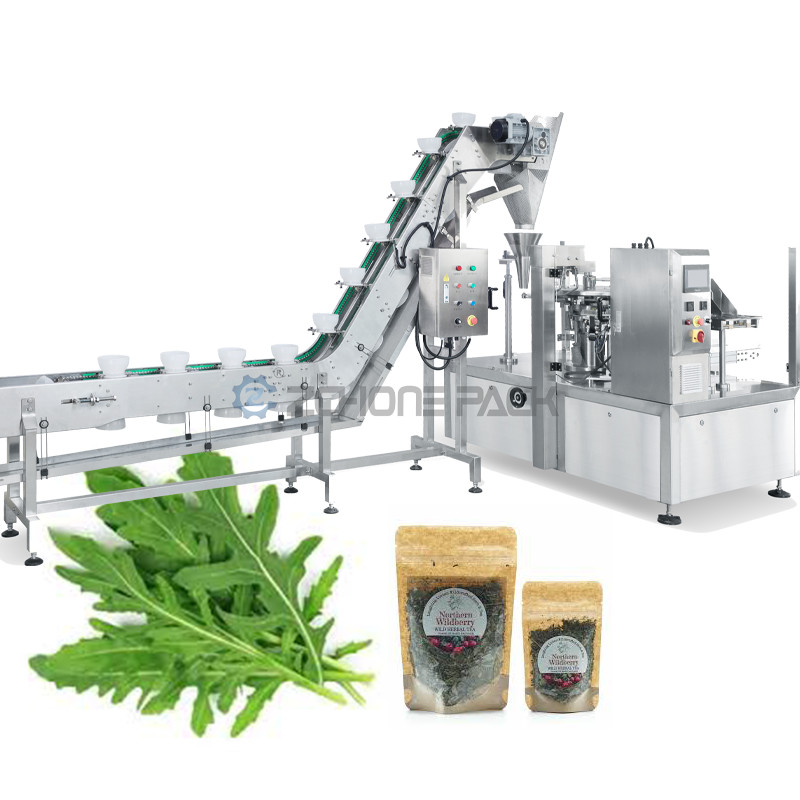

Food Grade 304 Stainless Steel Bowl Elevator Wild Vegetable Packing Machine
The wild vegetable packaging machine can choose to use a bowl elevator to unload materials to achieve fully automatic packaging. The bowl elevator is a common material conveying equipment, which is usually used to lift materials from the receiving end to a certain height and then convey them to the next process through a pipeline or other means.
When it comes to wild vegetable packaging machines and bowl elevator unloading, here is some further information:
Types of packaging machines: There are many types of wild vegetable packaging machines to choose from, including automatic weighing packaging machines, automatic counting packaging machines, automatic bagging machines, etc. You can choose the appropriate equipment according to the required packaging method and production requirements.

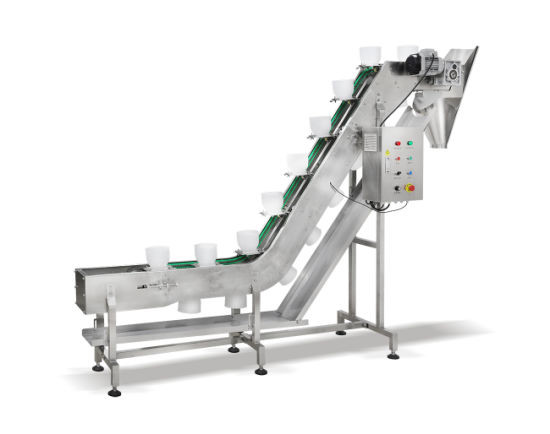

Working principle of bowl elevator: The bowl elevator usually consists of a chain or belt with a bucket container. The container moves in a cycle along a fixed track under the push of the chain or belt. When the container on the bowl elevator is put into the wild vegetables, the wild vegetables will be lifted to a specified height by the movement of the chain or belt and released at a specified position.
Packaging process: In the working area of the wild vegetable packaging machine, different devices and systems can be configured as needed. These include conveyor belts for transferring vegetables from the bowl elevator to the next process; sorting devices for checking and removing unqualified vegetables; weighing devices for ensuring that the weight of vegetables in each package meets the requirements; and packaging material supply systems for providing packaging bags or other packaging materials.
Automated control: Vegetable packaging machines are usually equipped with automated control systems, including sensors, programming logic, and human-machine interfaces. Sensors are used to detect and monitor the position, weight, and other parameters of vegetables. Programming logic automates the packaging process by controlling the movement and operation of mechanical devices. The human-machine interface can be used to operate and monitor the entire system, as well as adjust packaging parameters and equipment settings.
Advantages and applications: Using vegetable packaging machines and bowl elevators for unloading can bring multiple advantages. First, automated packaging can improve production efficiency and reduce labor costs and labor requirements. Second, the automated process can improve packaging consistency and accuracy and reduce human errors. In addition, automated packaging systems can also improve hygiene standards and reduce the risk of cross-contamination.
Machine Specification:
Item | ZC-X8200 | ZC-X8250 | ZC-X8300 |
Packing speed | MAX 60 bags/min,depending on the quality of the packaging film,packaging materials packaging weight etc. | ||
Bag size | (L)100-300mm (W)70-200mm | (L)100-350mm (W)130-250mm | (L)150-450mm (W)200-300mm |
Bag type | Pre-mede bags,Stand-up bag,four-side sealed bag,three-side sealed bag,special-shaped bag | ||
Weighing range | 10g-1kg | 10g-2kg | 10g-3kg |
Measurement accuracy |
*≤±0.5~1%, depending on the measuring equipment & materials. | ||
Maximum bag width | 200mm | 250mm | 300mm |
Gas consumption | 0.8Mpa 0.3m3/min (Supply by user) | ||
Total Powder/Voltage | 2.5KW 380V 50/60Hz | 2.5KW 380V 50/60Hz | 3.7KW 380V 50/60Hz |
Air compressor | Not less than 1CBM | ||
Dimension | L1900*W1400*H1450 | L1900*W1400*H1450 | L2000*W1500*H1550 |
Machine Weight | 1300kg | 1400kg | 1500kg |
Work flow | Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→ Auxiliary→Exhaust→Heat sealing→Forming and output products. | ||
Applicable scope | Granular type: crystal monosodium glutamate, granular drug, capsule, seeds, chemicals, sugar, chicken essence, melon seeds, nut, pesticide, fertilizer, etc |
(We can provide you with exclusive customized services according to your needs!)
