Automatic Quantitative Counting And Loading Big Bag Packaging Machine For Small Bag Products

Place of Origin Guangdong,China
Brand Name ZCHONE PACK
Certification ISO,CE
Model Number ZC-X8300
Minimum Order Quantity 1set
Price $18,000~$36,900
Packaging Details Standard export wooden case packaging
Delivery Time 15 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1set/15day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Multifunctional Packaging Machine Product Name Multi-station Packaging Machine With Multi-head Scale
Material Stainless Steel Warranty Period 1 Year
After Warranty Service1 Video Technical SupportOnline Support After Warranty Service2 Field Maintenance And Repair Service
Highlight

Automatic Big Bag Packaging Machine

,

Quantitative Counting Big Bag Packaging Machine

,

Big Bag Packaging Machine

You can tick the products you need and communicate with us in the message board.
Packing Machine Type
Granule Packing Machine
Liquid Packing Machine
Powder Packing Machine
Stand-Up Pouch Packing Machine
Vertical Packing Machine
Horizontal Packing Machine
Tea Bag Machine
Coffee Bean Packing Machine
Horizontal Packing Machine
Leave a Message
Packing Machine Type
Product Description

Automatic Quantitative Counting and Loading Big Bag Packaging Machine for Small Bag Products



The fully automatic small bag packaging machine is an automated equipment used to pack the already packed small bag products into large bags and seal them. This type of packaging machine is widely used in industrial production to improve packaging efficiency and ensure packaging quality and hygiene standards.



The following are some features and functions of the fully automatic small bag packaging machine:



Automated bagging and sealing process, reducing manual intervention and improving production efficiency.

The size and shape of the packaging bag can be adjusted as needed.

Accurate metering system to ensure the exact amount of product in each packaging bag.

Sealing system to ensure that the product in the packaging bag will not leak or be contaminated.

Optional printing or labeling system for marking production date, product information, etc.

Safety protection device to ensure the safety of operators.

This type of fully automatic small bag packaging machine is widely used in various industries to improve production efficiency and packaging quality, reduce labor costs, and is one of the important equipment in modern industrial production.



Eight-station packing machine Machine Specification:



Item ZC-X8200 ZC-X8250 ZC-X8300
Packing speed MAX 60 bags/min,depending on the quality of the packaging film,packaging materials packaging weight etc.
Bag size (L)100-300mm (W)70-200mm (L)100-350mm (W)130-250mm (L)150-450mm (W)200-300mm
Bag type Pre-mede bags,Stand-up bag,four-side sealed bag,three-side sealed bag,special-shaped bag
Weighing range 10g-1kg 10g-2kg 10g-3kg

Measurement

accuracy

*≤±0.5~1%, depending on the measuring equipment & materials.
Maximum bag width 200mm 250mm 300mm
Gas consumption 0.8Mpa 0.3m3/min (Supply by user)
Total Powder/Voltage 2.5KW 380V 50/60Hz 2.5KW 380V 50/60Hz 3.7KW 380V 50/60Hz
Air compressor Not less than 1CBM
Dimension L1900*W1400*H1450 L1900*W1400*H1450 L2000*W1500*H1550
Machine Weight 1300kg 1400kg 1500kg

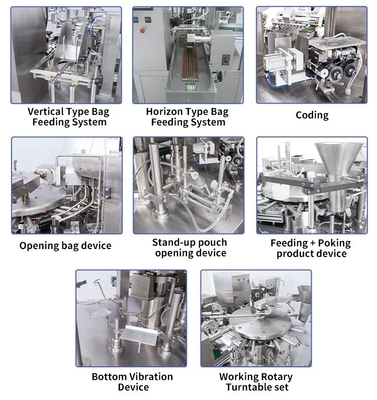

Work flow Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→ Auxiliary→Exhaust→Heat sealing→Forming and output products.

(We can provide you with exclusive customized services according to your needs!)
