Solid Packaging Machine Herbs Astragalus Figs Five Finger Nuts Nuts Pistachios

Place of Origin Guangdong,China
Brand Name ZCHONE PACK
Certification ISO,CE
Model Number ZC-X8300
Minimum Order Quantity 1set
Price $18,000~$36,900
Packaging Details Standard export wooden case packaging
Delivery Time 15 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1set/15day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Multifunctional Packaging Machine Product Name Multi-station Packaging Machine With Multi-head Scale
Material Stainless Steel Warranty Period 1 Year
After Warranty Service1 Video Technical SupportOnline Support After Warranty Service2 Field Maintenance And Repair Service
Highlight

Solid Packaging Machine Nuts

,

Solid Packaging Machine Herbs

,

Solid Packaging Machine Pistachios

You can tick the products you need and communicate with us in the message board.
Packing Machine Type
Granule Packing Machine
Liquid Packing Machine
Powder Packing Machine
Stand-Up Pouch Packing Machine
Vertical Packing Machine
Horizontal Packing Machine
Tea Bag Machine
Coffee Bean Packing Machine
Horizontal Packing Machine
Leave a Message
Packing Machine Type
Product Description

Solid Packaging Machine Herbs Astragalus Figs Five Finger Nuts Nuts Pistachios

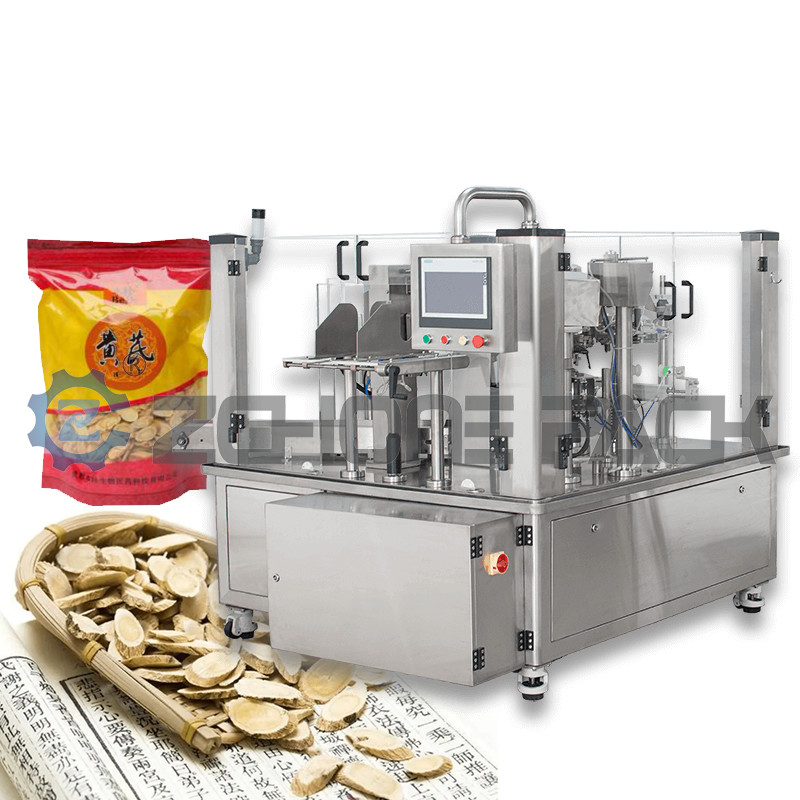

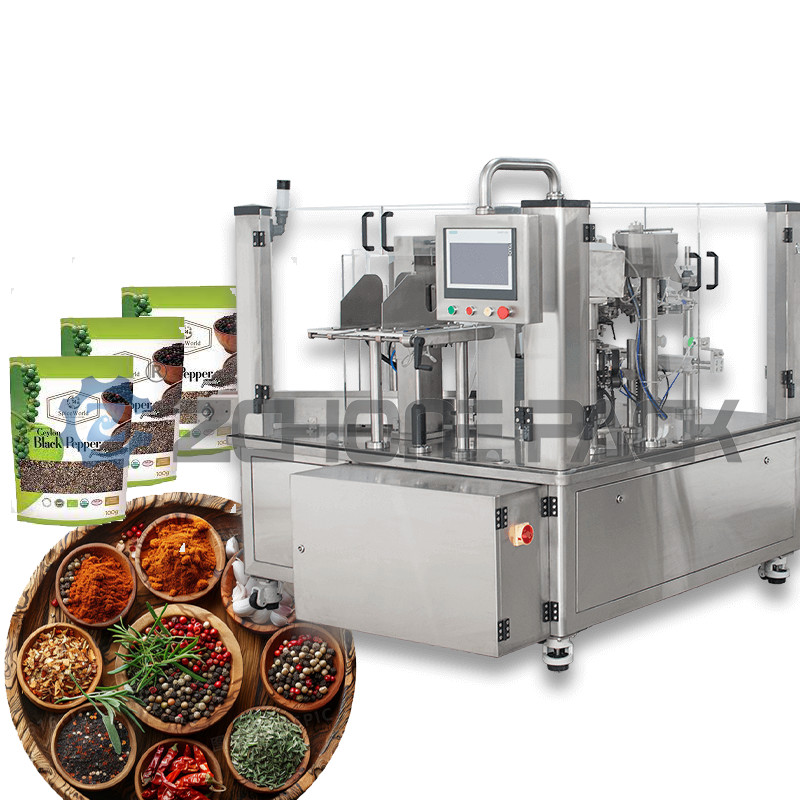

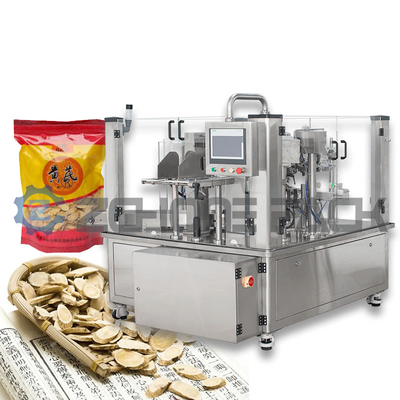

The multi-station packaging machine for Chinese herbal solid particles is a device specially used for packaging Chinese herbal solid particles. Its multi-station design allows multiple processes to be carried out at the same time, improving packaging efficiency and production speed. This machine usually has an automated control system that can accurately control each packaging step to ensure the quality and consistency of product packaging.



Its features include:

Multi-station design: multiple packaging steps such as weighing, filling, sealing, etc. can be carried out at the same time, which improves production efficiency.



Automated control: Equipped with advanced automated control systems, each packaging step can be accurately controlled to reduce human errors.



Wide applicability: It is suitable for the packaging of various Chinese herbal solid particles and can meet the packaging of products with different specifications and requirements.



High efficiency and energy saving: The use of advanced packaging technology not only improves packaging efficiency, but also reduces energy consumption, and meets the requirements of energy conservation and environmental protection.



Reliable and stable: It has stable performance and reliable quality, can operate stably for a long time, and reduces maintenance costs.



The introduction of the multi-station packaging machine for Chinese herbal solid particles can improve the production efficiency and product packaging quality of Chinese herbal medicine production enterprises, and is one of the important equipment for automated packaging of Chinese herbal medicine production.



Eight-station packing machine Machine Specification:



Item ZC-X8200 ZC-X8250 ZC-X8300
Packing speed MAX 60 bags/min,depending on the quality of the packaging film,packaging materials packaging weight etc.
Bag size (L)100-300mm (W)70-200mm (L)100-350mm (W)130-250mm (L)150-450mm (W)200-300mm
Bag type Pre-mede bags,Stand-up bag,four-side sealed bag,three-side sealed bag,special-shaped bag
Weighing range 10g-1kg 10g-2kg 10g-3kg

Measurement

accuracy

*≤±0.5~1%, depending on the measuring equipment & materials.
Maximum bag width 200mm 250mm 300mm
Gas consumption 0.8Mpa 0.3m3/min (Supply by user)
Total Powder/Voltage 2.5KW 380V 50/60Hz 2.5KW 380V 50/60Hz 3.7KW 380V 50/60Hz
Air compressor Not less than 1CBM
Dimension L1900*W1400*H1450 L1900*W1400*H1450 L2000*W1500*H1550
Machine Weight 1300kg 1400kg 1500kg
Work flow Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→ Auxiliary→Exhaust→Heat sealing→Forming and output products.

(We can provide you with exclusive customized services according to your needs!)
