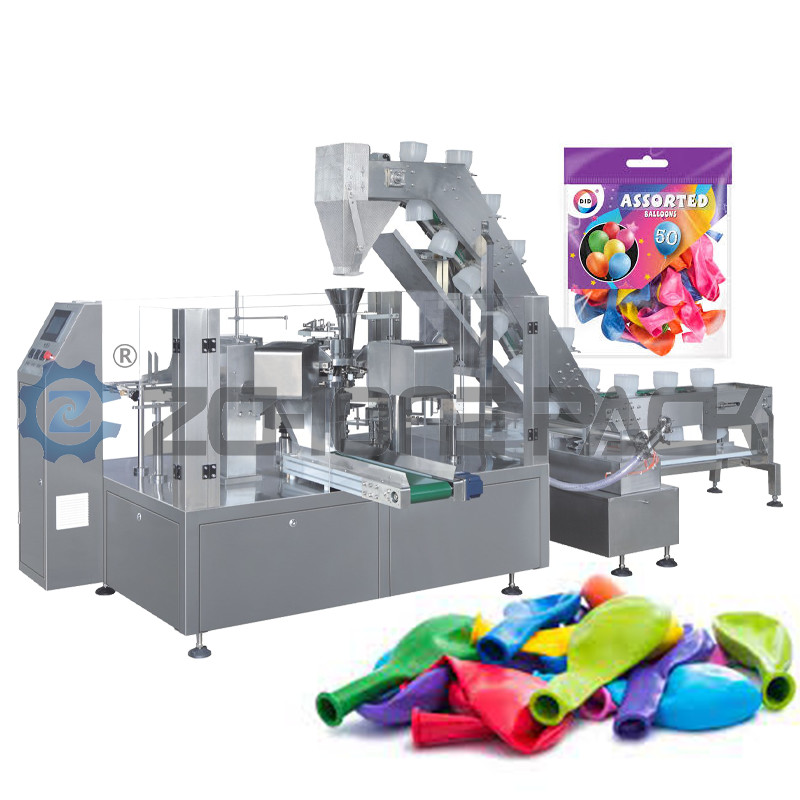

Balloon Packing Machine Multihead Scale Weighing And Counting Multifunctional Packaging Machine

Place of Origin Guangdong,China
Brand Name ZCHONE PACK
Certification ISO,CE
Model Number ZC-X8300
Minimum Order Quantity 1set
Price $18,000~$36,900
Packaging Details Standard export wooden case packaging
Delivery Time 15 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1set/15day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Multifunctional Packaging Machine Product Name Multi-station Packaging Machine With Multi-head Scale
Material Stainless Steel Warranty Period 1 Year
After Warranty Service1 Video Technical SupportOnline Support After Warranty Service2 Field Maintenance And Repair Service
Highlight

Multifunctional Balloon Packaging Machine

,

Balloon Packing Machine

,

Multihead Scale Weighing Packaging Machine

You can tick the products you need and communicate with us in the message board.
Packing Machine Type
Granule Packing Machine
Liquid Packing Machine
Powder Packing Machine
Stand-Up Pouch Packing Machine
Vertical Packing Machine
Horizontal Packing Machine
Tea Bag Machine
Coffee Bean Packing Machine
Horizontal Packing Machine
Leave a Message
Packing Machine Type
Product Description

Balloon Packing Machine Multihead Scale Weighing and Counting Multifunctional Packaging Machine



Balloon packaging machines with multi-head combination scales are usually used in automated balloon production lines to automatically package and weigh balloons. This combination increases production efficiency and ensures packaging consistency and accuracy.



Generally speaking, such equipment may have the following functions and features:



Balloon packaging machine: This machine is used to automatically package balloons and usually has automatic feeding, packaging and sealing functions.



Multi-head combination scale: The multi-head combination scale is used to weigh balloons to ensure the accurate weight of each packaged balloon.



Automated controls: The entire system may be equipped with automated controls that can adjust parameters to accommodate different sizes and types of balloons.



Efficient production: By integrating packaging machines and weighing equipment, production line efficiency can be significantly improved, reducing manual intervention and improving production consistency.



Customization options: According to different production needs, our balloon packaging machines have customization options that can be adjusted and optimized as needed.



Eight-station packing machine Machine Specification:



Item ZC-X8200 ZC-X8250 ZC-X8300
Packing speed MAX 60 bags/min,depending on the quality of the packaging film,packaging materials packaging weight etc.
Bag size (L)100-300mm (W)70-200mm (L)100-350mm (W)130-250mm (L)150-450mm (W)200-300mm
Bag type Pre-mede bags,Stand-up bag,four-side sealed bag,three-side sealed bag,special-shaped bag
Weighing range 10g-1kg 10g-2kg 10g-3kg

Measurement

accuracy

*≤±0.5~1%, depending on the measuring equipment & materials.
Maximum bag width 200mm 250mm 300mm
Gas consumption 0.8Mpa 0.3m3/min (Supply by user)
Total Powder/Voltage 2.5KW 380V 50/60Hz 2.5KW 380V 50/60Hz 3.7KW 380V 50/60Hz
Air compressor Not less than 1CBM
Dimension L1900*W1400*H1450 L1900*W1400*H1450 L2000*W1500*H1550
Machine Weight 1300kg 1400kg 1500kg
Work flow Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→ Auxiliary→Exhaust→Heat sealing→Forming and output products.

(We can provide you with exclusive customized services according to your needs!)
