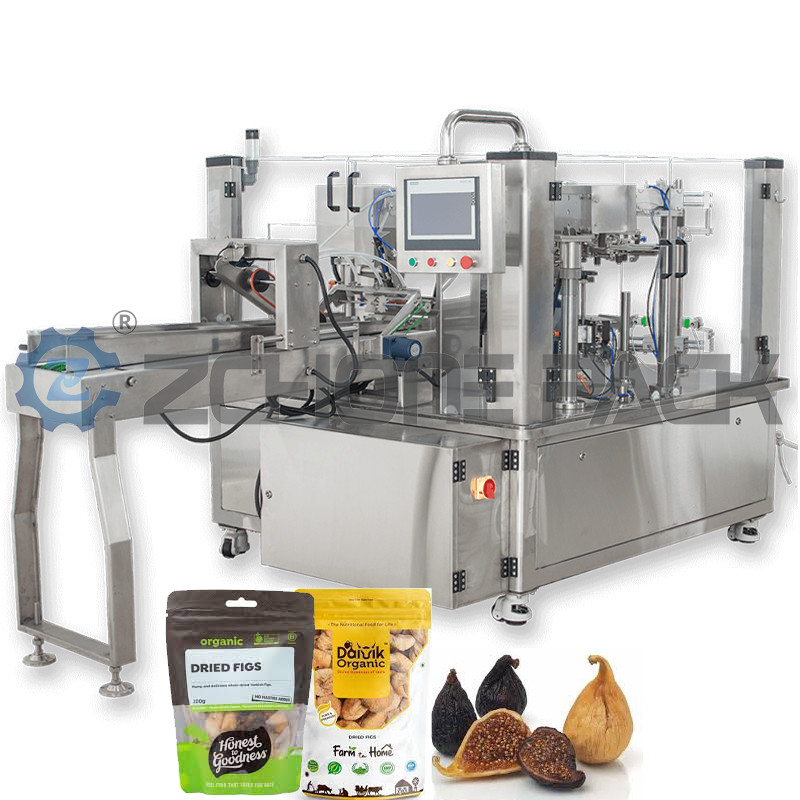

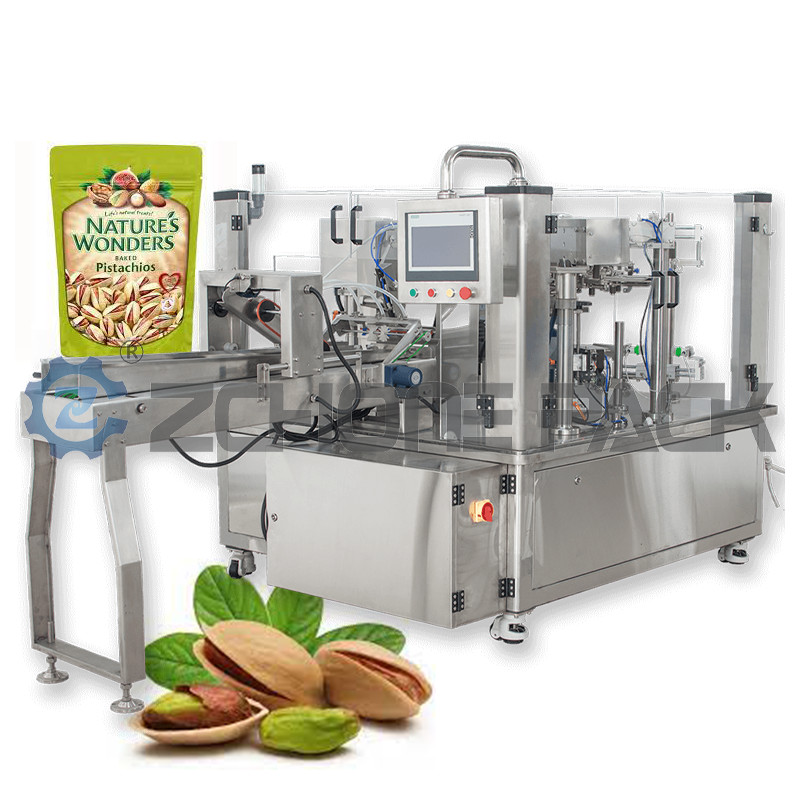

Pistachio Packaging Machine Solid Granular Premade Pouch Stand-up Pouch

Place of Origin Guangdong,China
Brand Name ZCHONE PACK
Certification ISO,CE
Model Number ZC-X8300
Minimum Order Quantity 1set
Price $18,000~$36,900
Packaging Details Standard export wooden case packaging
Delivery Time 15 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1set/15day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Multifunctional Packaging Machine Product Name Multi-station Packaging Machine With Multi-head Scale
Material Stainless Steel Warranty Period 1 Year
After Warranty Service1 Video Technical SupportOnline Support After Warranty Service2 Field Maintenance And Repair Service
Highlight

Premade pouch Packaging Machine

,

Stand-up pouch Packaging Machine

,

Solid Granular Premade pouch Packaging Machine

You can tick the products you need and communicate with us in the message board.
Packing Machine Type
Granule Packing Machine
Liquid Packing Machine
Powder Packing Machine
Stand-Up Pouch Packing Machine
Vertical Packing Machine
Horizontal Packing Machine
Tea Bag Machine
Coffee Bean Packing Machine
Horizontal Packing Machine
Leave a Message
Packing Machine Type
Product Description

Pistachio Packaging Machine Solid Granular Premade pouch Stand-up pouches Zipper Bags Kraft Paper Bags Four Side Seal Bags



The solid packaging machine for pistachio particles is a machine used to package solid items such as pistachio particles. This equipment is usually used in the food processing industry and can automatically package pistachios and other items into small packages that are easy to sell and transport.



This packaging machine usually has the following characteristics:



Automatic operation: It can automatically complete the measurement, filling, sealing and other processes of pistachio particles.



High efficiency: Improve packaging speed and production efficiency, and reduce labor costs.



Flexibility: The packaging specifications and packaging methods can be adjusted as needed.



Stable packaging quality: Ensure the quality and hygiene standards of packaging.



Material saving: The amount of packaging materials used can be effectively controlled to reduce waste.



The working principle of this machine generally includes the following steps:



Pistachio particle feeding: Automatically or manually introduce pistachio particles into the hopper of the packaging machine.



Measuring packaging: Accurately measure pistachio particles according to preset packaging specifications.



Sealing packaging: Pack pistachio particles in pre-prepared packaging materials and seal them.



Quality inspection: Quality inspection of packaged products to ensure compliance with standards.



Conveying and discharging: Convey the packaged products to the downstream packaging line or storage area.

It is necessary to select the appropriate pistachio granules solid packaging machine model and configuration according to specific production needs and packaging requirements to improve production efficiency and product quality.



Eight-station packing machine Machine Specification:



Item ZC-X8200 ZC-X8250 ZC-X8300
Packing speed MAX 60 bags/min,depending on the quality of the packaging film,packaging materials packaging weight etc.
Bag size (L)100-300mm (W)70-200mm (L)100-350mm (W)130-250mm (L)150-450mm (W)200-300mm
Bag type Pre-mede bags,Stand-up bag,four-side sealed bag,three-side sealed bag,special-shaped bag
Weighing range 10g-1kg 10g-2kg 10g-3kg

Measurement

accuracy

*≤±0.5~1%, depending on the measuring equipment & materials.
Maximum bag width 200mm 250mm 300mm
Gas consumption 0.8Mpa 0.3m3/min (Supply by user)
Total Powder/Voltage 2.5KW 380V 50/60Hz 2.5KW 380V 50/60Hz 3.7KW 380V 50/60Hz
Air compressor Not less than 1CBM
Dimension L1900*W1400*H1450 L1900*W1400*H1450 L2000*W1500*H1550
Machine Weight 1300kg 1400kg 1500kg
Work flow Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→ Auxiliary→Exhaust→Heat sealing→Forming and output products.

(We can provide you with exclusive customized services according to your needs!)
