xProduct Details
| Type | Automatic Packaging Machine | Product Name | Food Granule Multi-station Packaging Machine |
|---|---|---|---|
| Dimension(L*W*H) | L1900*W1400*H1450 | Weight (KG) | 1300 |
| Voltage | 110V 220V 380V 50hz/60hz | Production Capacity | 20bag/min, 50bag/min, 30bag/min |
| Highlight | eight-station compressed towel packaging machine,granule packing machine with bag-feeding,compressed towel bag-feeding machine |
||
You can tick the products you need and communicate with us in the message board.
| Packing Machine Type | |
|---|---|
| Granule Packing Machine | |
| Liquid Packing Machine | |
| Powder Packing Machine | |
| Stand-Up Pouch Packing Machine | |
| Vertical Packing Machine | |
| Horizontal Packing Machine | |
| Tea Bag Machine | |
| Coffee Bean Packing Machine | |
| Horizontal Packing Machine |
Product Description

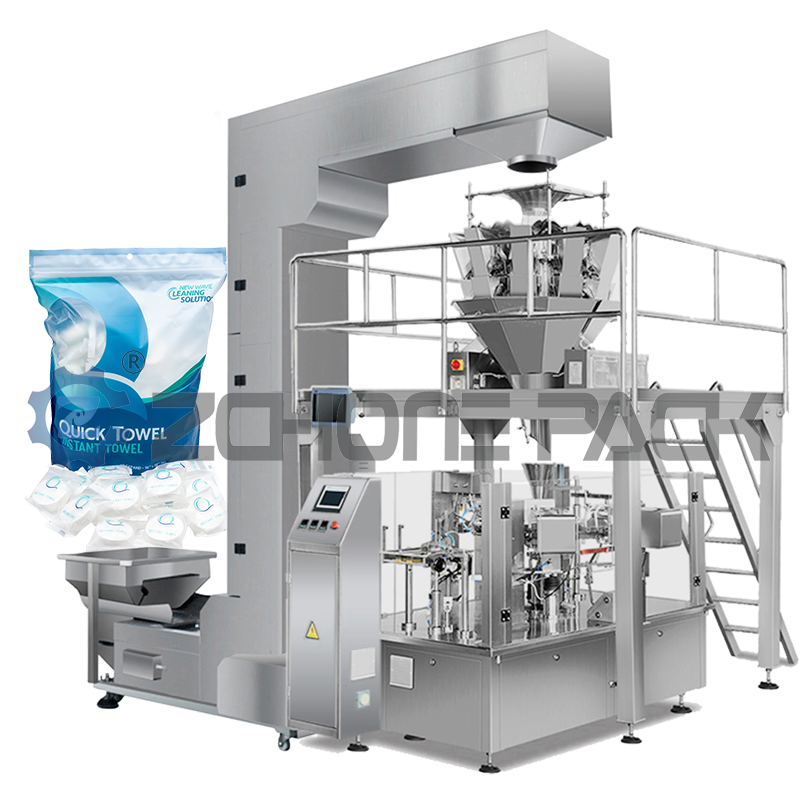

Eight-Station Compressed Towel Bag-Feeding Packaging Machine
1. Key Station Function Design
Station Breakdown:
Station 1: Vacuum Suction Cup Bag Removal (Equipped with Bag-in Inspection)
Station 2: Bag Opening Blowing (Dual-Nozzle High-Pressure Airflow)
Station 3: Vision Positioning and Filling (2-Megapixel CCD)
Station 4: Vibration Sorting (Adjustable Amplitude 0.5-3mm)
Station 5: Secondary Compaction (Pneumatic Platen Pressure Adjustable 0-50kg)
Station 6: Heat Sealing (Pulse Heating + Water Cooling System)
Station 7: Weight Recheck (Dynamic Checkweighing Accuracy ±2g)
Station 8: Finished Product Discharge (With Rejection Device)
2. Technology Upgrade Options
Intelligent Error Prevention System:
Bag Opening Detection (Pressure Sensor)
Missing Alarm (Dual Weight and Vision Verification)
Remote Monitoring:
OPC UA Interface for MES System Integration
Real-Time Production/Fault Data Dashboard
Machine Specification:
| Item | ZC-X8200 | ZC-X8250 | ZC-X8300 |
| Packing speed | MAX 60 bags/min,depending on the quality of the packaging film,packaging materials packaging weight etc. | ||
| Bag size | (L)100-300mm (W)70- 200mm | (L)100-350mm (W)130- 250mm | (L)150-450mm (W)200-300mm |
| Bag type | Pre-mede bags,Stand-up bag,four-side sealed bag,three-side sealed bag,special-shaped bag | ||
| Weighing range | 10g-1kg | 10g-2kg | 10g-3kg |
|
Measurement accuracy |
*≤±0.5~1%, depending on the measuring equipment & materials. | ||
| Maximum bag width | 200mm | 250mm |
300mm |
| Gas consumption | 0.8Mpa 0.3m3/min (Supply by user) | ||
| Total Powder/Voltage | 2.5KW 380V 50/60Hz | 2.5KW 380V 50/60Hz | 3.7KW 380V 50/60Hz |
| Air compressor | Not less than 1CBM | ||
| Dimension | L1900*W1400*H1450 | L1900*W1400*H1450 | L2000*W1500*H1550 |
| Machine Weight | 1300kg | 1400kg | 1500kg |

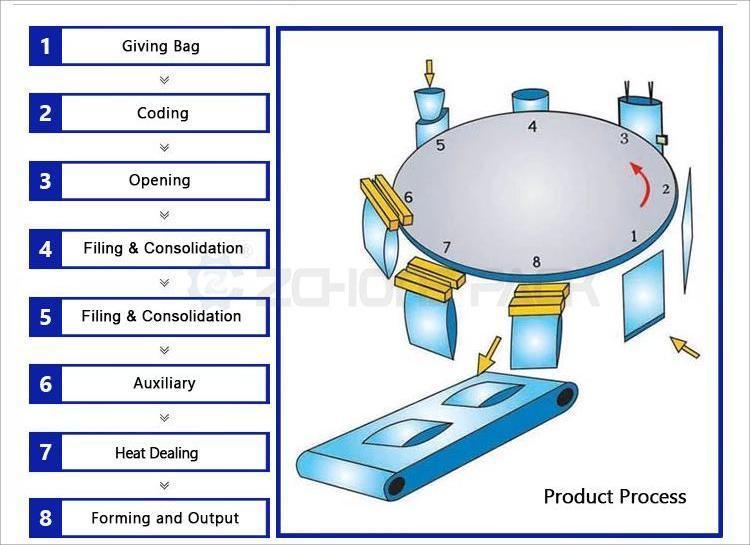

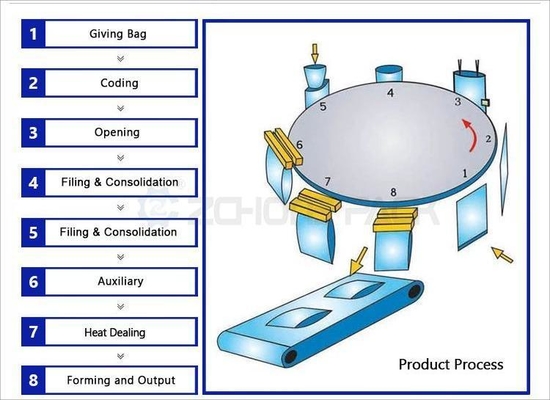

| Work flow | Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→ Auxiliary→Exhaust→Heat sealing→Forming and output products. | ||
| Applicable scope | Granular type: crystal monosodium glutamate, granular drug, capsule, seeds, chemicals, sugar, chicken essence, melon seeds, nut, pesticide, fertilizer, etc | ||
(We can provide you with exclusive customized services according to your needs!)
