Fully Automatic Multi Head Weigher Rotating Balloon Packing Machine

  • Fully Automatic Multi Head Weigher Rotating Balloon Packing Machine
  • Fully Automatic Multi Head Weigher Rotating Balloon Packing Machine
  • Fully Automatic Multi Head Weigher Rotating Balloon Packing Machine
  • Fully Automatic Multi Head Weigher Rotating Balloon Packing Machine
  • Fully Automatic Multi Head Weigher Rotating Balloon Packing Machine
  • Fully Automatic Multi Head Weigher Rotating Balloon Packing Machine
Place of Origin Guangdong，China
Brand Name ZCHONE PACK
Certification ISO，CE
Model Number ZC-8200
Minimum Order Quantity 1set
Price $18000
Packaging Details Standard export wooden case packaging
Delivery Time 15
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1/sets/15day
Product Details
Type Automatic Packaging Machine Product Name Food Granule Multi-station Packaging Machine
Dimension(L*W*H) L1900*W1400*H1450 Weight (KG) 1300
Voltage 110V 220V 380V 50hz/60hz Production Capacity 20bag/min, 50bag/min, 30bag/min
Highlight

fully automatic granule packing machine

,

multi head weigher packing machine

,

rotating balloon packing machine
You can tick the products you need and communicate with us in the message board.
Packing Machine Type
Granule Packing Machine
Liquid Packing Machine
Powder Packing Machine
Stand-Up Pouch Packing Machine
Vertical Packing Machine
Horizontal Packing Machine
Tea Bag Machine
Coffee Bean Packing Machine
Horizontal Packing Machine
Leave a Message
Packing Machine Type
Product Description

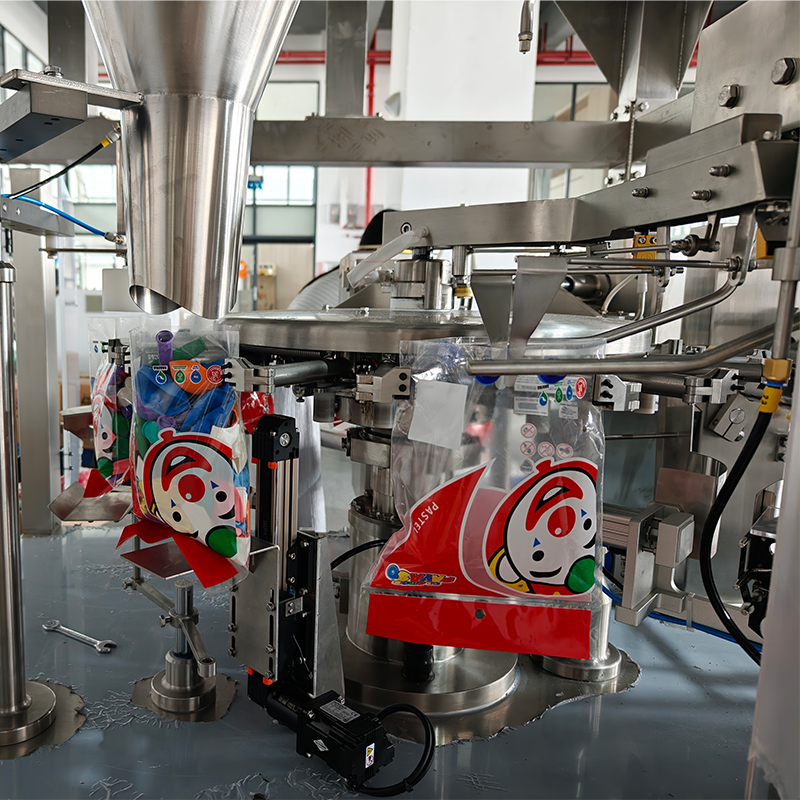

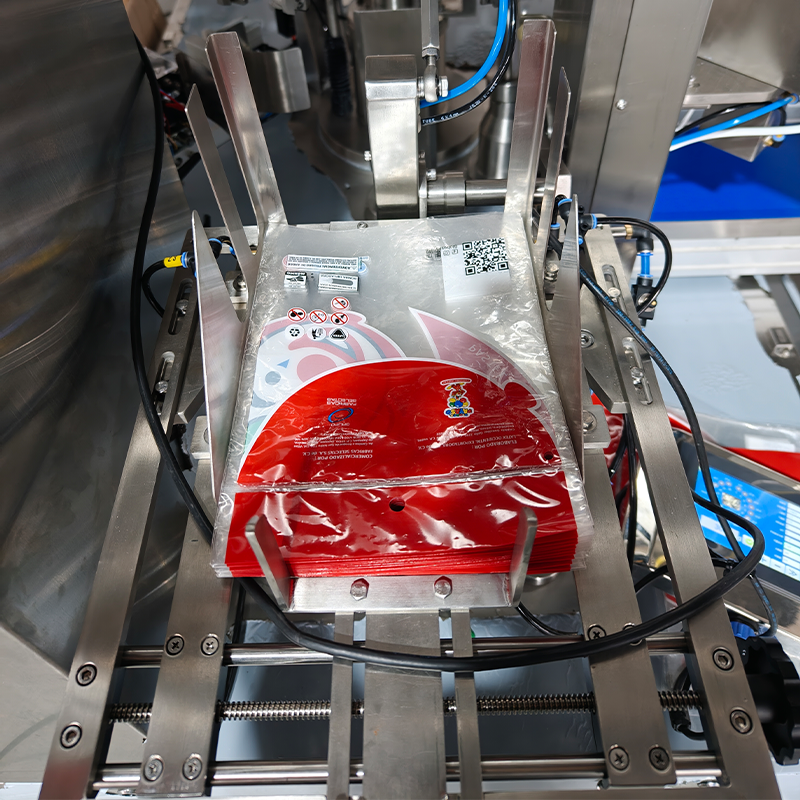

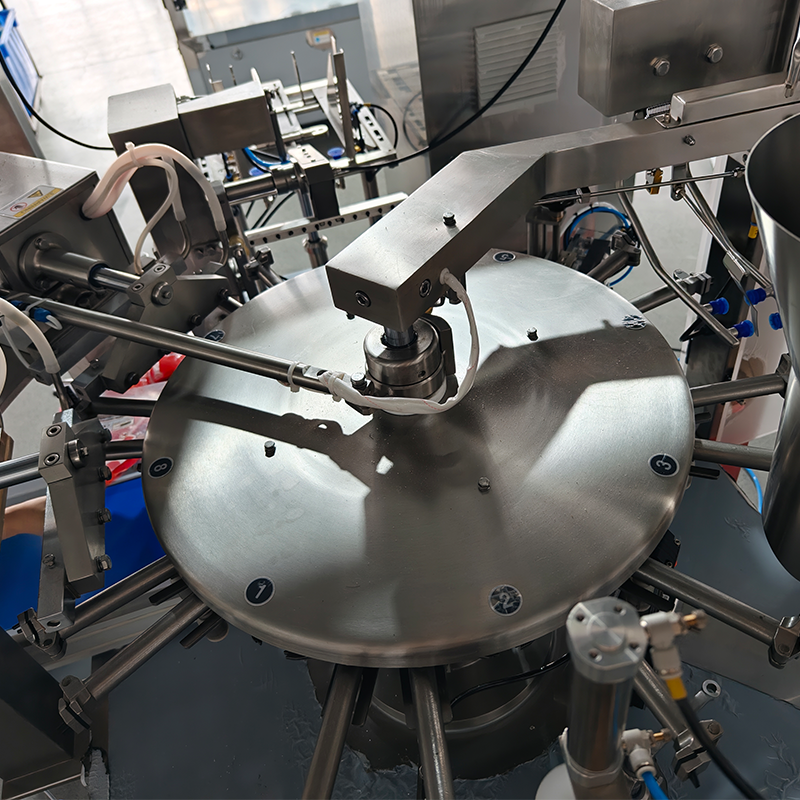

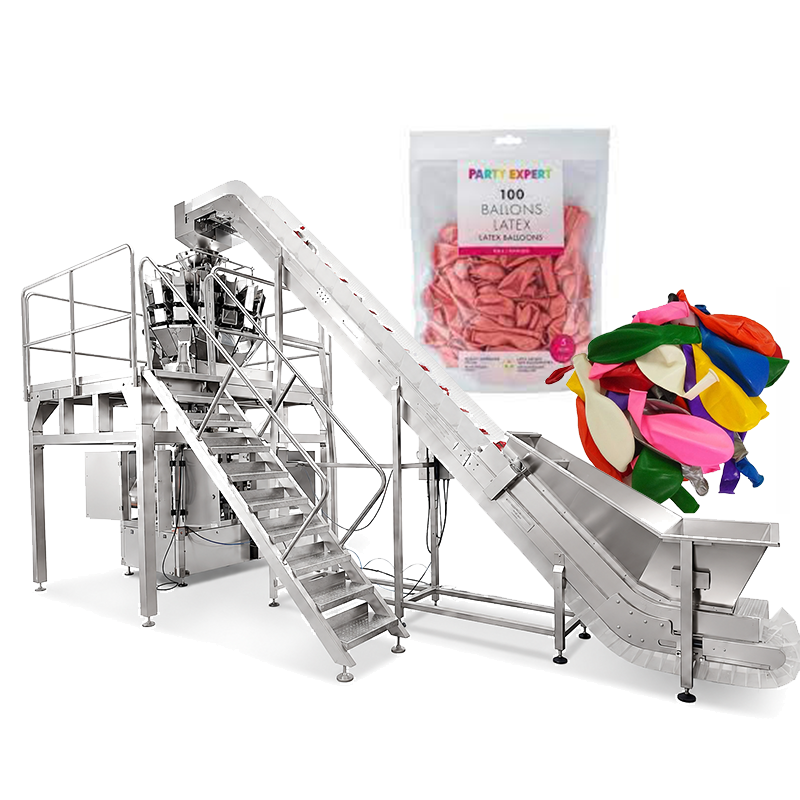

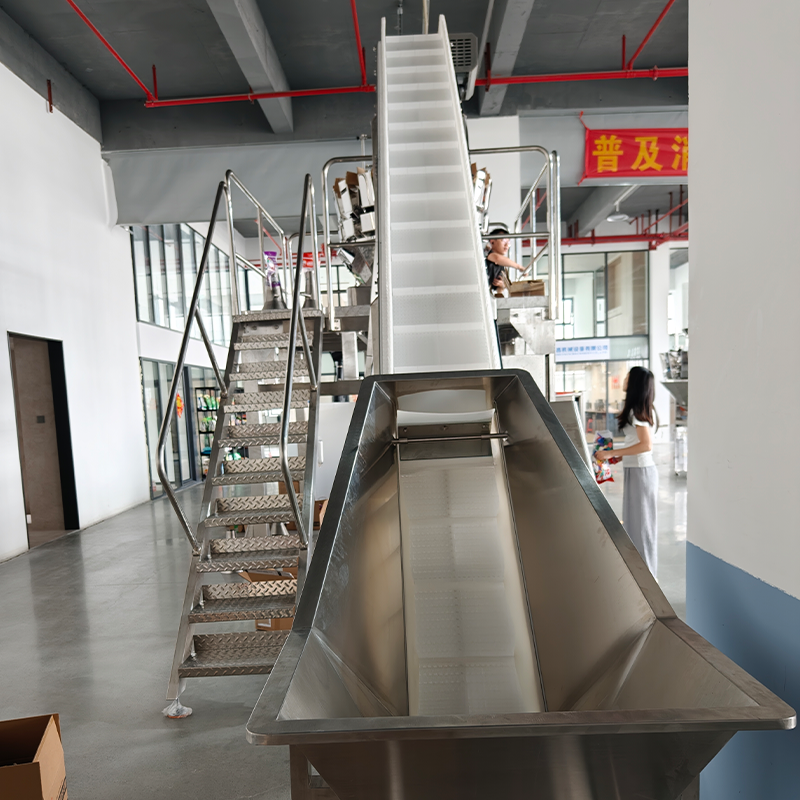

Fully Automatic Multi Head Weigher Rotating Balloon Packing Machine



Balloon Packaging Machine—A High-Efficiency, Precise, Fully Automatic Packaging Solution



The balloon packaging machine is a fully automatic packaging device designed specifically for balloon products. It can complete a series of packaging processes—including metering, filling, sealing, coding, and bag cutting—in a single operation, significantly improving packaging efficiency and reducing labor costs.



Product Features

1. Intelligent Control, Easy Operation
The machine features a color touchscreen and a stable PLC control system, ensuring stable and reliable operation. Operation is intuitive, allowing for easy adjustment of various parameters. It supports the storage of multiple parameter sets, enabling faster and more accurate switching between different product specifications.



2. Precise and Stable, with Aesthetic Seals
Servo motors or dual-servo control are used for film feeding, ensuring precise positioning. An independent temperature control system allows for separate adjustment of horizontal and vertical sealing temperatures, making it well-suited for various packaging materials such as laminated film and PE film, and ensuring strong and aesthetically pleasing seals.



3. Optimized Structure, Durable and Long-Lasting
The entire machine features a sealed design that effectively prevents dust from entering the interior. The pneumatic and electrical circuits are physically separated, resulting in low noise levels and greater electrical stability. The vacuum belt film feeding design reduces resistance and ensures aesthetically pleasing bag formation.



4. Versatile Packaging Formats
Supports a variety of packaging styles, including back sealing, gusseted bags, four-side heat sealing, stand-up pouches, continuous bags, and perforated bags, to meet the diverse needs of different customers.



Machine Specification:

 Item  ZC-X8200  ZC-X8250  ZC-X8300
 Packing speed  MAX 60 bags/min,depending on the quality of the packaging   film,packaging materials packaging weight etc.
 Bag size  (L)100-300mm (W)70-   200mm  (L)100-350mm (W)130-   250mm   (L)150-450mm   (W)200-300mm
 Bag type  Pre-mede bags,Stand-up bag,four-side sealed bag,three-side sealed   bag,special-shaped bag
 Weighing range  10g-1kg  10g-2kg  10g-3kg

 Measurement

 accuracy

  *≤±0.5~1%, depending on the measuring equipment & materials.
 Maximum bag   width  200mm  250mm

 300mm
 Gas   consumption  0.8Mpa 0.3m3/min (Supply by user)
 Total   Powder/Voltage  2.5KW 380V 50/60Hz  2.5KW 380V 50/60Hz  3.7KW 380V 50/60Hz
 Air compressor  Not less than 1CBM
 Dimension  L1900*W1400*H1450  L1900*W1400*H1450  L2000*W1500*H1550
 Machine Weight  1300kg  1400kg  1500kg
 Work flow  Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→   Auxiliary→Exhaust→Heat sealing→Forming and output products.
 Applicable scope  Granular type: crystal monosodium glutamate, granular, capsule,   seeds, chemicals, sugar, chicken essence, melon seeds, nut, pesticide,   fertilizer, etc

(We can provide you with exclusive customized services according to your needs!)
