Long Strip-Shaped Cable Tie Products PE Flat Bag Packaging Machine
Product Details
| Type | Automatic Packaging Machine | Product Name | Food Granule Multi-station Packaging Machine |
|---|---|---|---|
| Dimension(L*W*H) | L1900*W1400*H1450 | Weight (KG) | 1300 |
| Voltage | 110V 220V 380V 50hz/60hz | Production Capacity | 20bag/min, 50bag/min, 30bag/min |
You can tick the products you need and communicate with us in the message board.
| Packing Machine Type | |
|---|---|
| Granule Packing Machine | |
| Liquid Packing Machine | |
| Powder Packing Machine | |
| Stand-Up Pouch Packing Machine | |
| Vertical Packing Machine | |
| Horizontal Packing Machine | |
| Tea Bag Machine | |
| Coffee Bean Packing Machine | |
| Horizontal Packing Machine |
Product Description

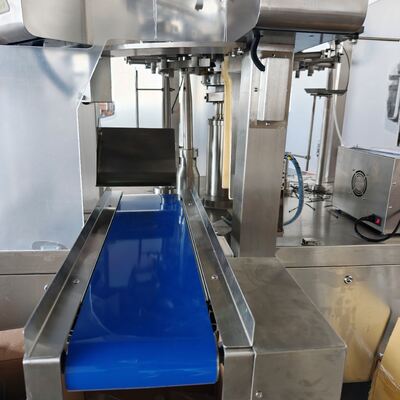

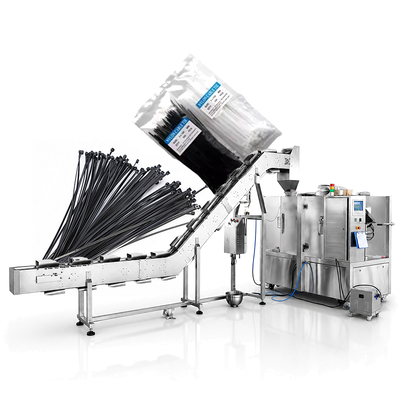

Long Strip-Shaped Cable Tie Products PE Flat Bag Packaging Machine
In the hardware, electronic consumables, gardening, and home goods industries, cable ties (cable ties/nylon cable ties) are standard high-frequency consumer goods.
However, traditional cable tie packaging has long relied on manual counting and hand-stuffing, which is not only inefficient but also prone to the problems of "overpacking resulting in losses and underpacking leading to customer complaints."
Core Advantages
1. Multi-station Rotary Design for Perfect Packaging of Flat Bags

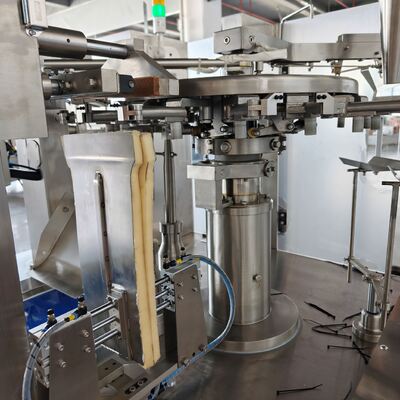

Utilizing an advanced rotary bag feeding design, optimized for standard flat bags, hanging hole bags, and zipper flat bags. The robotic arm precisely grips and supports the bags, ensuring that long, stiff cable ties slide smoothly into the bottom of the bag without jamming or pinching.
2. Smooth and Beautiful Sealing, Enhancing Product Quality
The sealing quality of flat bags directly affects shelf display. This equipment uses intelligent temperature-controlled heat sealing technology, resulting in smooth seals, clear textures, and beautiful edges. It supports automatic printing of production dates, batch numbers, or barcodes, making your cable ties more competitive on supermarket shelves.
3. Flexible Specification Switching, Multi-functional: This machine offers a variety of cable tie sizes (100mm, 200mm, 300mm, etc.). Through a touchscreen and mechanical adjustments, it can quickly adapt to different sizes of flat bags and cable tie specifications, resulting in high-efficiency changeovers and significantly reducing equipment downtime.
"Replacing inefficient manual labor with intelligent automation."
1. PLC Intelligent Control System: Equipped with a large-size color touchscreen, operating parameters are clearly displayed, and workers can easily master the operation after simple training.
2. Upgraded Safety Protection: The fully enclosed machine design, equipped with safety door protection, meets the compliance and safety production requirements of modern factories.
Machine Specification:
| Item | ZC-X8200 | ZC-X8250 | ZC-X8300 |
| Packing speed | MAX 60 bags/min,depending on the quality of the packaging film,packaging materials packaging weight etc. | ||
| Bag size | (L)100-300mm (W)70- 200mm | (L)100-350mm (W)130- 250mm | (L)150-450mm (W)200-300mm |
| Bag type | Pre-mede bags,Stand-up bag,four-side sealed bag,three-side sealed bag,special-shaped bag | ||
| Weighing range | 10g-1kg | 10g-2kg | 10g-3kg |
|
Measurement accuracy |
*≤±0.5~1%, depending on the measuring equipment & materials. | ||
| Maximum bag width | 200mm | 250mm |
300mm |
| Gas consumption | 0.8Mpa 0.3m3/min (Supply by user) | ||
| Total Powder/Voltage | 2.5KW 380V 50/60Hz | 2.5KW 380V 50/60Hz | 3.7KW 380V 50/60Hz |
| Air compressor | Not less than 1CBM | ||
| Dimension | L1900*W1400*H1450 | L1900*W1400*H1450 | L2000*W1500*H1550 |
| Machine Weight | 1300kg | 1400kg | 1500kg |
| Work flow | Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→ Auxiliary→Exhaust→Heat sealing→Forming and output products. | ||
| Applicable scope | Granular type: crystal monosodium glutamate, granular , capsule, seeds, chemicals, sugar, chicken essence, melon seeds, nut, pesticide, fertilizer, etc | ||
(We can provide you with exclusive customized services according to your needs!)
