Automatic Premade Pouch Packing Machine With Rotary Feeding Device Nitrogen Flushing for Tea Cake Pu Er Tea Brick Packaging

Place of Origin Guangdong,China
Brand Name ZCHONE PACK
Certification ISO,CE
Model Number ZC-8200
Minimum Order Quantity 1set
Price $18000
Packaging Details Standard export wooden case packaging
Delivery Time 15
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1/sets/15day
Product Details
Type Automatic Packaging Machine Product Name Food Granule Multi-station Packaging Machine
Dimension(L*W*H) L1900*W1400*H1450 Weight (KG) 1300
Voltage 110V 220V 380V 50hz/60hz Production Capacity 20bag/min, 50bag/min, 30bag/min
Highlight

automatic premade pouch packing machine

,

rotary feeding nitrogen flushing machine

,

tea cake pu er packaging machine

You can tick the products you need and communicate with us in the message board.
Packing Machine Type
Granule Packing Machine
Liquid Packing Machine
Powder Packing Machine
Stand-Up Pouch Packing Machine
Vertical Packing Machine
Horizontal Packing Machine
Tea Bag Machine
Coffee Bean Packing Machine
Horizontal Packing Machine
Leave a Message
Packing Machine Type
Product Description

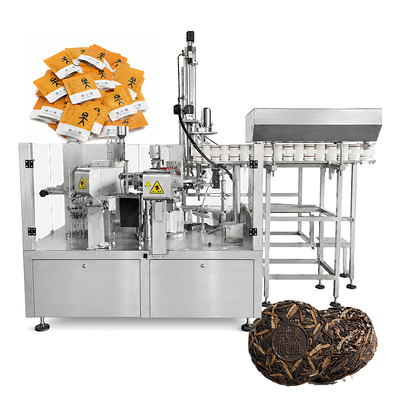

Automatic Pre-made Pouch Tea Cake Packaging Machine

Ring Feeder + Nitrogen Flushing System




一Why Does Tea Cake Packaging Require This Specific Configuration?



Traditional tea cake packaging (such as Pu'er and White Tea cakes) often relies on manual folding or simple heat sealing. These methods are not only inefficient but also fail to provide adequate protection against oxygen and moisture ingress. This accelerates unwanted oxidation, compromises the aging quality, and diminishes the visual appeal of the final product on the shelf.



Our newly launched Pre-made Pouch Tea Cake Packaging Machine is purpose-built for block-shaped and disc-shaped materials. It integrates a Ring Feeder and a Nitrogen Modified Atmosphere (MAP) System to fully automate the entire process—from pouch picking, opening, precise cake loading, nitrogen flushing, to final sealing. The result is a fully automated, high-preservation packaging solution that maintains product integrity from start to finish.




二Core Technical Advantages

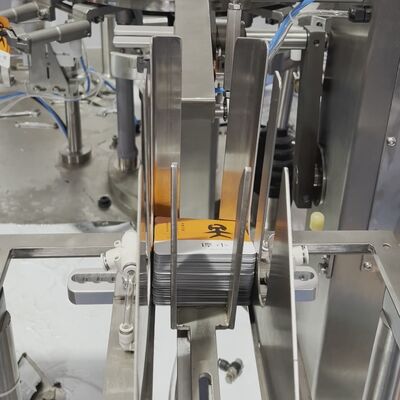

1. Ring Feeder – Custom-Designed for Tea Cake Geometry

Given the irregular shape and fragile nature of compressed tea cakes, the machine is equipped with a dedicated Ring Feeder. This feeding mechanism gently guides the tea cake into the pre-made pouch with a horizontal clamping motion. It effectively eliminates tumbling and edge-impact during the drop, ensuring that each cake enters the pouch completely intact. This design significantly boosts the yield rate while minimizing product breakage.



2. Nitrogen Flushing System – Preserve Aroma & Extend Shelf Life

The system is fitted with a food-grade nitrogen flushing device. Prior to sealing, it precisely injects high-purity nitrogen (compatible with on-site nitrogen generators, purity ≥ 99.5%) into the pouch, effectively reducing the residual oxygen level to an absolute minimum.



Anti-Oxidation: Effectively inhibits the oxidation of tea polyphenols, preserving the clarity of the tea liquor and maintaining the authentic, pure taste profile.

Cushioning Effect: The gentle inflation of the pouch creates a built-in air cushion during transit, protecting the tea cake from compression and fracture.

Superior Presentation: Nitrogen-flushed packaging results in a crisp, plump, and aesthetically pleasing pouch, significantly enhancing the premium appearance of the product.



3. Fully Automated Process – Save Labor & Ensure Standardization

Equipped with a PLC control system and an intuitive HMI touchscreen, the machine operates with intelligent PID temperature controllers for precise sealing. From material feeding and nitrogen flushing to final sealing, the entire workflow is unmanned. This not only guarantees food safety and hygiene but also dramatically reduces reliance on manual labor and minimizes human error.




三Application Scenarios & Case Studies



Suitable Industries: Tea deep-processing enterprises, Pu'er/White Tea brand owners, and premium gift tea custom packaging facilities.

Typical Materials: Compressed Pu'er cakes, White Tea discs, Miniature Citrus Pu'er (Xiao Qing Gan), chocolate blocks, mooncakes, and other round or square flat-shaped items.

Packaging Formats: Compatible with pre-made pouches including stand-up bags, flat pouches, and zipper-lock bags for automated filling and sealing.



Machine Specification:

 Item  ZC-X8200  ZC-X8250  ZC-X8300
 Packing speed  MAX 60 bags/min,depending on the quality of the packaging   film,packaging materials packaging weight etc.
 Bag size  (L)100-300mm (W)70-   200mm  (L)100-350mm (W)130-   250mm   (L)150-450mm   (W)200-300mm
 Bag type  Pre-mede bags,Stand-up bag,four-side sealed bag,three-side sealed   bag,special-shaped bag
 Weighing range  10g-1kg  10g-2kg  10g-3kg

 Measurement

 accuracy

 *≤±0.5~1%, depending on the measuring equipment & materials.
 Maximum bag   width  200mm  250mm

 300mm

 Gas   consumption  0.8Mpa 0.3m3/min (Supply by user)
 Total   Powder/Voltage  2.5KW 380V 50/60Hz  2.5KW 380V 50/60Hz  3.7KW 380V 50/60Hz
 Air compressor  Not less than 1CBM
 Dimension  L1900*W1400*H1450  L1900*W1400*H1450  L2000*W1500*H1550
 Machine Weight  1300kg  1400kg  1500kg
 Work flow  Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→   Auxiliary→Exhaust→Heat sealing→Forming and output products.
 Applicable scope  Granular type: crystal monosodium glutamate, granular, capsule,   seeds, chemicals, sugar, chicken essence, melon seeds, nut, pesticide,   fertilizer, etc

(We can provide you with exclusive customized services according to your needs!)
