Mini Doypack Packaging Machine Premade Bag Zipper Lock Packaging Machine
| Place of Origin | Guangdong，China |
|---|---|
| Brand Name | ZCHONE PACK |
| Certification | ISO，CE |
| Model Number | ZC-430 |
| Minimum Order Quantity | 1set |
| Price | $22,990.00 |
| Packaging Details | Standard export wooden case packaging |
| Delivery Time | 15 |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1/sets/15day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Type: Multi-Function Packaging Machine | Weight (KG） | 880 |
|---|---|---|---|
| Applicable Industries | Hotels, Garment Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Food & Beverage Shops | Application | Food, Commodity, Medical, Chemical, Machinery & Hardware |
| Core Components | Motor, Pressure Vessel, Pump, PLC, Gear, Bearing, Engine, Gearbox | Packaging Type | Stand-up Pouch, Bags, Pouch |
| Voltage | 220V,50/60HZ,1KW | Production Capacity | 30bag/min |
| High Light | 220V Mini Doypack Packaging Machine,50HZ Mini Doypack Packaging Machine,60HZ Premade Pouch Packing Machine |
||
You can tick the products you need and communicate with us in the message board.
| Packing Machine Type | |
|---|---|
| Granule Packing Machine | |
| Liquid Packing Machine | |
| Powder Packing Machine | |
| Stand-Up Pouch Packing Machine | |
| Vertical Packing Machine | |
| Horizontal Packing Machine | |
| Tea Bag Machine | |
| Coffee Bean Packing Machine | |
| Horizontal Packing Machine |
Product Description

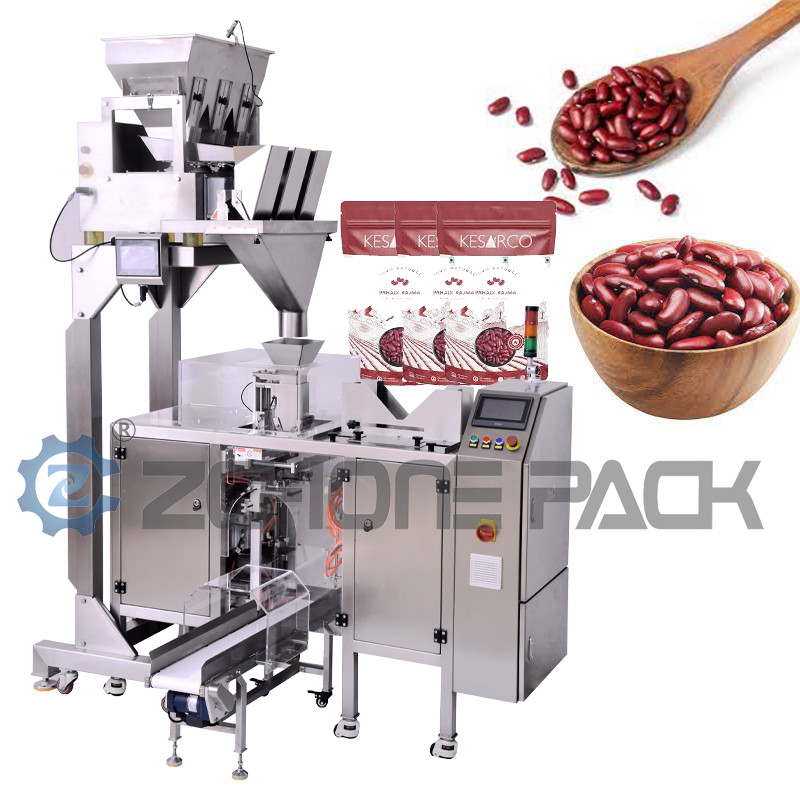

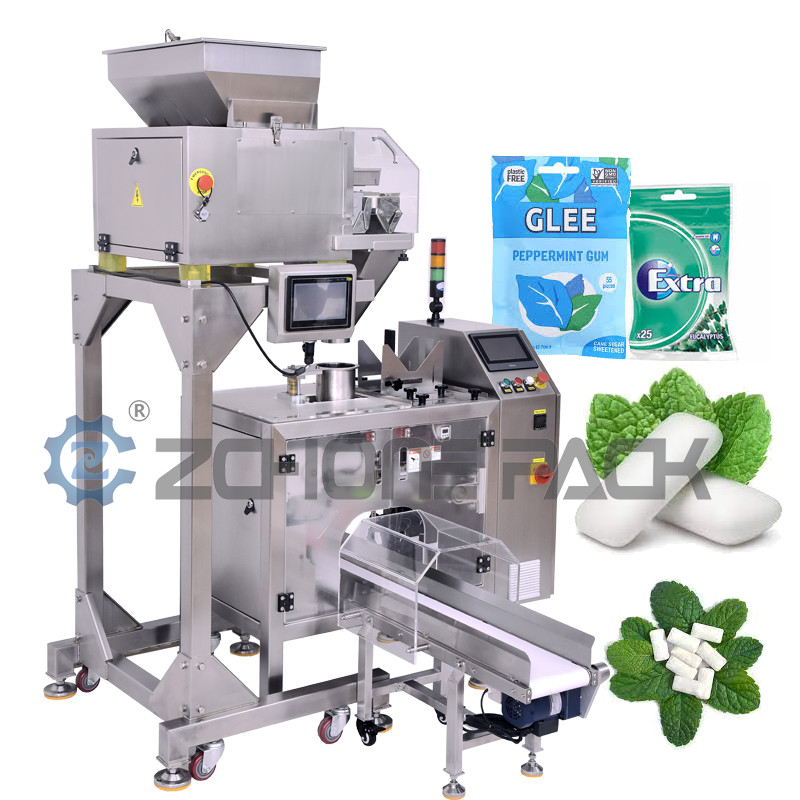

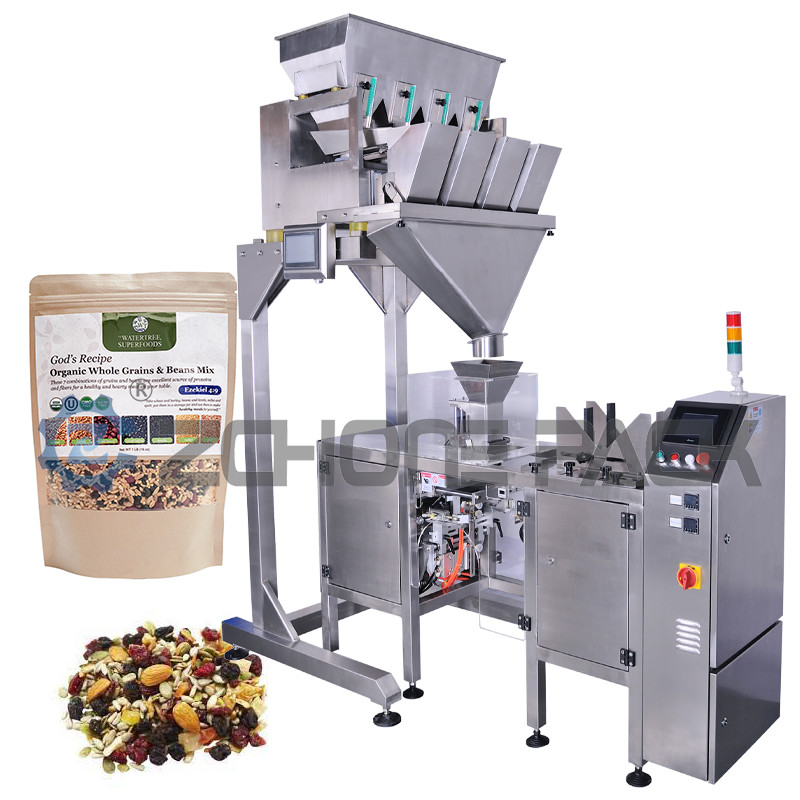

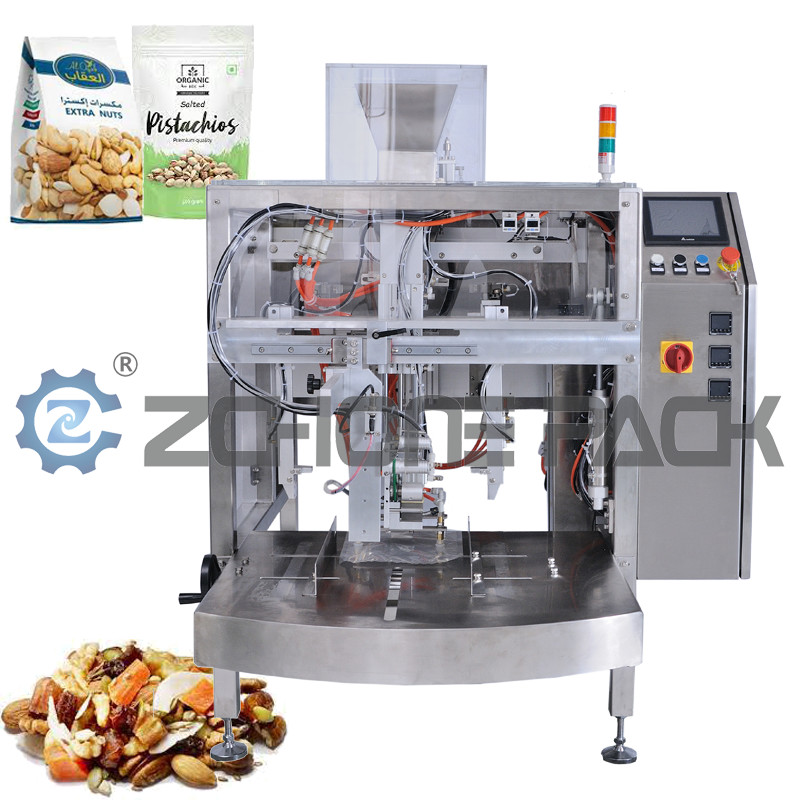

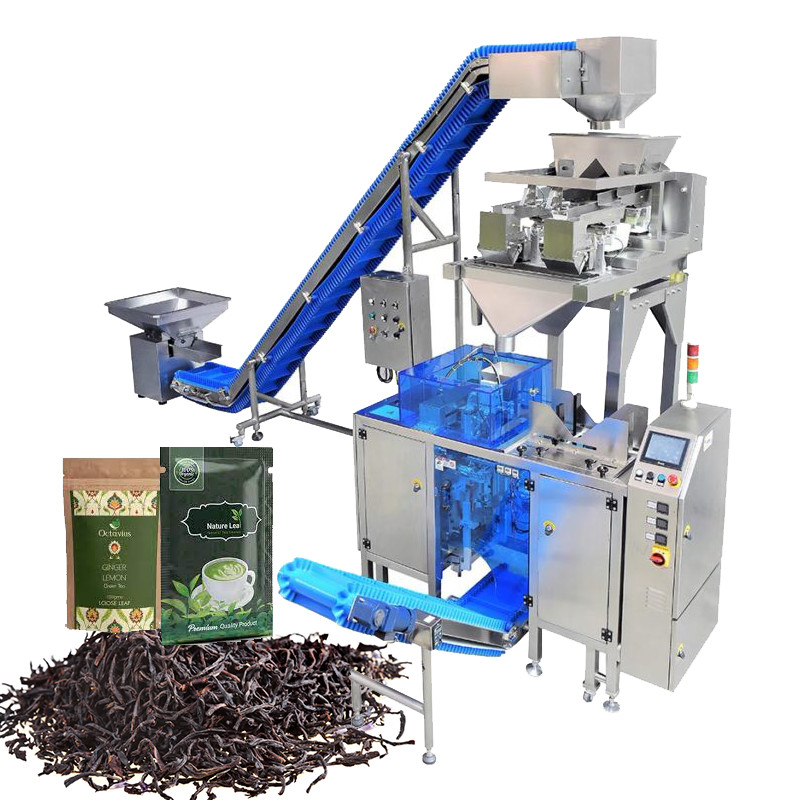

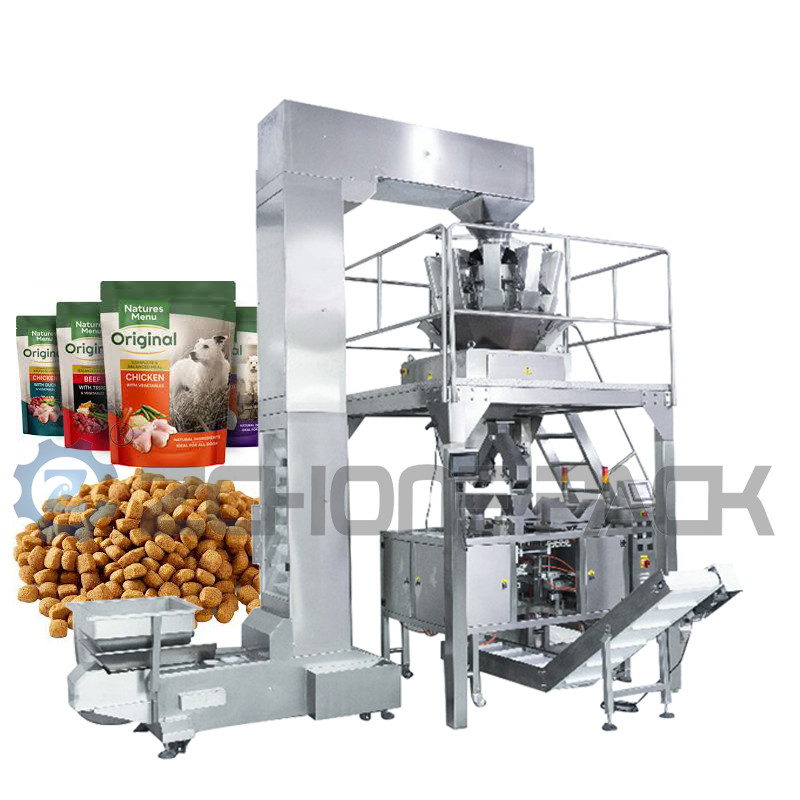

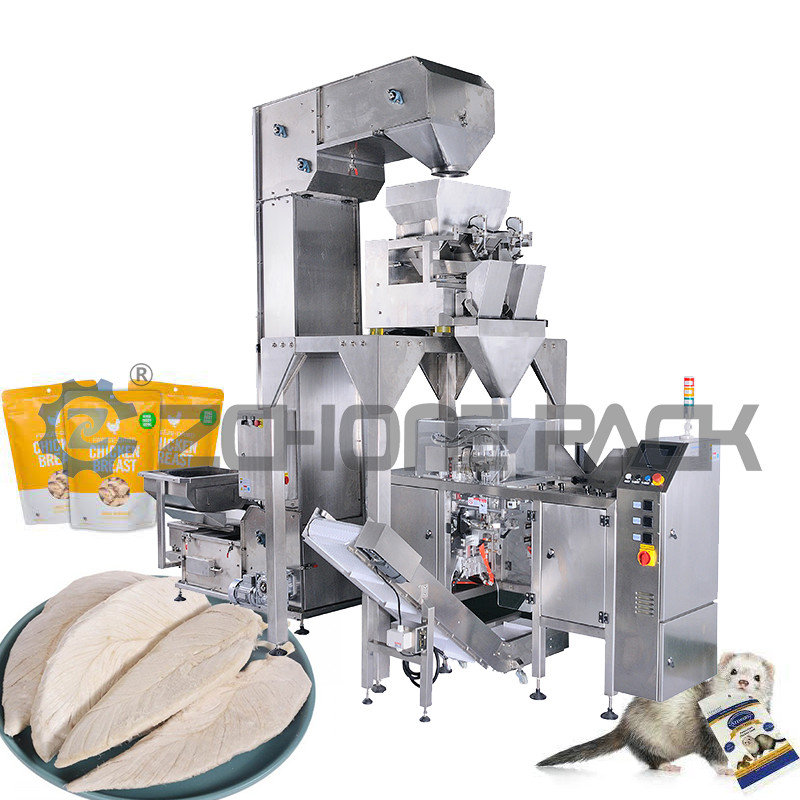

Mini Doypack pouch packing machine Premade Bag Zipper Lock Packaging Machine
Machine Specification:
| Item | 200 | 300 | 430 |
| Bag Material | Multilayer Composite Premade Bag (e.g.: PET/PE) | ||
| Bag size | 100mm≤L≤200mm | 100mm≤L≤300mm | 100mm≤L≤430mm |
| 70mm≤W≤150mm | 80mm≤W≤300mm | 80mm≤W≤300mm | |
| Bag Type | 3 Side Seal Bag, Stand-up Bag | ||
| Upgradable Bag Type | N/A | Gusset Bag, Zipper Bag, Flat Bottom Pouch (Need additional purchase of functional device) |
|
| Speed | 0~26bags/min | 0~15bags/min | |
| Sealing Type | Plain weave | Straight grain, pitch is 1mm (Optional reticulate) | |
| Sealing Width | 8mm | 10mm(5--20mm can be customized) | |
| Voltage | 220V, Single-phase, 50/60HZ, 1KW | 220V, Single-phase, 50/60HZ, 1.2KW | |
| Air Pressure | 0.65Mpa | ||
| Air Consumption | 0.2m³/min | 0.3m³/min | |
| Standard machine, no additional function | |||
| Body Dimension | 1080*535*1010mm | 1770*600*1230mm | 1770*600*1360mm |
| Packing Dimension | 1240*670*1320mm | 1860*710*1550mm | 1860*710*1650mm |
| Export non-fumigation wooden case | |||
(We can provide you with exclusive customized services according to your needs!)
Mini Doypack pouch packing machine is a new type of packaging equipment, which can make the production line more convenient and save labor. It is made up of high-precision cutting knife, automatic feeding device and other accessories. The whole set will be able to produce different kinds of pouches with different sizes according to customer's requirements.
Equipment Characteristics
- Large touch screen control；high reliability and intelligence,and equipped with security protection.
- Different filling devices can be selected according to the nature of the filling materials.
- Intelligent detection,bag filling and sealing,no bag,no filling and sealing.
The Filling System is Just for Your Reference.We Will Offer You the Best Solution According to Your Product Mobility, Viscosity, Density, Volume, Dimensions, Etc.
- Powder Packing Solution —— Servo Screw Auger Filler Is Specialized for Power Filling Such as Nutrients Power, Seasoning Powder, Flour, Medicinal Powder, Etc.
- Liquid Packing Solution —— Piston Pump Filller Is Specialized for Liquid Filling Such as Water, Juice, Laundry Detergent, Ketchup, Etc.
- Solid Packing Solution —— Combination Multi-head Weigher Is Specialized for Solid Filling Such as Candy, Nuts, Pasta, Dried Fruit, Vegetable, Etc.
- Granule Pack Solution —— Volumetric Cup Fillier Is Specialized for Granule Filling Such as Chemial, Beans, Salt, Seasoning, Etc.
After-sale service:
1. Provide manuals/videos for machine installation, adjustment, setup, and maintenance for your use.
2. If the problem cannot be solved, 24-hour telecommunication or online face-to-face communication is available.
3. SUNCHON engineers and technical engineers can provide machine service in your country.
4. The whole machine is guaranteed for 1 year. During the warranty period, the parts that are not artificially damaged. We will replace it with a new one for you free of charge. The warranty will start after the machine is sent out and we receive the bill of lading.
5.We will provide technical support lifelong and provide accessories persistently.
