Multipurpose Zipper Pouch Packing Machine Practical 50/60HZ 380V

Place of Origin Guangdong,China
Brand Name ZCHONE PACK
Model Number ZC-XK8
Minimum Order Quantity 1set
Price $18000
Packaging Details Standard export wooden case packaging
Delivery Time 15
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1/sets/15day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification ISO,CE Type Multi-Function Packaging Machine
Applicable Product Nuts, Cashews, Candies, Pistachios, Coffee Beans, Tea, Cookies, Popcorn, Snacks, Food, Jelly, Chocolate, Etc. Core Components Motor, Pressure Vessel, Pump, PLC, Gear, Bearing, Engine, Gearbox
Production Capacity 20bag/min, 50bag/min, 30bag/min
High Light

Multipurpose Zipper Pouch Packing Machine

,

Practical Zipper Pouch Packing Machine

,

380V Zipper Bag Packing Machine

You can tick the products you need and communicate with us in the message board.

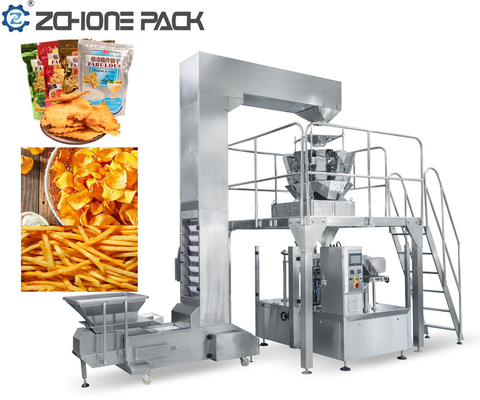

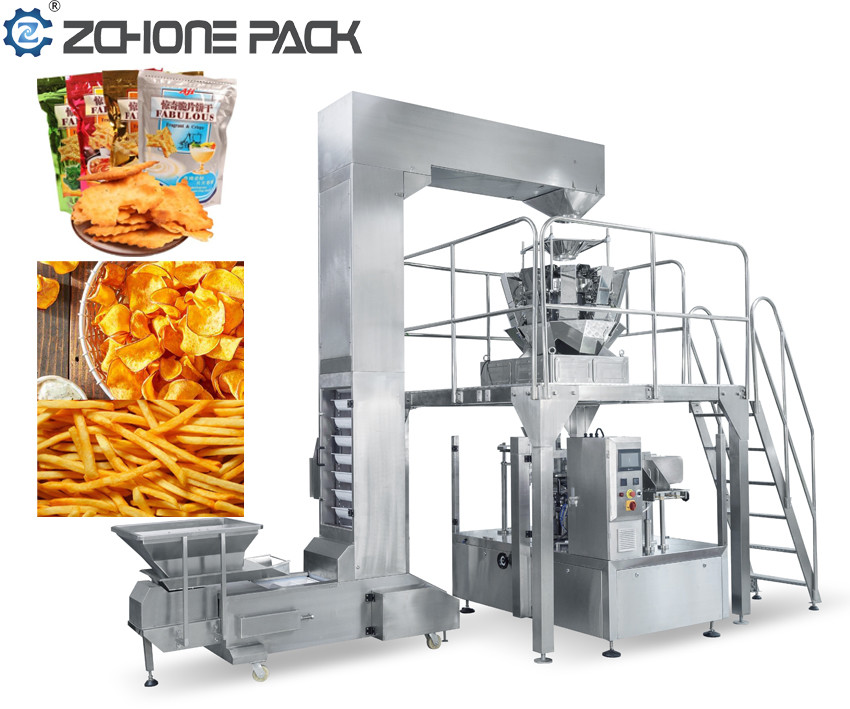

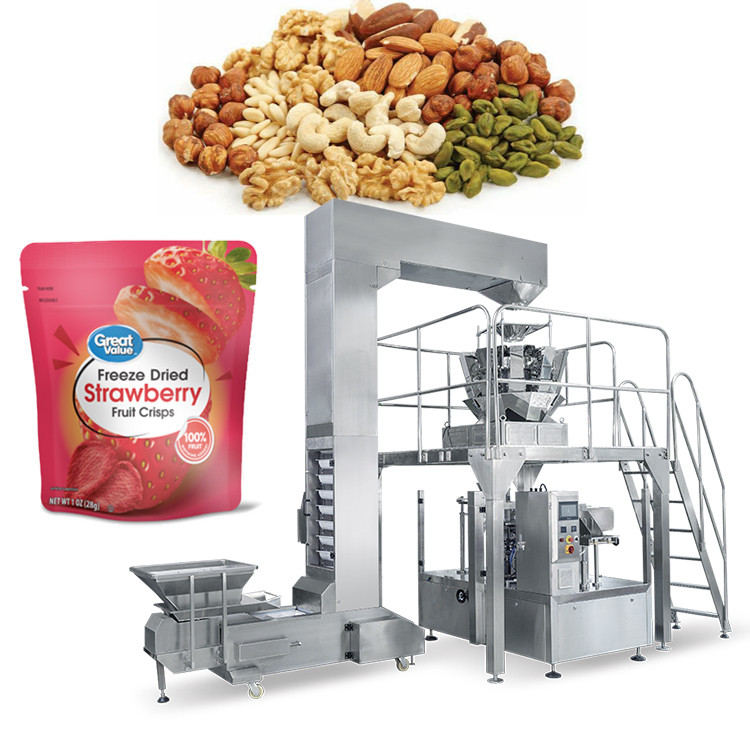

Machine Components Equipped With Groducts

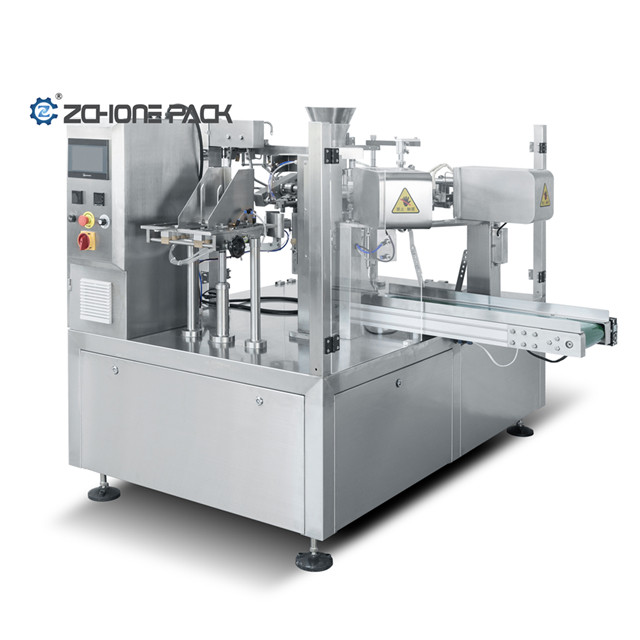

Host Eight-Position Automatic Premade Pouch Packing Machine

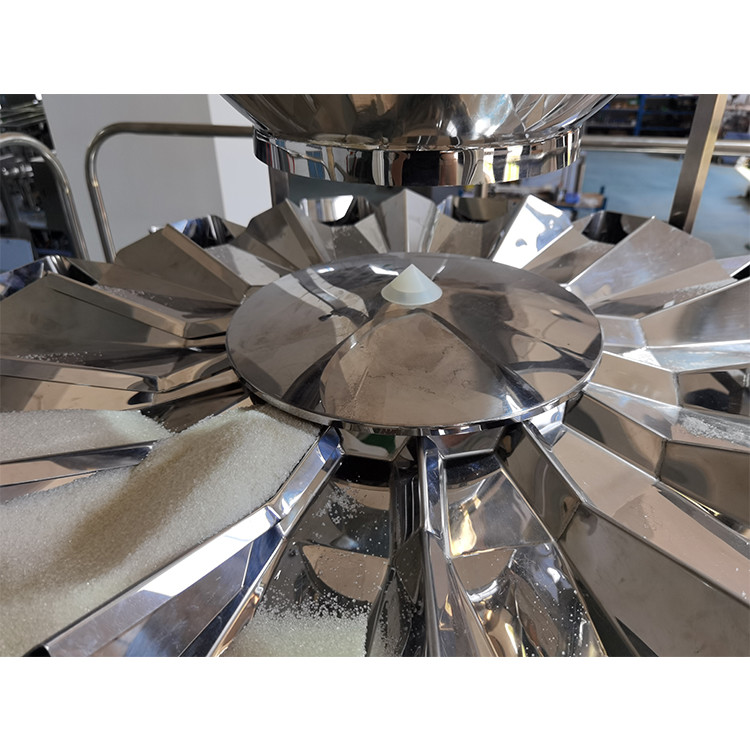

Measuring Equipments Multi Heads Combination Weigher
Cinveyor Z Type Bucket Conveyor
Platform Supporting Platform
Leave a Message
Machine Components Equipped With Groducts
Product Description

Pouches Packing Machine Flat Bottom Pouch Tea Packaging Bag Zipper Bag Granule Eight-Station Packaging Machine



Machine Specification:

Item ZC-8200 ZC-8250 ZC-8300
Packing Speed Max 60 bags /min
Bag Size L100-300MM
W70-200MM
L100-350MM
W130-250MM
L150-450MM
W200-300MM
Weighing Range 10G-1kg 10G-2kg 10G-3kg
Measurement Accuracy ≤±0.5~1.0%,depending on the measurement equipment and materials
Maximum Bag Width 200mm 250mm 300mm
Gas Consumption 0.8Mpa 0.3m³/min
Total Power/Voltage 1.5kw 380v 50/60hz 1.8kw 380v 50/60hz 2kw 380v 50/60hz
Dimension L1900*W1400*H1450mm L2000*W1500*H1500mm
Machine Weight 1300kg 1500kg
Air Compressor Not less than 1 CBM

(We can provide you with exclusive customized services according to your needs!)

Multipurpose Zipper Pouch Packing Machine Practical 50/60HZ 380V 0

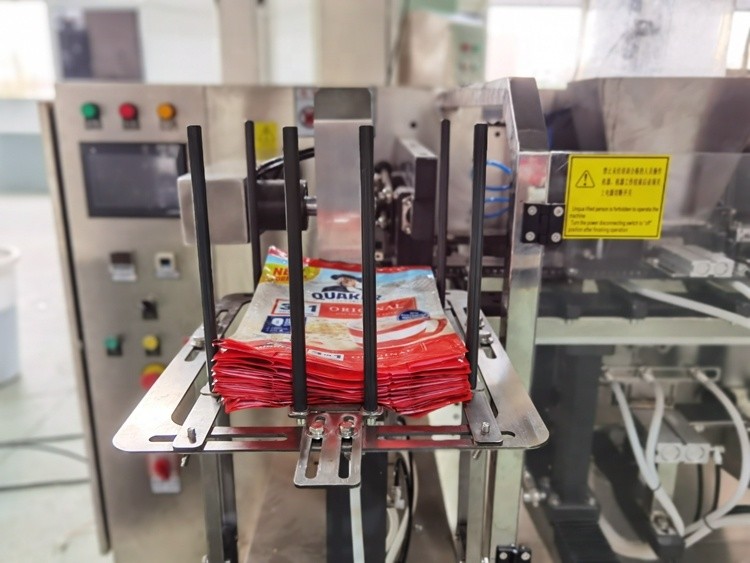

At this stage, the development of enterprises is very fast. In order to meet the growing market demand, all production enterprises have increased the application of new technologies and new equipment. The automatic bag packaging machine replaces manual packaging, and can pack liquids and pastes such as shrimp slips, solid particles such as various nuts, preserves, and lumps such as pig trotters and duck wings. The packaging automation is realized for large and medium-sized enterprises. As long as a staff member puts hundreds of ready-made bags in the bag taking part of the equipment at one time, the mechanical claw of the equipment will automatically take the bags, print the date, open the bags, and signal the metering device. Measure and blank, seal and output.

Multipurpose Zipper Pouch Packing Machine Practical 50/60HZ 380V 1

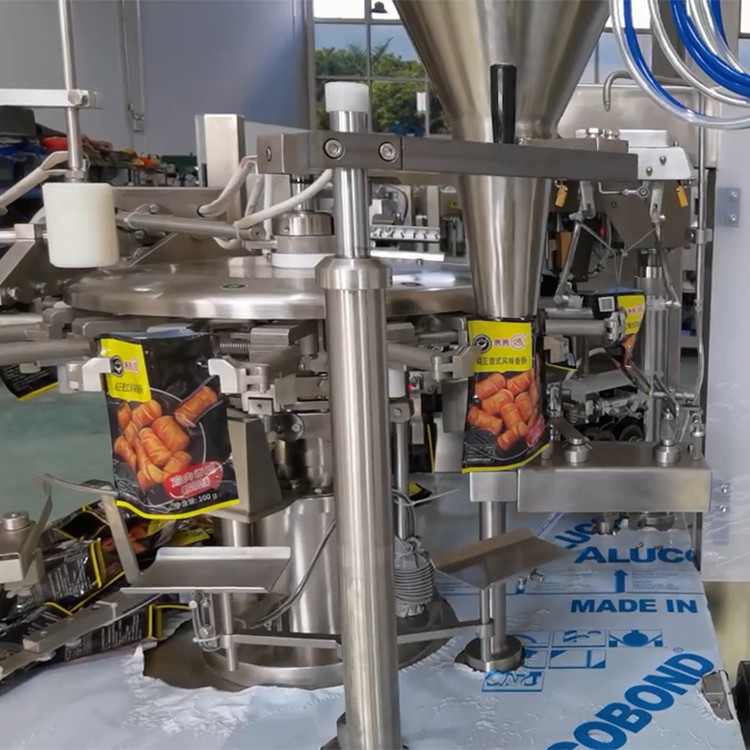

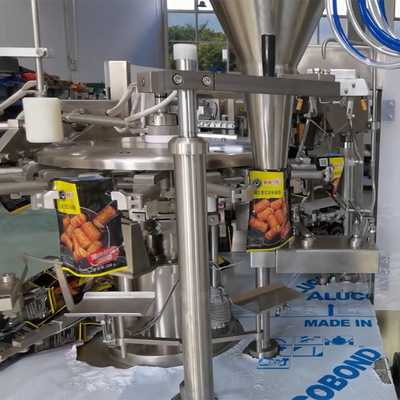

Our prefab granule packaging machine adopts a production mode with eight stations operating at the same time, which greatly speeds up the packaging speed of the machine. The whole process of packaging can be easily completed just by placing the prepared prefabricated bag in the bag taking part of the packing machine.



Multipurpose Zipper Pouch Packing Machine Practical 50/60HZ 380V 2



The eight stations are: 1. Picking up bags - 2. Coding - 3. Opening bags - 4. Filling and vibrating - 5. Filling and vibrating - 6. Poke material - sealing - shaping , output finished product.



Multipurpose Zipper Pouch Packing Machine Practical 50/60HZ 380V 3



Q1:Do you have manual or operation video for us to know more about the machine?

Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make oftesting the material from our packaging machine if your packing goods easier for us to find from our local market.

02:Is engineer available to serve oversea?

Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.

03:How can we make sure about the machine quality after we put the order?

Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.

Q4:Will you provides the door to door service?

Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.
