Premade Pouch Rotary Pouches Packing Machine Multi Station Durable

  • Premade Pouch Rotary Pouches Packing Machine Multi Station Durable
  • Premade Pouch Rotary Pouches Packing Machine Multi Station Durable
  • Premade Pouch Rotary Pouches Packing Machine Multi Station Durable
  • Premade Pouch Rotary Pouches Packing Machine Multi Station Durable
  • Premade Pouch Rotary Pouches Packing Machine Multi Station Durable
Place of Origin Guangdong，China
Brand Name ZCHONE PACK
Certification ISO，CE
Model Number ZC-8200
Minimum Order Quantity 1set
Price $18,000~$36,900
Packaging Details Standard export wooden case packaging
Delivery Time 15
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1/sets/15day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Multi-Function Packaging Machine Packaging Type Bags,Pouch,Film
Application Food,Medical,Chemical,Beverage,Commodity After-sales Service Provided Online Support,Video Technical Support
Warranty 1 Year Voltage 220V/380V
Highlight

Beverage Pouches Packing Machine

,

Rotary Pouches Packing Machine

,

Multi Station Rotary Pouch Packing Machine
You can tick the products you need and communicate with us in the message board.
Packing Machine Type
Granule Packing Machine
Liquid Packing Machine
Powder Packing Machine
Stand-Up Pouch Packing Machine
Vertical Packing Machine
Horizontal Packing Machine
Tea Bag Machine
Coffee Bean Packing Machine
Horizontal Packing Machine
Leave a Message
Packing Machine Type
Product Description

Pouches packing machine Premade bag rotary multi-station packaging machine





Machine Specification:



Item ZC-X8200 ZC-X8250 ZC-X8300
Packing speed MAX 60 bags/min,depending on the quality of the packaging film,packaging materials packaging weight etc.
Bag size (L)100-300mm (W)70-200mm (L)100-350mm (W)130-250mm (L)150-450mm (W)200-300mm
Bag type Pre-mede bags,Stand-up bag,four-side sealed bag,three-side sealed bag,special-shaped bag
Weighing range 10g-1kg 10g-2kg 10g-3kg

Measurement

accuracy

 *≤±0.5~1%, depending on the measuring equipment & materials.
Maximum bag width 200mm 250mm 300mm
Gas consumption 0.8Mpa 0.3m3/min (Supply by user)
Total Powder/Voltage 1.5KW 380V 50/60Hz 1.8KW 380V 50/60Hz 2KW 380V 50/60Hz
Air compressor Not less than 1CBM
Dimension L1900*W1400*H1450 L1900*W1400*H1450 L2000*W1500*H1550
Machine Weight 1300kg 1300kg 1500kg
Work flow Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→ Auxiliary→Exhaust→Heat sealing→Forming and output products.
Applicable scope Liquid/paste type: Oil,milk,detergent liquid, rice wine, soy sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, chili sauce, bean paste, etc

(We can provide you with exclusive customized services according to your needs!)





I. Company Brief Introduction



Zchone Pack Machinery, Professional Manufacturer For Food Packing and Weighing (Multi-heads Weigher, Linear Weigher, Check Weigher, Vertical Packing Machine, Rotary Packaging Machine), Widely use for food Weighing and Packaging, such as Candy, Chocolate, Peanut, Fruit, Grain, Pet food, Chips, Powder, Tea...

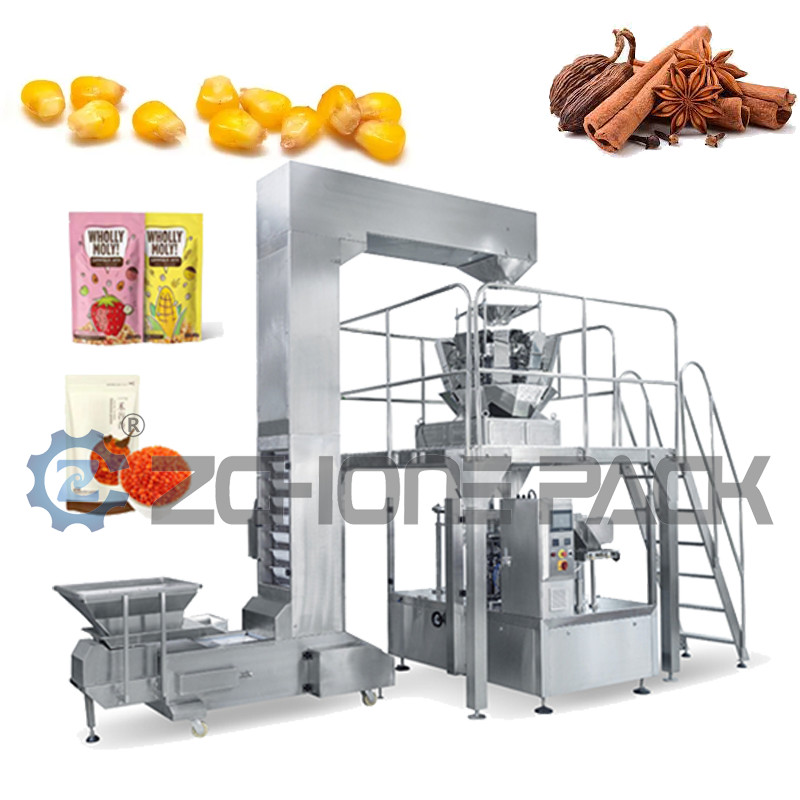

Premade Pouch Rotary Pouches Packing Machine Multi Station Durable 0



II.Application



Rotary packing machine is developed for premade pouch, stand-up pouch with or without zipper. It is suitable for packing product of powder, irregular shape, thick liquid and liquid, such as gourmet powder, chicken powder, seasoning powder, candy, fruits, nut, pet food, roasted seeds, puffed food, frozen food, small hardware and hand sanitizer.

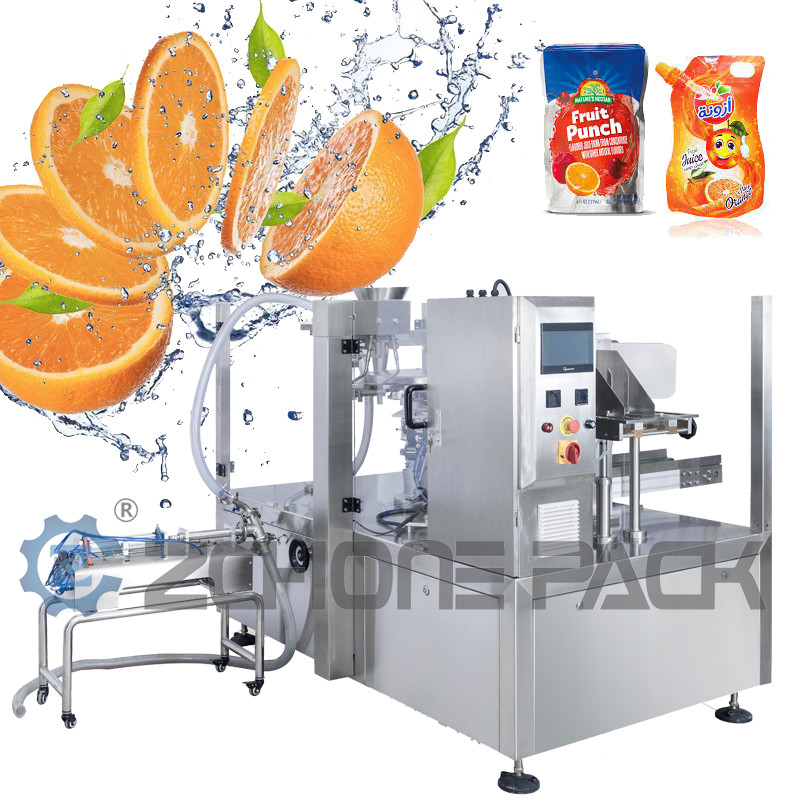

Premade Pouch Rotary Pouches Packing Machine Multi Station Durable 1



III. Main function



1. Automatically check pouch open status, it will not fill and seal when pouch is not opened fully. It avoids the wasting of pouch and raw material and save cost.

2. Machine working speed can be adjusted continuously with frequency converter.

3. SIEMENS PLC adopted, the control system is easy to operated with friendly HMI interface.

4. Machine will alarm when the air pressure is abnormal and stop working with overload protect and safety device.

5. Machine can work with dual-fill, filling with two types of material, such as solid and liquid, liquid and liquid.

6. Machine can work with pouch width range from 100-200mm, by adjusting the width of clips.

7. Adopting advanced bearing, where no need to add oil and less pollution for product.

8. All the product and pouch contact parts are made with stainless steel or the material according with the food hygienic requirements, guarantee hygiene and security of the food.

9. Rotary packing machine can work with different filler to pack solid, powder and liquid.

10. With pre-made pouch, the pattern and sealing on the pouch is perfect. The finished product looks advanced.

11. Machine can work with complex film, PE, PP material premade pouch and paper bag.

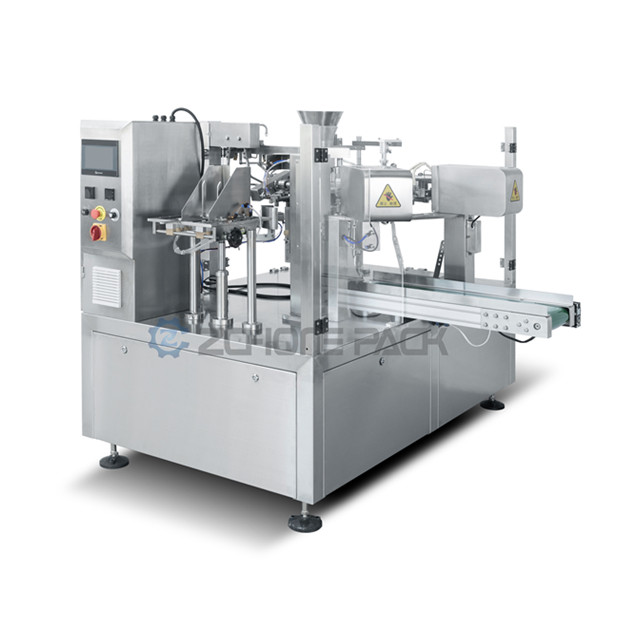

Premade Pouch Rotary Pouches Packing Machine Multi Station Durable 2
