220V Automatic Spout Pouch Packing Machine , Practical Detergent Packaging Machine

  • 220V Automatic Spout Pouch Packing Machine , Practical Detergent Packaging Machine
  • 220V Automatic Spout Pouch Packing Machine , Practical Detergent Packaging Machine
  • 220V Automatic Spout Pouch Packing Machine , Practical Detergent Packaging Machine
  • 220V Automatic Spout Pouch Packing Machine , Practical Detergent Packaging Machine
Place of Origin Guangdong，China
Brand Name ZCHONE PACK
Certification ISO，CE
Model Number ZC-8200
Minimum Order Quantity 1set
Price $18000
Packaging Details Standard export wooden case packaging
Delivery Time 15
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1/sets/15day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Spout Packing Machine Place Of Origin Foshan China
Application Beverage, Liquid & Juice Packaging Material Plastic
Voltage 220V 380V 50/60HZ Key Selling Points Automatic
Highlight

220V Spout Pouch Packing Machine

,

Automatic Spout Pouch Packing Machine

,

Practical Detergent Packaging Machine
You can tick the products you need and communicate with us in the message board.
Packing Machine Type
Granule Packing Machine
Liquid Packing Machine
Powder Packing Machine
Stand-Up Pouch Packing Machine
Vertical Packing Machine
Horizontal Packing Machine
Tea Bag Machine
Coffee Bean Packing Machine
Horizontal Packing Machine
Leave a Message
Packing Machine Type
Product Description

Spout pouches packing machine, automatic,laundry detergent stand up pouch





Machine Specification:



Item ZC-X8200 ZC-X8250 ZC-X8300
Packing speed MAX 60 bags/min,depending on the quality of the packaging film,packaging materials packaging weight etc.
Bag size (L)100-300mm (W)70-200mm (L)100-350mm (W)130-250mm (L)150-450mm (W)200-300mm
Bag type Pre-mede bags,Stand-up bag,four-side sealed bag,three-side sealed bag,special-shaped bag
Weighing range 10g-1kg 10g-2kg 10g-3kg

Measurement

accuracy

 *≤±0.5~1%, depending on the measuring equipment & materials.
Maximum bag width 200mm 250mm 300mm
Gas consumption 0.8Mpa 0.3m3/min (Supply by user)
Total Powder/Voltage 1.5KW 380V 50/60Hz 1.8KW 380V 50/60Hz 2KW 380V 50/60Hz
Air compressor Not less than 1CBM
Dimension L1900*W1400*H1450 L1900*W1400*H1450 L2000*W1500*H1550
Machine Weight 1300kg 1300kg 1500kg
Work flow Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→ Auxiliary→Exhaust→Heat sealing→Forming and output products.
Applicable scope Liquid/paste type: Oil,milk,detergent liquid, rice wine, soy sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, chili sauce, bean paste, etc

(We can provide you with exclusive customized services according to your needs!)

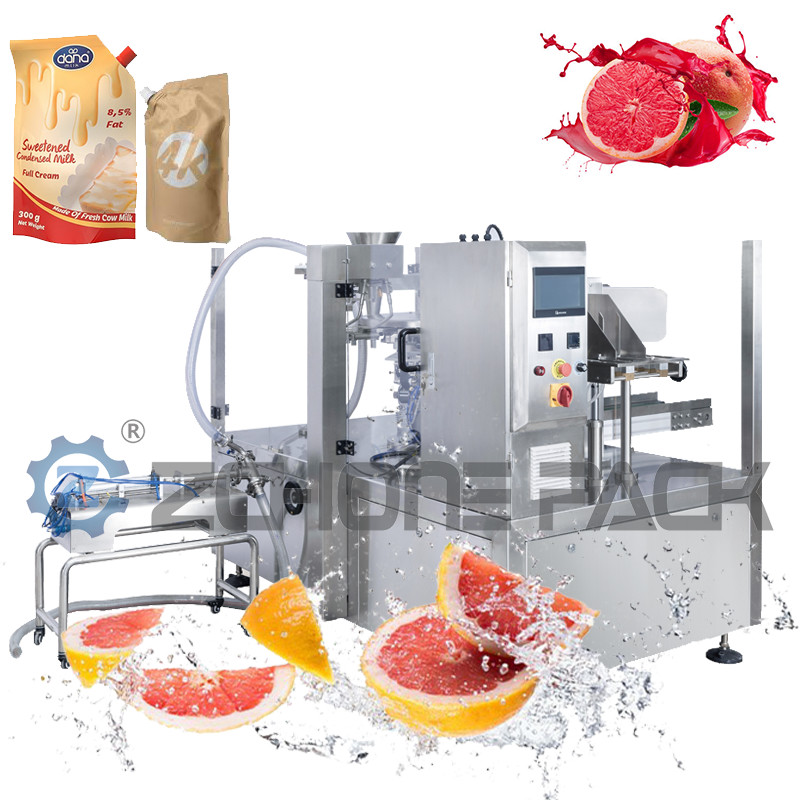

220V Automatic Spout Pouch Packing Machine , Practical Detergent Packaging Machine 0

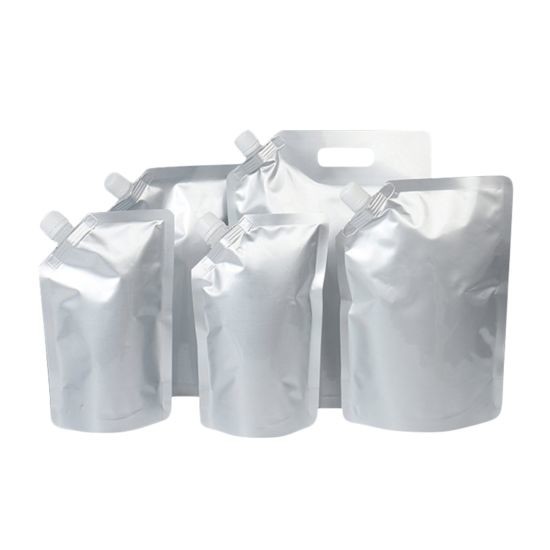

The stand-up pouch is a type of flexible packaging bag with a horizontal support structure at the bottom; the spout stand-up pouch can stand independently without any support. This kind of stand-up pouch is a relatively new packaging form, which has advantages in improving the grade of laundry liquid pouches and improving the visual effect of shelves. Moreover, the self-supporting laundry bag with mouth has the advantages of being portable, convenient to use, fresh-keeping and sealing.



220V Automatic Spout Pouch Packing Machine , Practical Detergent Packaging Machine 1



Laundry liquid spout pouches are usually packaged by bag-feeding liquid packing machines; liquid-feeding bag-type packing machines can collect bags - coding - opening bags - metering and blanking - dust removal - cleaning - heat sealing - cold sealing - The output and other processes are integrated, and the packaging speed is fast, which can improve the packaging efficiency of manufacturers and save labor costs.



220V Automatic Spout Pouch Packing Machine , Practical Detergent Packaging Machine 2





Machine performance and features



1. Rapid change of the specifications of the bag, bag width can be automatically adjusted by one button.

2. Single shaft and the CAM design: packing speed faster; more stable operation ; maintenance easier and reduce defective rate.

3. Modular heating, temperature control more accurate, heating fault have alarm prompt.

4. Advanced design idea, reduce the material loss, ensure the stability of equipment operation, extend the operating life of the equipment.



220V Automatic Spout Pouch Packing Machine , Practical Detergent Packaging Machine 3
