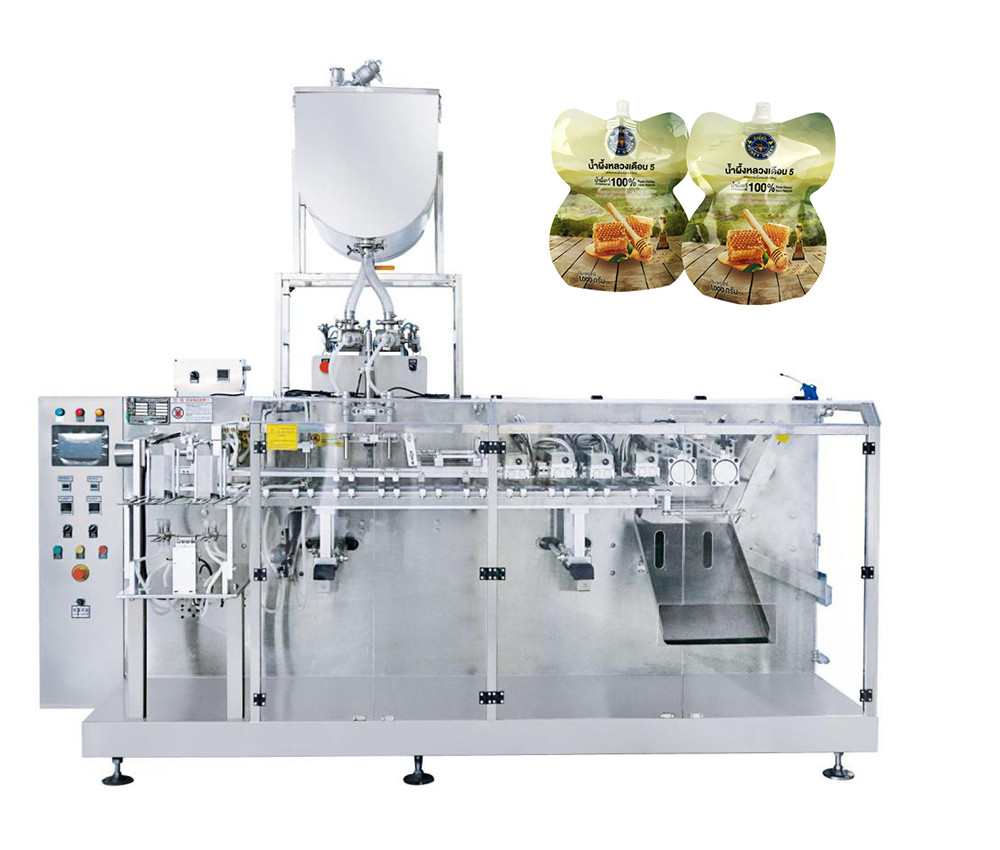

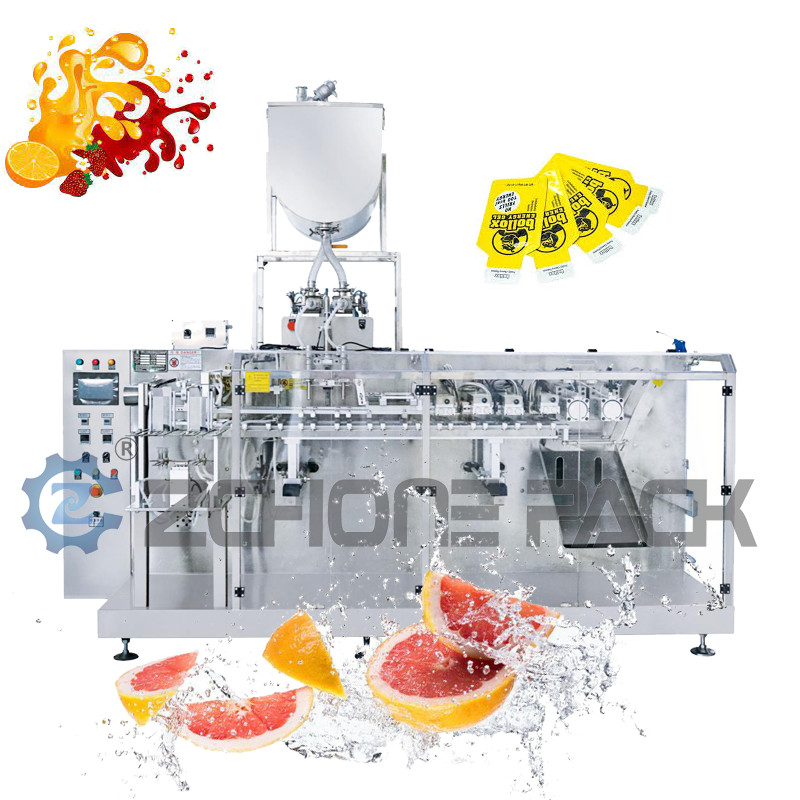

Automatic Horizontal Pouches Packing Machine For Jelly Candy
| Place of Origin | Guangdong，China |
|---|---|
| Brand Name | ZCHONE PACK |
| Certification | ISO，CE |
| Model Number | ZC-S160S |
| Minimum Order Quantity | 1set |
| Price | $12,900~$16,900 |
| Packaging Details | Standard export wooden case packaging |
| Delivery Time | 15 |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1/sets/15day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Multi-Function Packaging Machine | Product Name | Horizontal Packaging Machine |
|---|---|---|---|
| Automatic Grade | Automatic | Condition | New |
| Application | Food,Medical,Chemical,Beverage,Commodity | Warranty | 1 Year |
| Highlight | Automatic Pouches Packing Machine,Horizontal Pouches Packing Machine,Candy Horizontal Pouch Packing Machine |
||
You can tick the products you need and communicate with us in the message board.
| Packing Machine Type | |
|---|---|
| Granule Packing Machine | |
| Liquid Packing Machine | |
| Powder Packing Machine | |
| Stand-Up Pouch Packing Machine | |
| Vertical Packing Machine | |
| Horizontal Packing Machine | |
| Tea Bag Machine | |
| Coffee Bean Packing Machine | |
| Horizontal Packing Machine |
Product Description
Special Shaped Pouches Packaging Machine Horizontal Packaging Machine Enzyme Jelly Candy
Technical parameters of this machine:
| Model | ZC-S160S | ZC-S160D |
| Packing speed | 40-70bags/min |
20-350bags/min
|
|
Total power |
5KW (single host) |
3.5KW (Single host power,supporting system power plus)
|
|
Bag width |
65-85mm (special-shaped bag width specification is customized according to customer specifications, not adjustable) |
|
| Bag length | 100-230mm | |
| Power supply | 380V | |
| Machine weight | 2000KG | 800KG |
| Packaging capacity | 10g-100g | 10g-100g |
| Air consumption | 0.7m3/min | 0.7m3/min |
|
Packaging bag types |
stand-up bags, four-side sealing bags, handbags, paper bags and other prefabricated bags | Various prefabricated bags such as stand-up bags, four-side sealing bags, paper bags, etc. |
(We can provide you with exclusive customized services according to your needs!)
What is a shaped pouch?
The special-shaped pouch is a packaging bag with an irregular shape, and its shape is unique and highly targeted, and is widely used in the packaging of skin care products and food.
The horizontal packing machine breaks through the traditional special-shaped pouch packaging method. The traditional special-shaped pouch packaging needs to make the bag first, and then fill and seal it. And our special-shaped bag horizontal packaging machine only needs to design the shape to be cut first, and when the finished product is output, the horizontal packaging machine will automatically cut the bag. Compared with the traditional bagging machine, the special-shaped bag packaging machine has the advantages of novel packaging shape, easy identification, and prominent brand image, which can make the packaging more distinctive. The special-shaped pouch horizontal packaging machine can also be equipped with hanging holes, aircraft holes and other devices to make the packaging more convenient and more user-friendly.
The main features of the special-shaped pouch:
1. It is convenient and simple to put the bag in the bag slot, and it is equipped with an automatic bag pressing device;
2. Equipped with imported pressure sensing device to achieve the effect of no cutting and no sealing, saving packaging pouches;
3. Use high-quality accessories to maintain the lasting stability of the machine;
4. Adopt color touch screen, simple operation and multi-functional design;
5. The machine adopts the appearance of stainless 304L, and the carbon steel frame part and some accessories are processed with acid-resistant and salt-resistant anti-corrosion treatment layer.
6. Material selection requirements: Most of the accessories are produced by moulding, and the main materials are 304 stainless and alumina.
7. Various coding, coding, exhaust and punching systems can be selected;
