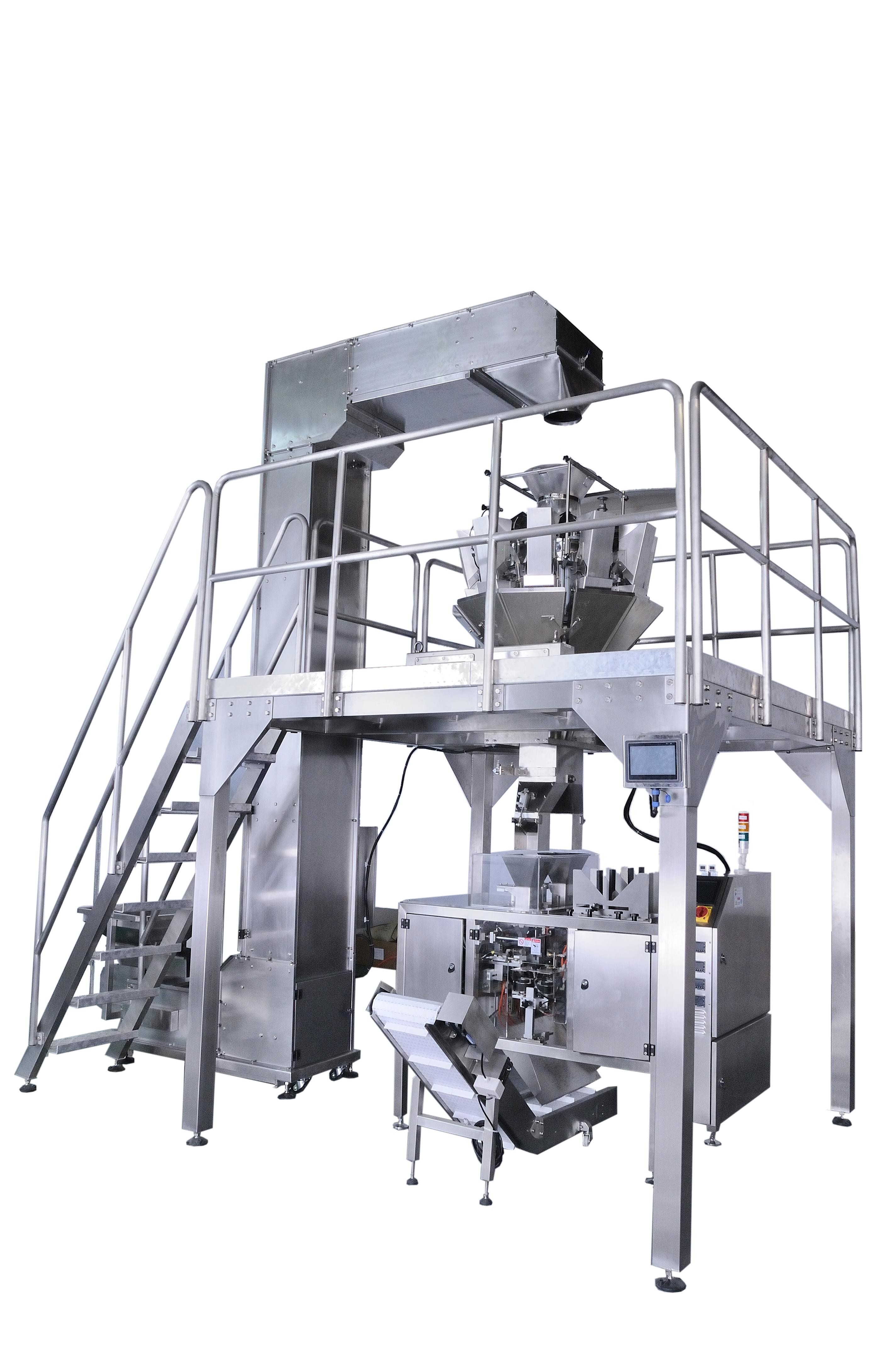

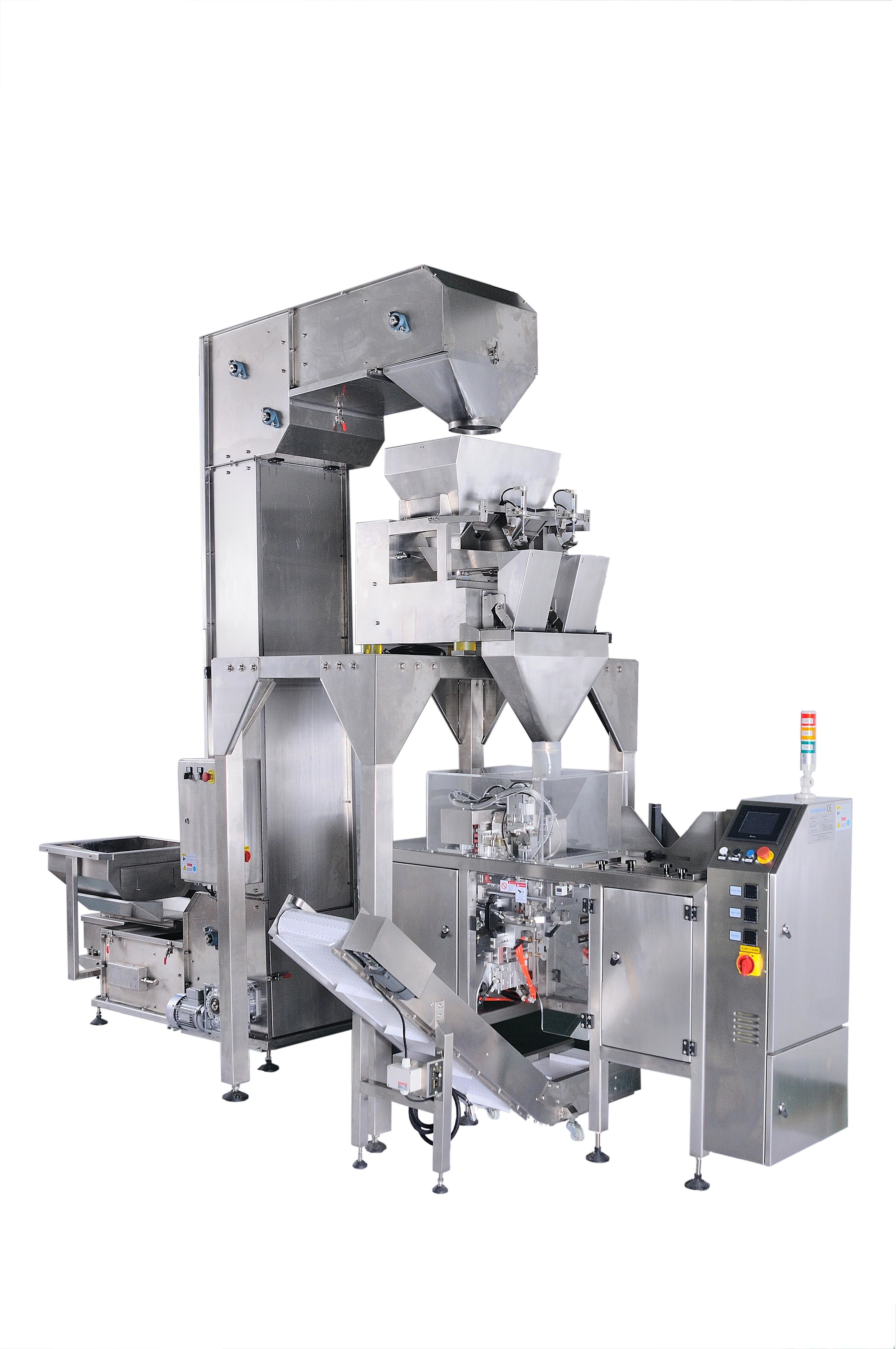

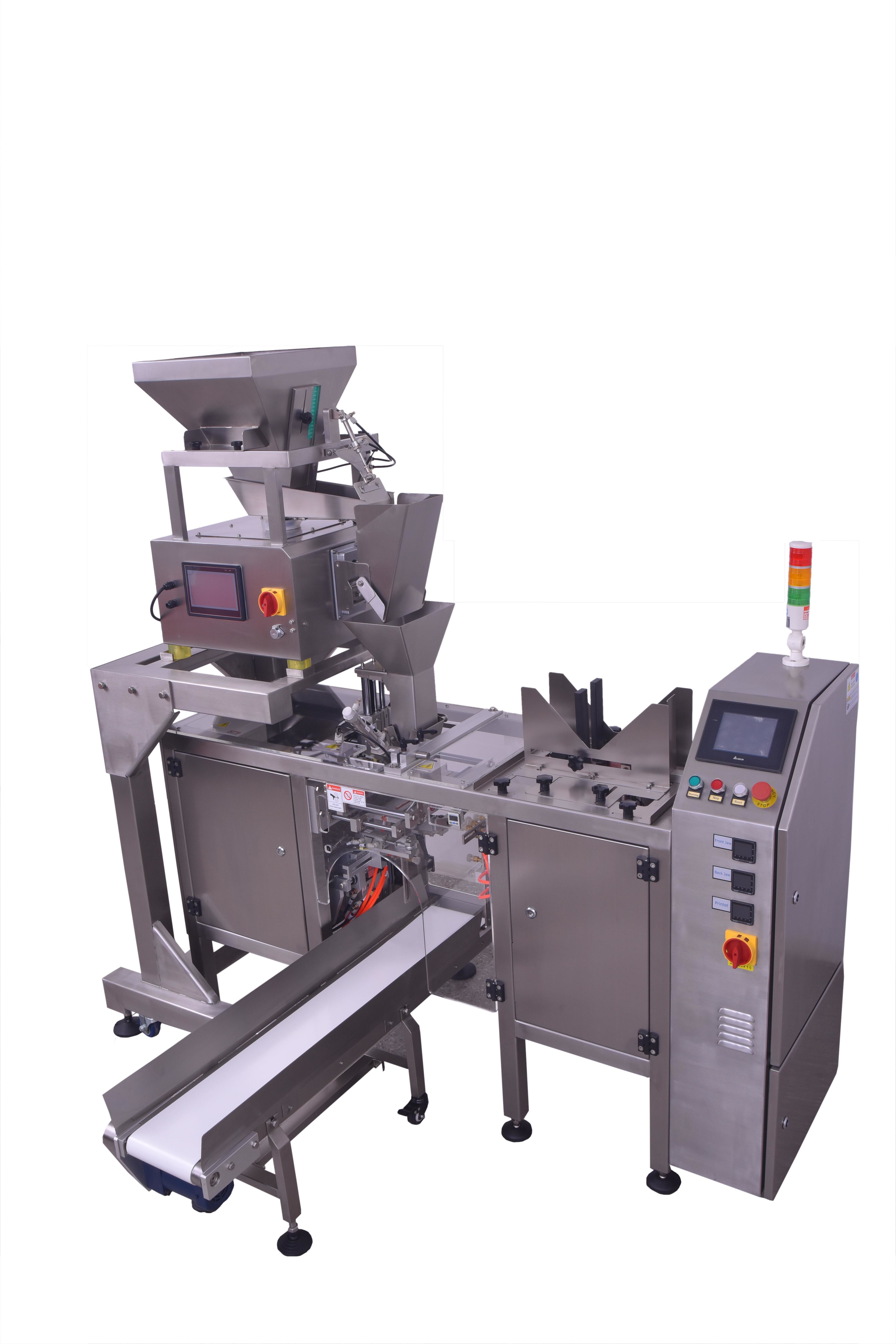

Automatic Doy Bag Packaging Machine Mini Filling And Sealing Packing Machine

Doy Bagger Automatic Mini Filling and Sealing Packing Machine

Machine Specification:

(We can provide you with exclusive customized services according to your needs!)

The Mini Doypack packing machine can be operated with various types of feeding and weighing equipment, and can be used for different material packaging requirements, such as granular materials, powders, sauce liquids and other food and non-food products. The weighing equipment is controlled by the host PLC, and the connection is simple. The action mode and unloading time of the host can be adjusted according to different material properties and packaging volumes to achieve the best packaging effect.

Applicable materials: granules, small pieces, powder, liquid, paste and other food and non-food; such as pet food, candy, coffee beans, nuts, grains, coffee powder, flour, ketchup, life care liquid, etc.

Ability to work:

●Package weight: 1.5Kg or above; generally determined according to the material properties and the actual capacity of the packaging bag

●Packing speed: 6~15 packs/min for single station model; 12~30 packs/min for double station model;

Generally, it depends on the type of material, filling amount, character, fluidity and actual packaging requirements. The more movements, the corresponding reduction in speed.Self-tightening chain, nitrogen filling and vacuuming will reduce the overall running speed;

●Package size: bag width 80~300 mm; bag height (length) 150~430 mm;

It will be adjusted according to different bag types, and when it is required to automatically open the self-closing chain, the size requirements: width 130mm x height 150mm x chain lip 35mm

●Applicable bag type: stand-up bag, three-side sealing bag, flat bottom bag, box bag, organ bag
