Single Station Packaging Machine With Powder Screw Metering Device

  • Single Station Packaging Machine With Powder Screw Metering Device
  • Single Station Packaging Machine With Powder Screw Metering Device
  • Single Station Packaging Machine With Powder Screw Metering Device
Place of Origin Guangdong，China
Brand Name ZCHONE PACK
Certification ISO，CE
Model Number ZC-430
Minimum Order Quantity 1set
Price $20,500~28,900
Packaging Details Standard export wooden case packaging
Delivery Time 15 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1/sets/15day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Multi-Function Packaging Machine Product Name Mini Doypack Packing Machine
Application Food, Commodity Packaging Type Stand-up Pouch, Bags, Pouch
Warranty 1 Year After Warranty Service1 Video Technical Support
Highlight

Durable Mini Doypack Machine

,

Practical Mini Doypack Machine

,

Single Station Doypack Machine
You can tick the products you need and communicate with us in the message board.
Packing Machine Type
Granule Packing Machine
Liquid Packing Machine
Powder Packing Machine
Stand-Up Pouch Packing Machine
Vertical Packing Machine
Horizontal Packing Machine
Tea Bag Machine
Coffee Bean Packing Machine
Horizontal Packing Machine
Leave a Message
Packing Machine Type
Product Description

Single Station Packaging Machine with Powder Screw Metering Device





Machine Specification:



Item 200 300 430
Bag Material Multilayer Composite Premade Bag (e.g.: PET/PE)
Bag size 100mm≤L≤200mm 100mm≤L≤300mm 100mm≤L≤430mm
70mm≤W≤150mm 80mm≤W≤300mm 80mm≤W≤300mm
Bag Type 3 Side Seal Bag, Stand-up Bag
Upgradable Bag Type N/A

Gusset Bag, Zipper Bag, Flat Bottom Pouch

(Need additional purchase of functional device)
Speed 0~26bags/min 0~15bags/min
Sealing Type Plain weave Straight grain, pitch is 1mm (Optional reticulate)
Sealing Width 8mm 10mm(5--20mm can be customized)
Voltage 220V, Single-phase, 50/60HZ, 1KW 220V, Single-phase, 50/60HZ, 1.2KW
Air Pressure 0.65Mpa
Air Consumption 0.2m³/min 0.3m³/min
Standard machine, no additional function
Body Dimension 1080*535*1010mm 1770*600*1230mm 1770*600*1360mm
Packing Dimension 1240*670*1320mm 1860*710*1550mm 1860*710*1650mm
Export non-fumigation wooden case

(We can provide you with exclusive packaging machine customization services according to your needs! Of course,If you need, we can also provide you with customized bag service)

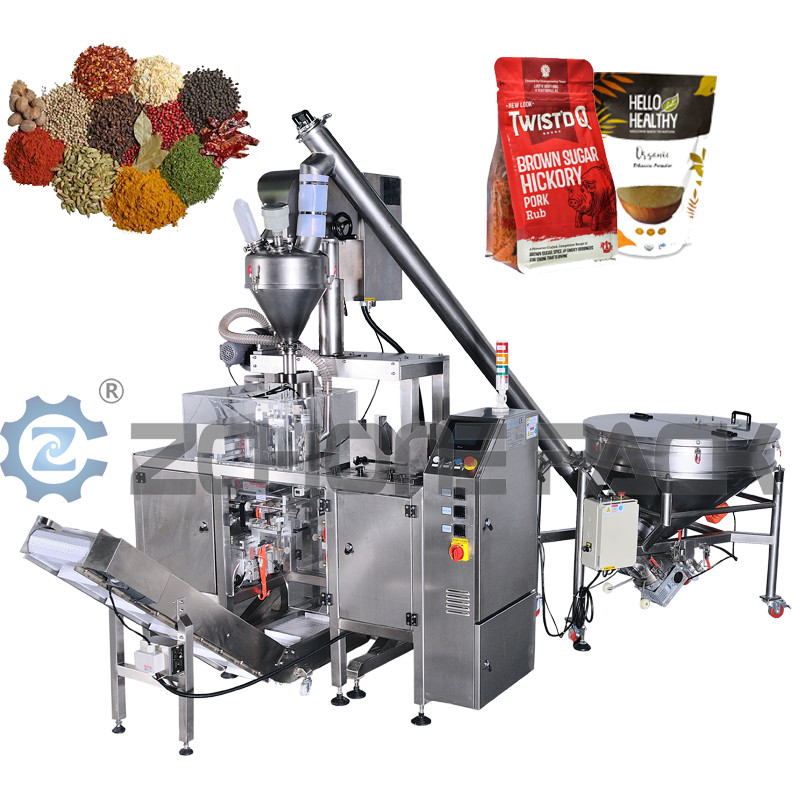

Powder screw metering machine combination packaging line

The total height of the combination of single-station packaging machine + powder screw metering machine does not exceed 3 meters, automatic feeding, automatic weighing, automatic packaging, automatic discharge, and cooperates with 1~2 workers to work;

The powder screw metering machine combination packaging line is suitable for powdery or small and hard granular materials; it is suitable for use when the workshop space is small and the product volume is medium;

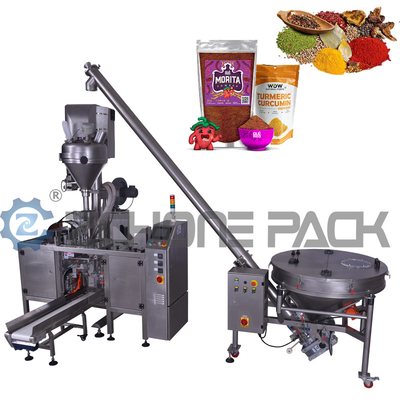

Single Station Packaging Machine With Powder Screw Metering Device 0



The single-station packing machine can be equipped with required accessories according to packaging requirements, such as: zipper opener, protective clip, gas device, bag organizer, ribbon coding machine, servo electric cylinder support, etc.

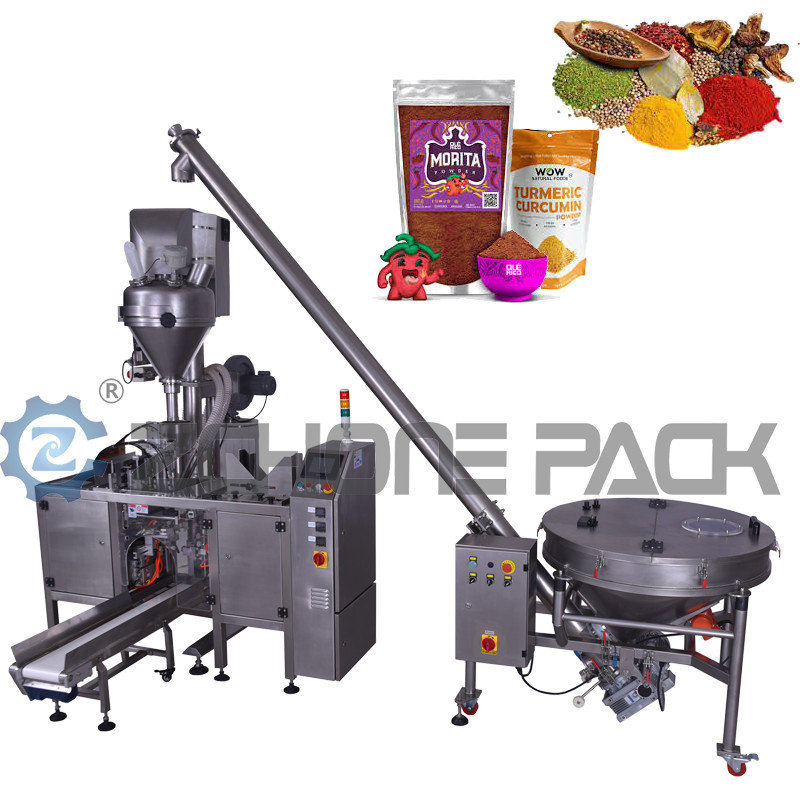

Single Station Packaging Machine With Powder Screw Metering Device 1



Scope of application



Food: flour, soybean flour, corn flour, starch, glutinous rice flour, soda powder, milk powder, bread flour, milk tea powder, ice cream powder, coffee powder, fried chicken powder, seasoning powder, sour plum powder, fruit and vegetable powder, sesame aleurone powder, etc. .

Chemical industry: water-soluble fertilizer, putty powder, descaling agent, soap powder, washing powder, talcum powder, pigment powder, dye powder, toner powder, quick-freezing glue powder, disinfection powder, mortar treasure, plugging king, putty powder, waterproof coating, etc. .

Medicine: veterinary drug powders, powders, premixes, additives, pesticide powders, traditional Chinese medicine powders, medicinal powders, feed additives, amoxicillin soluble powder, herbicides, insecticides, etc.

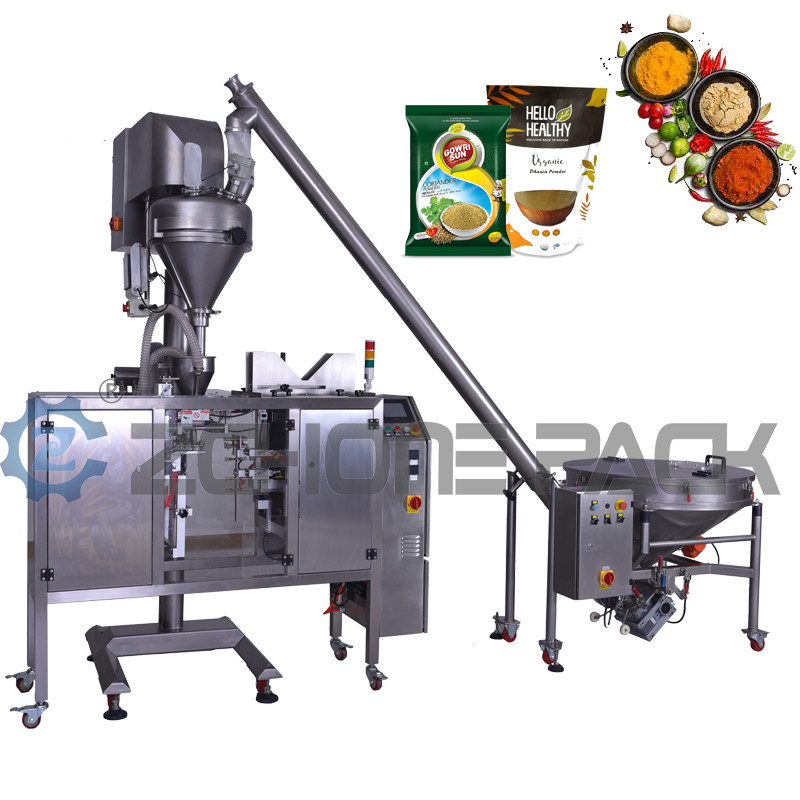

Single Station Packaging Machine With Powder Screw Metering Device 2
