Single Phase Mini Doypack Packaging Machine Lemon Acid Sachet Packing Machine
Place of Origin | Guangdong,China |
---|---|
Brand Name | ZCHONE PACK |
Certification | ISO,CE |
Model Number | ZC-200 |
Minimum Order Quantity | 1set |
Price | $9,800~$28,900 |
Packaging Details | Standard export wooden case packaging |
Delivery Time | 15 |
Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability | 1/sets/15day |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xType | Multi-Function Packaging Machine | Product Name | Mini Doypack Packing Machine |
---|---|---|---|
Warranty | 1 Year | After Warranty Service1 | Video Technical Support |
After Warranty Service2 | Online Support | After Warranty Service3 | Spare Parts |
Highlight | Lemon Acid Mini Doypack Packaging Machine,Single Phase Mini Doypack Packaging Machine |
Packing Machine Type | |
---|---|
Granule Packing Machine | |
Liquid Packing Machine | |
Powder Packing Machine | |
Stand-Up Pouch Packing Machine | |
Vertical Packing Machine | |
Horizontal Packing Machine | |
Tea Bag Machine | |
Coffee Bean Packing Machine | |
Horizontal Packing Machine |

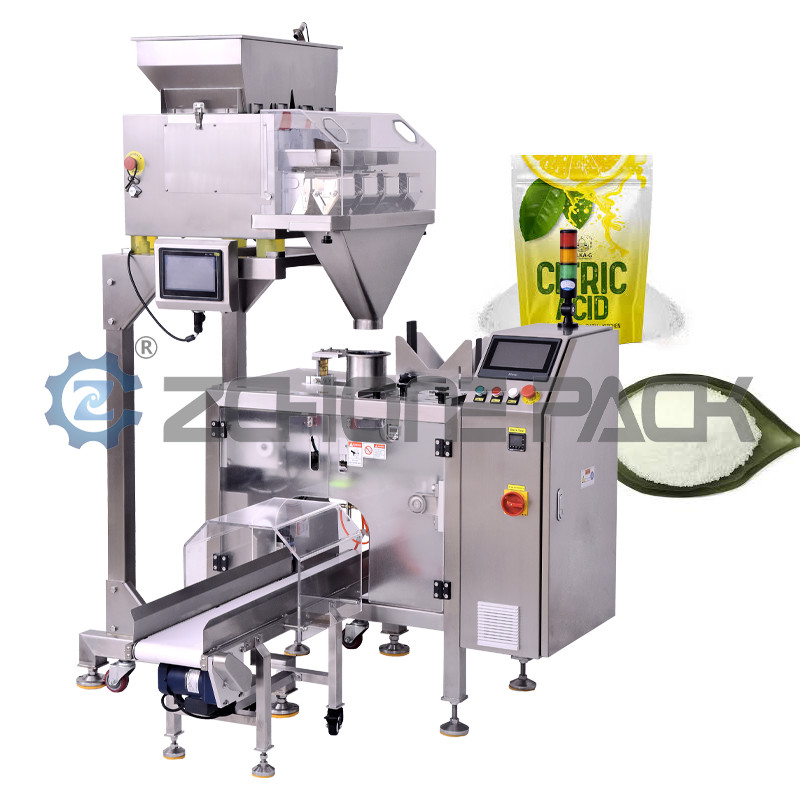

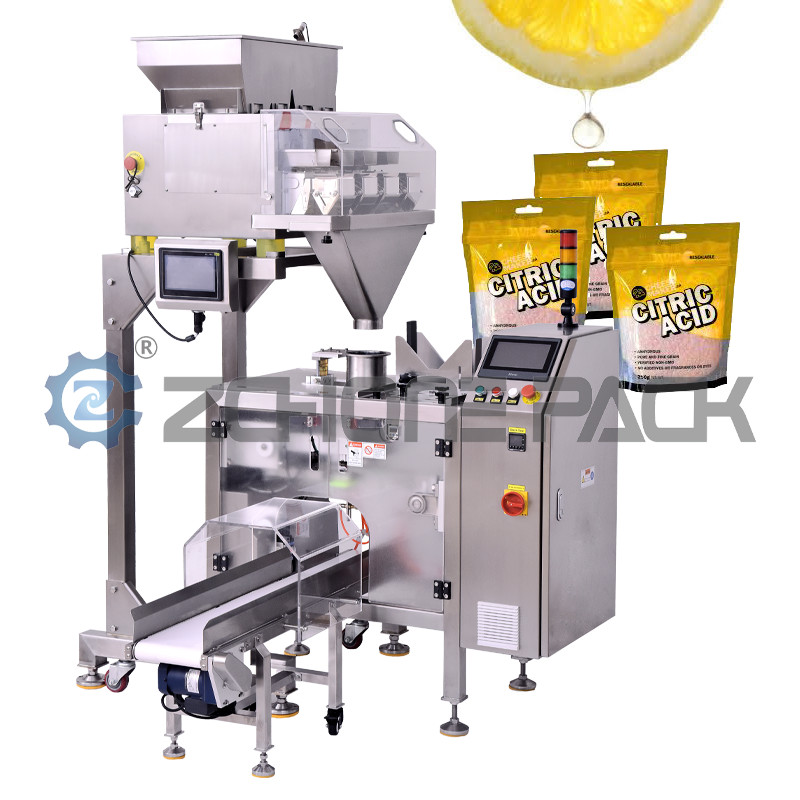

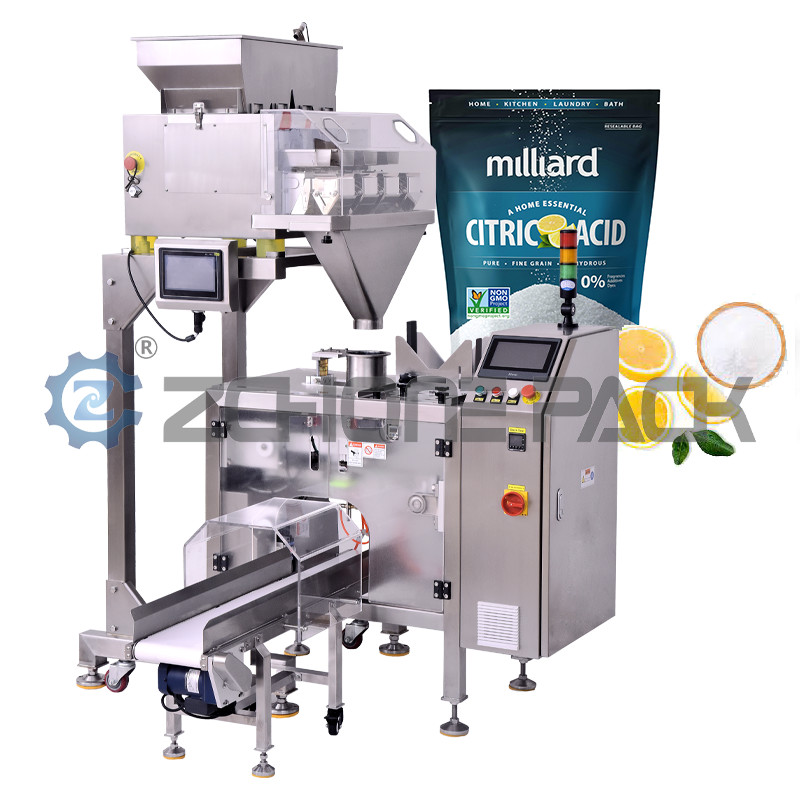

Lemon Acid Sachet Packaging Machine Mini Doypack Packing Machine
Lemon Acid Sachet Packaging Machine is a machine specially used for bagging citric acid or similar powdery or granular products. It can automatically perform the following operations:
Bag supply: The citric acid bag packaging machine automatically supplies bags, usually using pre-made plastic or paper bags.
Filling: Citric acid is dispensed accurately into each bag. The machine will typically use a metering device to ensure that each bag contains the correct amount of citric acid. The filling method can be realized by vibration device, screw conveying or vacuum suction.
Sealing: Once the bag is filled with citric acid, the packaging machine automatically performs the sealing operation. Common sealing methods include heat sealing, pressure sealing or ultrasonic sealing technologies. These sealing methods can ensure the sealing and freshness of the product.
Discharge and arrangement: The packaged bags can be arranged through conveyor belts or other devices and discharged in an appropriate manner. This allows packaged citric acid products to be easily stored, transported and sold.
The design of the citric acid bag packaging machine can be customized according to specific production needs and packaging requirements. It improves packaging efficiency, reduces labor costs, and ensures product consistency and quality.
Machine Specification:
Item | 200 | 300 | 430 |
Bag Material | Multilayer Composite Premade Bag (e.g.: PET/PE) | ||
Bag size | 100mm≤L≤200mm | 100mm≤L≤300mm | 100mm≤L≤430mm |
70mm≤W≤150mm | 80mm≤W≤300mm | 80mm≤W≤300mm | |
Bag Type | 3 Side Seal Bag, Stand-up Bag | ||
Upgradable Bag Type | N/A |
Gusset Bag, Zipper Bag, Flat Bottom Pouch (Need additional purchase of functional device) |
|
Speed | 0~26bags/min | 0~15bags/min | |
Sealing Type | Plain weave | Straight grain, pitch is 1mm (Optional reticulate) | |
Sealing Width | 8mm | 10mm(5--20mm can be customized) | |
Voltage | 220V, Single-phase, 50/60HZ, 1KW | 220V, Single-phase, 50/60HZ, 1.2KW | |
Air Pressure | 0.65Mpa | ||
Air Consumption | 0.2m³/min | 0.3m³/min | |
Standard machine, no additional function | |||
Body Dimension | 1080*535*1010mm | 1770*600*1230mm | 1770*600*1360mm |
Packing Dimension | 1240*670*1320mm | 1860*710*1550mm | 1860*710*1650mm |
Export non-fumigation wooden case |
(We can provide you with exclusive packaging machine customization services according to your needs! Of course,If you need, we can also provide you with customized bag service)
