ISO Powder Stand Up Pouch Machine , 2.5KW Granule Liquid Powder Pouch Packing Machine

  • ISO Powder Stand Up Pouch Machine , 2.5KW Granule Liquid Powder Pouch Packing Machine
  • ISO Powder Stand Up Pouch Machine , 2.5KW Granule Liquid Powder Pouch Packing Machine
  • ISO Powder Stand Up Pouch Machine , 2.5KW Granule Liquid Powder Pouch Packing Machine
  • ISO Powder Stand Up Pouch Machine , 2.5KW Granule Liquid Powder Pouch Packing Machine
Place of Origin Guangdong
Brand Name ZCHONE PACK
Certification ISO，CE
Model Number ZC-X8200
Minimum Order Quantity 1set
Price $18000
Packaging Details Standard export wooden case packaging
Delivery Time 15
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1/sets/15day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Stand Up Pouch Packing Machine Application Food, Beverage, Commodity, Machinery & Hardware
Applicable Industries Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Food Shop, Energy & Mining, Food & Beverage Shops, Other, Advertising Company Packaging Type Stand-up Pouch, Bags, Pouch
Warranty 1 Year Warranty Of Core Components 1 Year
High Light

ISO Stand Up Pouch Machine

,

Powder Stand Up Pouch Machine

,

2.5KW Granule Pouch Packing Machine
You can tick the products you need and communicate with us in the message board.
Packing Machine Type
Stand up Pouch Powder Packing Machine
Standup Pouches Granule Packing Machine
Stand Up Bag Liquid Packing Machine
Leave a Message
Packing Machine Type
Product Description

Automatic Stand Up Doypack Bag Grain Granules Liquid Powder Packing Machine





Machine Specification:

Item ZC-X8200 ZC-X8250 ZC-X8300
Packing speed MAX 60 bags/min,depending on the quality of the packaging film,packaging materials packaging weight etc.
Bag size (L)100-300mm (W)70-200mm (L)100-350mm (W)130-250mm (L)150-450mm (W)200-300mm
Bag type Premede bags,Stand-up bag,four-side sealed bag,three-side sealed bag,special-shaped bag
Weighing range 10g-1kg 10g-2kg 10g-3kg

Measurement

accuracy

 *≤±0.5~1%, depending on the measuring equipment & materials.
Maximum bag width 200mm 250mm 300mm
Gas consumption 0.8Mpa 0.3m3/min (Supply by user)
Total Powder/Voltage 2.5KW 380V 50/60Hz 2.5KW 380V 50/60Hz 3.7KW 380V 50/60Hz
Air compressor Not less than 1CBM
Dimension L1900*W1400*H1450 L1900*W1400*H1450 L2000*W1500*H1550
Machine Weight 1300kg 1400kg 1500kg
Work flow Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→ Auxiliary→Exhaust→Heat sealing→Forming and output products.
Applicable scope Granular type: crystal monosodium glutamate, granular drug, capsule, seeds, chemicals, sugar, chicken essence, melon seeds, nut, pesticide, fertilizer, etc
Block material: bean, rice, coffee bean, biscuits, cake, dry fruits, candy, red jujube, cereal, chocolate, nuts, peanut, etc
Powder type: milk powder, glucose, monosodium glutamate, seasoning, washing powder, chemical materials, fine white sugar, pesticide, fertilizer, etc

(We can provide you with exclusive customized services according to your needs!)



ISO Powder Stand Up Pouch Machine , 2.5KW Granule Liquid Powder Pouch Packing Machine 0

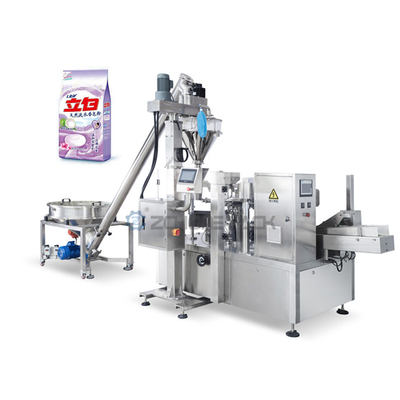

The automatic stand-up pouch packaging machine is an automatic equipment specially used for packaging stand-up pouches with high appearance requirements. It completes a series of actions such as opening, printing, filling and sealing of the packaging bags through multiple stations.



ISO Powder Stand Up Pouch Machine , 2.5KW Granule Liquid Powder Pouch Packing Machine 1

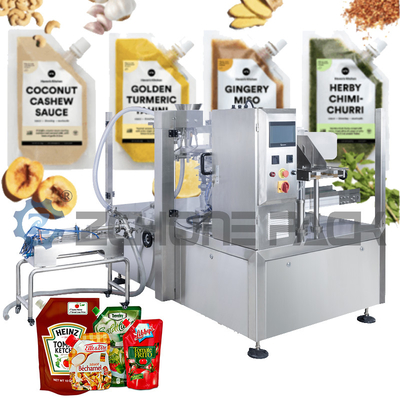

Fully automatic stand-up pouch packaging machine is suitable for all kinds of granular, liquid, slurry, flake, powdery materials, and is widely used in food, medicine, beverage, chemical industry, agriculture, hardware, toys and other industries.



ISO Powder Stand Up Pouch Machine , 2.5KW Granule Liquid Powder Pouch Packing Machine 2

Q1:Do you have manual or operation video for us to know more about the machine?

Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make oftesting the material from our packaging machine if your packing goods easier for us to find from our local market.



Q2:Is engineer available to serve oversea?

Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.



Q3:How can we make sure about the machine quality after we put the order?

Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.



Q4:Will you provides the door to door service?

Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.
